点击放大查看

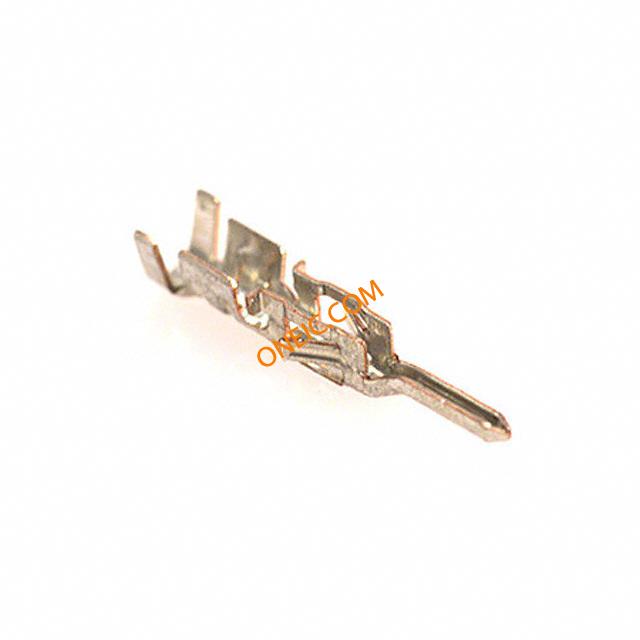

0430310007
| 制造商 | Molex, LLC |
| 描述 | Contact M Crimp ST Cable Mount Bag Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 20-24AWG TIN Contact; male; 0.205÷0.519mm2; 20÷24AWG; Micro-Fit 3.0; tinned |
| 分类 |
商业参数
| 交货时间 | 20 Days | 子类别 | Connector Contact |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 5 A |
| 最小供电电压 | 250VAC | ||
机械参数
| 深度 | 2.54 mm | 间距 | Not Required mm |
| 重量 | 0.08 g | 包装方式 | Bag |
| 导线线规 | 20-24 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Tin | 安装样式 | Cable |
| 封装形式 | in bulk | 触头材料 | Phosphor Bronze |
| 壳体材料 | Not Required | 总长度 | 12.4 mm |
| 包装数量 | 12000 | 连接器 - 电缆 | contact |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 接触镀层厚度 | 40µin (1.02µm) | 线规或范围 - mm² | 0.205...0.519mm2 |
| 触点材料 - 镀层 | tinned | ||
产品信息
| SPG | 12000 | 类型 | Power |
| 连接器性别 | M | 适配器系列 | Micro-Fit 3.0 |
| 单元数量 | 1 | 行业别名 | 43031-0007, 430310007 |
| 工具类型/特性 | MX-63812-0800, MX-63819-0000 | 适用产品/相关产品 | 0430310001 |
环境参数
| 工作温度 | -40C to 105C | ||
相关型号
0436400201
molex
Conn Housing M 2 POS 3mm Crimp ST Cable Mount Bag CONN PLUG 2POS 3MM SINGLE ROW Plug; wire-board; male; 3mm; PIN:2; Series: Micro-Fit 3.0; 5A
0436400200
molex
Conn Housing PL 2 POS 3mm Crimp ST Cable Mount Bag Conn Housing M 2 POS 3mm Crimp ST Cable Mount Bag CONN PLUG 2POS 3MM SGL PANEL MNT Plug; wire-board; male; 3mm; PIN:2; Series: Micro-Fit 3.0; 5A
0430200201
molex
Conn Housing PL 2 POS Crimp ST Cable Mount Bag CONN PLUG 2POS 3MM VERT DUAL Conn Housing PL 2 POS 3mm Crimp ST Cable Mount Bag
0430200400
Molex, LLC
Buy now, ships today. 0430200400 - 4 Position Rectangular Housing Connector Plug Black 0.118" (3.00mm) from Molex. View datasheets, pricing and availability from DigiKey now!
0011030043
molex
Connector Accessories Extraction Tool Extraction Tool Handtool Type TOOL HAND EXTRACT MICROFIT 3.0
0430200200
molex
Conn Housing PL 2 POS Crimp ST Panel Mount Bag CONN PLUG 2POS 3MM DUAL PNL MNT Conn Housing PL 2 POS 3mm Crimp ST Bag Plug; wire-board; male; 3mm; PIN:2; Series: Micro-Fit 3.0; UL94V-0
0638120800
molex
INSERTION TOOL Insertion Tool For Micro-Fit 3.0 Crimp Terminal INSERTION TOOL 20-30 AWG CRIMP
43515-0001
Molex
Headers & Wire Housings Obsolete
0638190000
Molex
Hand Crimp Tool TOOL CRIMP 20-30AWG MICROFIT 3.0 Connector Accessories Hand Crimp Tool Tool: for crimping; terminals; 0,05÷0,12mm2,0,2÷0,5mm2

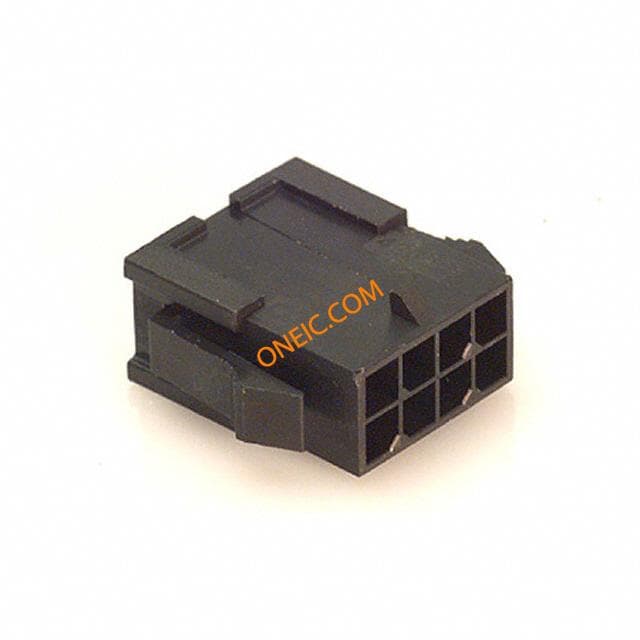

0430200800
Molex
Conn Housing M 8 POS 3mm Crimp ST Cable Mount Bag CONN PLUG 8POS 3MM DUAL PNL MNT Plug; wire-board; male; 3mm; PIN:8; Series: Micro-Fit 3.0; UL94V-0
0640160201
Molex
Service Grade Hand Crimp Tool TOOL CRIMP CGRD KK MICROFIT SPOX

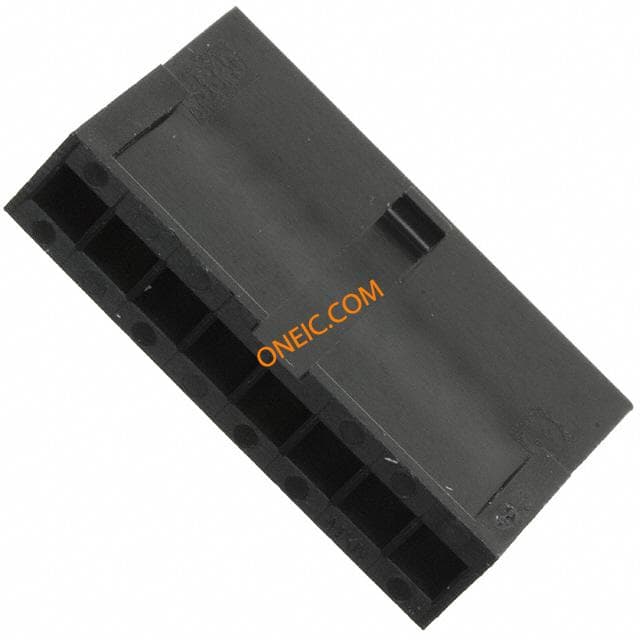

43640-0801
Molex Connector Corporation
CONN PLUG 8POS 3MM SINGLE ROW Headers & Wire Housings 3MM MICRO-FIT Plug House 8 CKT Conn Housing PL 8 POS 3mm Crimp ST Bag
43020-1401
Molex Connector Corporation
CONN PLUG 14POS 3MM VERT DUAL 3.0mm,MicroFit,plug,2row,freehang,14w Headers & Wire Housings 14CKT PLUG HSG FREE HANGING DR 3.00mm Pitch Micro-Fit 3.0™ Plug Housing, Dual Row, without Panel Mount Ears, 14 Circuits PLUG W/EARS; FREE HANGING; 14 CIRCUITS Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 14 路 直 公 压接连接器外壳
43020-1600
Molex Connector Corporation
CONN PLUG 16POS 3MM DUAL ROW 16way microfit 3mm 2row panel mount plug Headers & Wire Housings PLUG DUAL ROW 16P Conn Housing PL 16 POS 3mm ST Bag Conn Housing PL 16 POS 3mm Crimp ST Bag PLUG, PANEL MOUNT, 16WAY MICROFIT3.0PLUGDRPNLMNT16CKT Male contact housing dual row Pitch3 mm Poles 2 x 8 Micro-Fit, 43020-1600, Molex Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 16 路 直 公 面板安装 压接连接器外壳

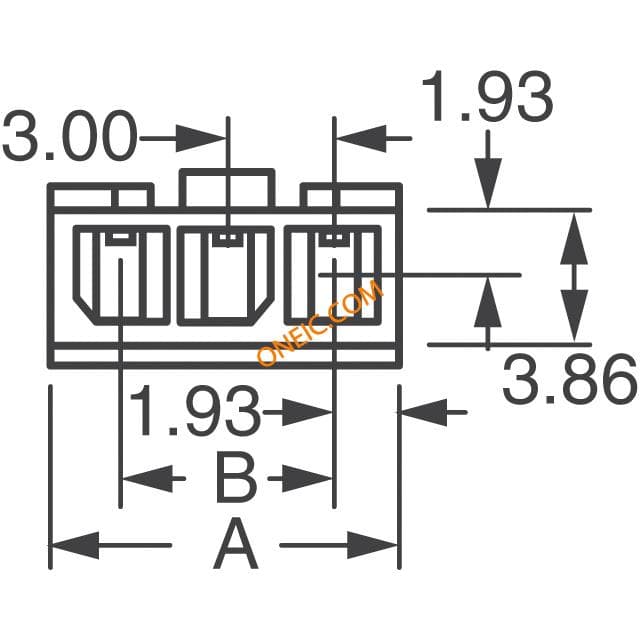

43640-0901
Molex Connector Corporation
CONN PLUG 9POS 3MM SINGLE ROW Headers & Wire Housings 3MM MICRO-FIT Plug House 9 CKT Conn Housing PL 9 POS 3mm Crimp ST Bag
43640-1000
Molex Connector Corporation
CONN PLUG 10POS 3MM SGL PANEL MT 10 way 1 row panel mount plug,3mm pitch Headers & Wire Housings 3MM MICRO-FIT Plug House 10 CKT Conn Housing PL 10 POS 3mm Crimp ST Bag Male contact housing single row Pitch3 mm Poles 1 x 10 Micro-Fit, 43640-1000, Molex Molex MICRO-FIT 3.0 系列 1 行 3mm 节距 10 路 直 公 压接连接器外壳
43640-1100
Molex Connector Corporation
CONN PLUG 11POS 3MM SGL PANEL MT Headers & Wire Housings 3MM MICRO-FIT Plug House 11 CKT Conn Housing PL 11 POS 3mm Crimp ST Bag
43640-0701
Molex Connector Corporation
CONN PLUG 7POS 3MM SINGLE ROW Headers & Wire Housings 3MM MICRO-FIT Plug House 7 CKT HEADER, 3.0MM, 7WAY

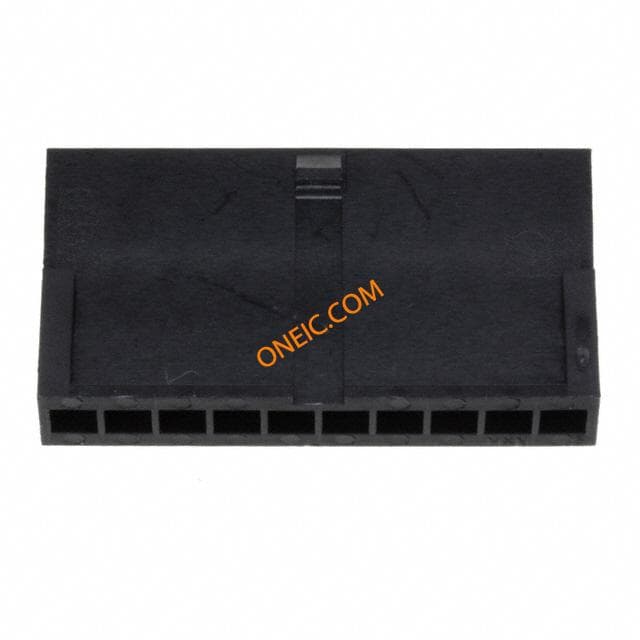

43640-1001
