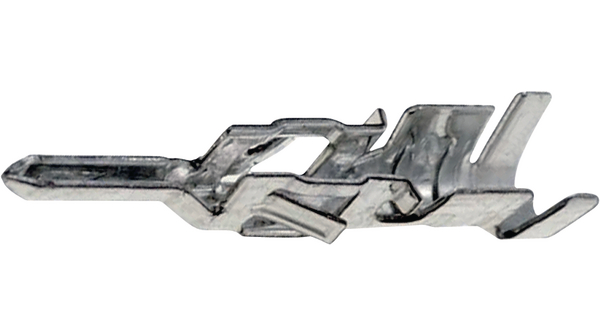

43031-0010
| 制造商 | Molex, LLC |
| 描述 | Contact M Crimp ST Cable Mount Bag Male crimp contact,26-30 awg Headers & Wire Housings MALE 26-30 AWG BULK tin Contact PIN Crimp ST Cable Mount Bag CONTACT, PIN, 26AWG TO 30AWG, CRIMP CONTACT, PIN, 30-26AWG, CRIMP Micro-Fit 3.0 Crimp Terminal, Pin, w/Tin/Brass alloy plate contact, 26-30 AWG Crimp pin Male 30...26 AWG, 43031-0010, Molex Molex MICRO-FIT 3.0 系列 公 压接接线端子, 压接, 镀锡触点 |
| 分类 |
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0430310010 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 12000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 250 V | 接触电阻 | 10mΩ |
| 最大额定电流 | 3 A | ||
机械参数
| 重量 | 0.006 | 导线线规 | 26-30 AWG |
| 端接方式 | Crimp | 触点尺寸 | :26 |
| 触头类型 | Signal | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Tin | 触头材料 | Phosphor Bronze |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Tin | 接触件端接 | :Crimp |
| 线规或范围 - AWG | :30AWG | 线规或范围 - mm² | :0.12m² |
| 外径-未扩张 | :1.52mm | ||
产品信息
| 连接器性别 | M | 系列 | 43031 |
| 产品子类型 | Contacts | 适用产品/相关产品 | :Micro-Fit 3.0 Connectors |
环境参数
| 工作温度 | +105°C | ||
