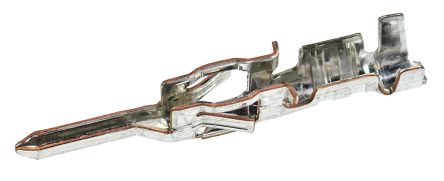

43031-0004
| 制造商 | Molex, LLC |
| 描述 | Crimp,male,Sn plated,phos,26-30AWG,reel Headers & Wire Housings MF 3.0 TERM 26-30G M Reel of 12000 Contact PIN Crimp ST Cable Mount Reel Micro-Fit 3.0 Connectors MALE 26-30 AWGREEL 12k Micro-Fit3.0ConnectorsMALE26-30AWGREEL12k Crimp pin, reel Male 30...26 AWG, 43031-0004, Molex Molex MICRO-FIT 3.0 系列 公 压接接线端子, 压接, 镀锡触点 |
| 分类 |
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0430310004 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 12000 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 接触电阻 | 10mΩ |
| 最大额定电流 | 3 A | ||
机械参数
| 包装方式 | Reel | 导线线规 | 30-26 |
| 端接方式 | Crimp | 连接器类型 | 公插 |
| 接触镀层 | Tin | 触头材料 | Phosphor Bronze |
| 端接排数 | 压接 | 端接样式 | Crimp |
| 线规 - 端部 | 30 | 第一触头极性 | Pin (Male) |
| 第一连接器极性 | Male | 线规或范围 - AWG | 30...26 AWG |
| 外管直径（最大） | 1.85 | ||
产品信息
| 连接器性别 | Male | 系列 | 43031 |
| 产品子类型 | Contacts | 基础产品编号 | 43031 |
环境参数
| 工作温度 | +105°C | ||
