点击放大查看
43025-2200
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 22 POS 3mm Crimp ST Bag 2 x 11 way receptacle Micro-Fit Headers & Wire Housings 22 CKT RECEPTACLE RECEPTACLE, 22WAY .188 micro-fit 3.0 receptacle housing, dual row, 22 circuits Female contact housing dual row Pitch3 mm Poles 2 x 11 Micro-Fit, 43025-2200, Molex Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 22 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0430252200 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | :250V | 工作电压 | :250V |
| 接触电阻 | :10mohm | 介电强度 | :1500V/m |
| 最大额定电流 | 5 A | ||
机械参数
| 深度 | 14mm | 间距 | 3mm |
| 宽度 | 11.56mm | 长度 | 33.85mm |
| 重量 | 0.002 | 材料（通用） | :Polyester |
| 安装类型 | Straight | 安装样式 | Wire |
| 排数 | 2 | 壳体材料 | PET |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 22 | 位数 | :22 |
产品信息
| 连接器性别 | Female | 系列 | 43025 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | Micro-Fit 3.0 Receptacle | ||
环境参数
| 工作温度 | :105°C | ||
相关型号
46235-0001
molex
MICRO-FIT FEM. CRP, LOW FORCE,20-24,15AU Headers & Wire Housings 20-24FEM 15AU LW FRC Reel of 12000 CRIMP SOCKET, MF3.0 RMF, 24-20 AWG CRIMP, RECEPTACLE, 24-20AWG, REEL Headers & Wire Housings; 20-24 FEM; 15AU; Low Force Molex Micro-Fit RMF 系列 母 压接接线端子, 压接, 镀金触点
43030-0010
molex
Contact F Crimp ST Cable Mount Bag Female crimp contact,26-30 awg Headers & Wire Housings FEMALE TERM 26-30 Contact SKT Crimp ST Cable Mount Bag CONTACT, SOCKET, 30-26AWG CRIMP SOCKET, 26AWG, PK100 Micro-Fit 3.0 Crimp Term., Socket, w/Plated Tin/Brass Alloy Contact, 26-30 AWG, B Crimp socket Female 30...26 AWG, 43030-0010, Molex Molex MICRO-FIT 3.0 系列 母 压接接线端子, 压接, 镀锡镀镍触点
43030-0007
molex
Contact F Crimp ST Cable Mount Bag Female crimp contact,20-24 awg Headers & Wire Housings FEMALE TERM 20-24 Contact SKT Crimp ST Cable Mount Bag CRIMP SOCKET, PK100,20AWG CONTACT, CRIMP, SOCKET, 24-20AWG Micro-Fit 3.0 Crimp Terminal, Socket, with Tin (Sn) Plated Tin/Brass Alloy Contac Crimp socket Female 24...20 AWG, 43030-0007, Molex Molex MICRO-FIT 3.0 系列 母 压接接线端子, 压接, 镀锡镀镍触点

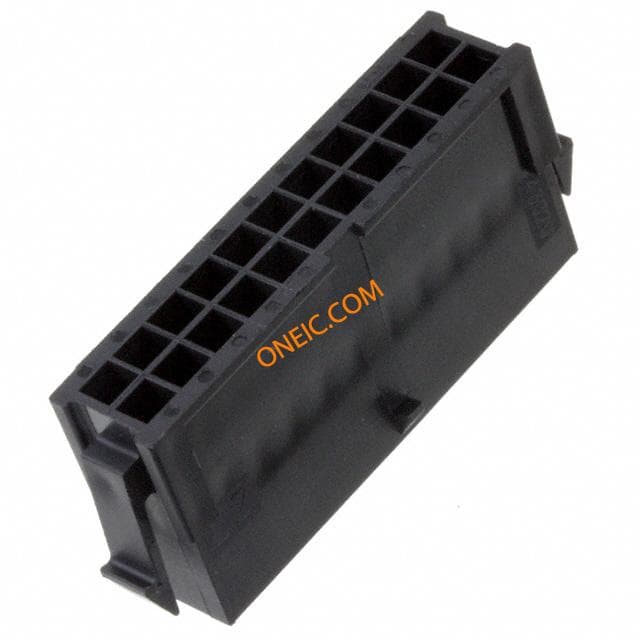

43020-2200
