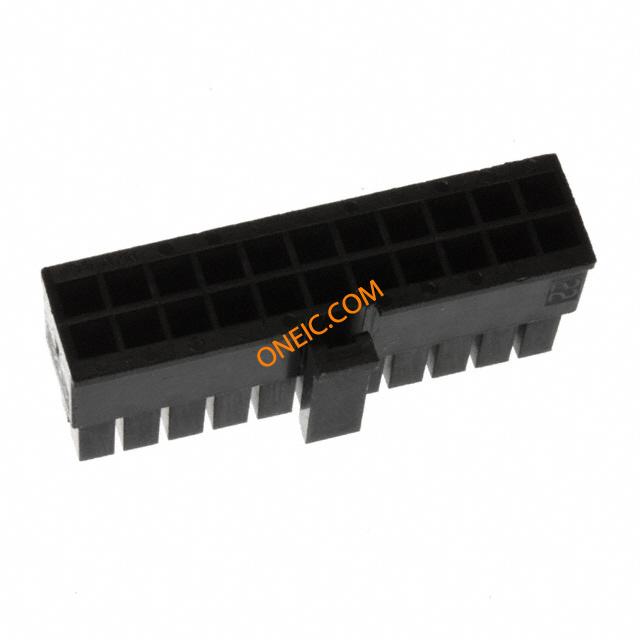

点击放大查看
0430252200
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 22 POS 3mm Crimp ST Bag CONN RECEPT 22POS 3MM DUAL ROW |
| 分类 |
商业参数
| 标准包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最小输入电压 | 600VDC|600VAC | 最小供电电压 | 600VDC/600VAC |
机械参数
| 颜色 | Black | 深度 | 14 mm |
| 间距 | 0.118" (3.00mm) | 高度 | 11.56 mm |
| 包装方式 | Bag | 排间距 | 0.118" (3.00mm) |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 排数 | 2 |
| 壳体材料 | Polyester | 总长度 | 33.85 mm |
| 触点数 | 22 | 接触件端接 | Crimp |
| 位数 | 22 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | ||
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0430300003
Molex, LLC
. 0430300003 - Socket Contact Gold 20-24 AWG Crimp Power from Molex. from now!

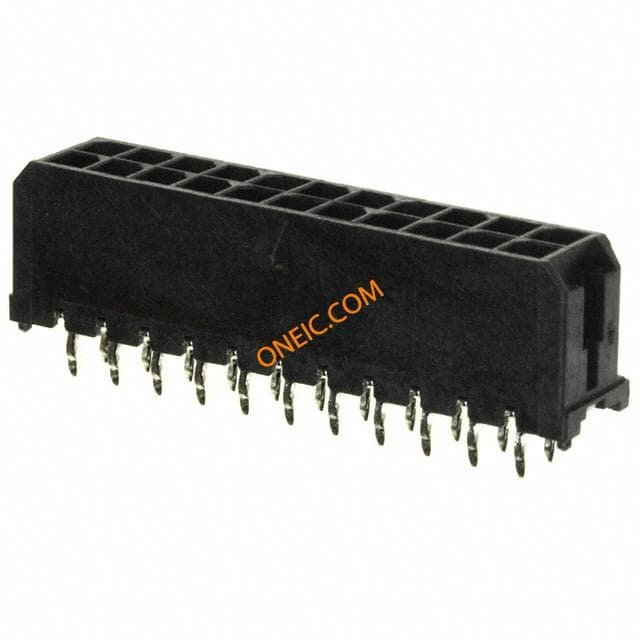

0430452212
Molex, LLC
. 0430452212 - Connector Header Through Hole 22 position 0.118" (3.00mm) from Molex. from now!
0430300001
Molex, LLC
. 0430300001 - Socket Contact Tin 20-24 AWG Crimp Power from Molex. from now!
0430300004
molex
Contact SKT Crimp ST Cable Mount T/R CONN TERM FEMALE 26-30AWG TIN TR Contact; female; 0.05÷0.128mm2; 26÷30AWG; Micro-Fit 3.0; tinned
0430300002
Molex, LLC
. 0430300002 - Socket Contact Gold 20-24 AWG Crimp Power from Molex. from now!
0430300006
molex
Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 26-30AWG GOLD CRIMP
0430300008
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 20-24AWG 15GOLD
0430300009
molex
Contact F Crimp ST Cable Mount Bag Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 20-24AWG GOLD Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 0.205÷0.519mm2; 20÷24AWG; Micro-Fit 3.0; crimped
0430300010
molex
Contact F Crimp ST Cable Mount Bag Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 26-30AWG TIN Contact; female; 0.05÷0.128mm2; 26÷30AWG; Micro-Fit 3.0; tinned

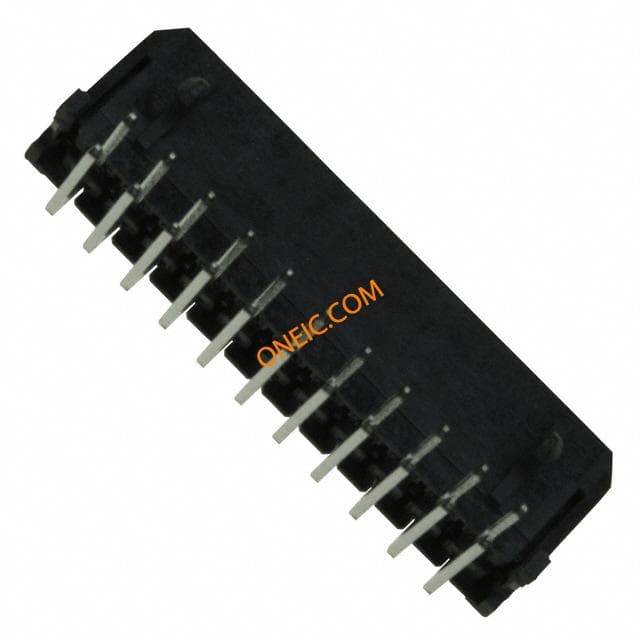

0430452200
Molex
Conn Wire to Board HDR 22 POS 3mm Solder RA Thru-Hole Tray CONN HEADER 22POS 3MM R/A TIN

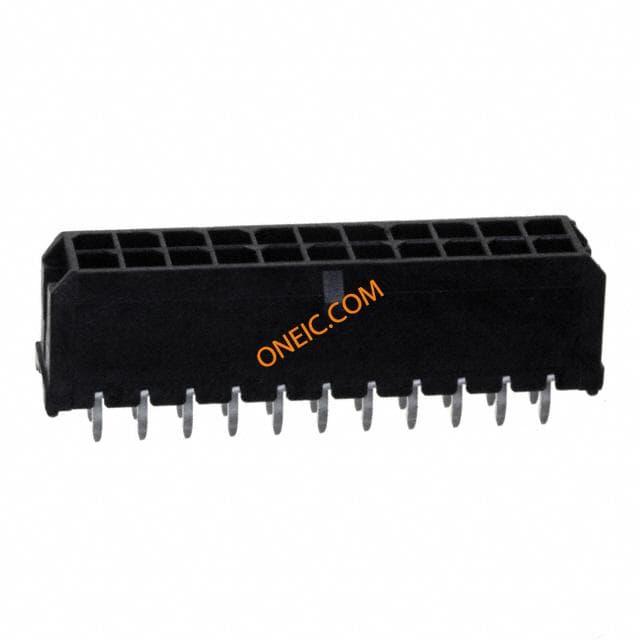

0430452213
Molex, LLC
. 0430452213 - Connector Header Through Hole 22 position 0.118" (3.00mm) from Molex. from now!

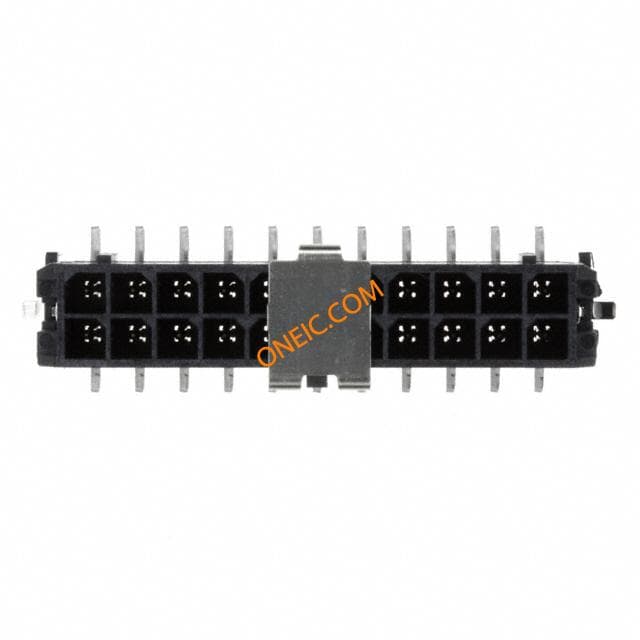

0430452219
Molex, LLC
. 0430452219 - Connector Header Surface Mount 22 position 0.118" (3.00mm) from Molex. from now!

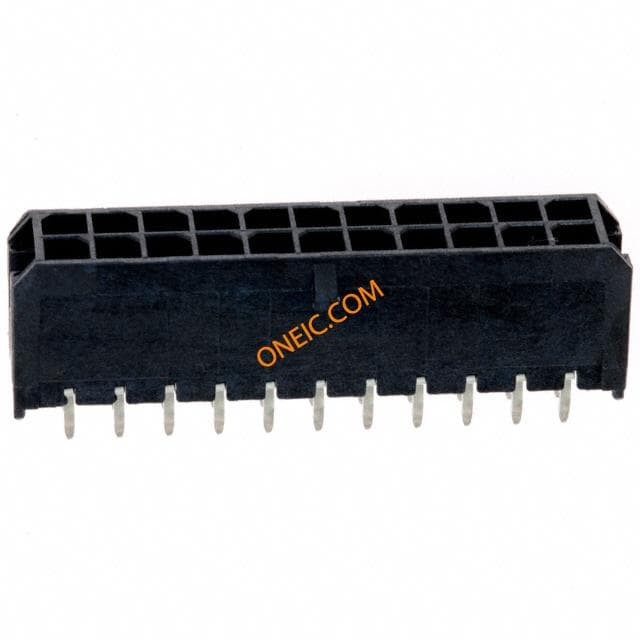

0430452214
Molex
Conn Wire to Board HDR 22 POS 3mm Solder ST Thru-Hole Tray CONN HEADER 22POS 3MM VERT GOLD

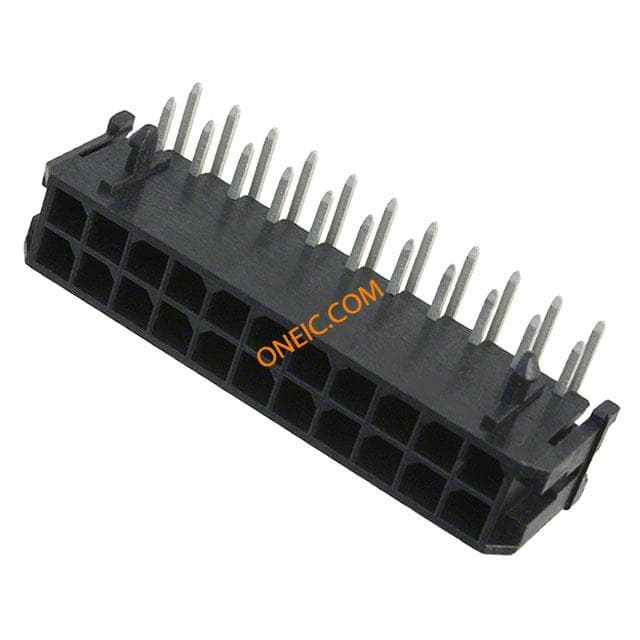

0430452201
Molex
Conn Wire to Board HDR 22 POS 3mm Solder RA Thru-Hole Tray CONN HEADER R/A GOLD 22CKT

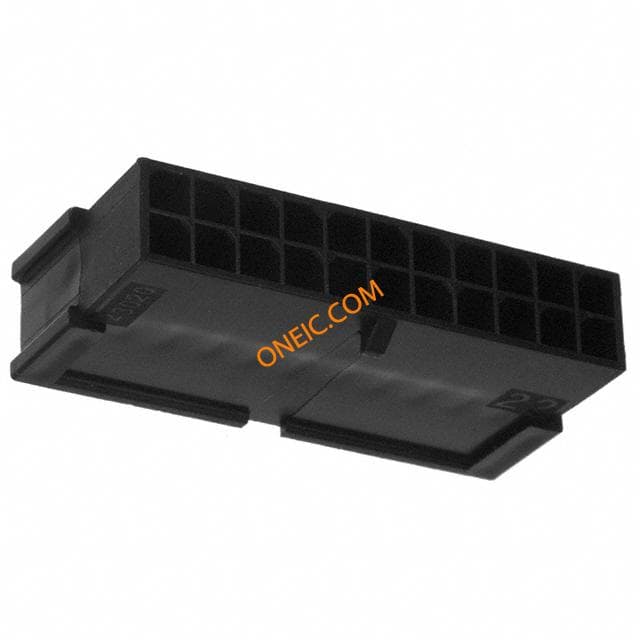

43020-2201
Molex Connector Corporation
CONN PLUG 22POS 3MM VERT DUAL Headers & Wire Housings 22CKT PLUG HSG FREE HANGING DR Conn Housing PL 22 POS 3mm Crimp ST Bag Connector; Micro-Fit 3.0; Plug; Free Hanging; 22 Circuit Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 22 路 直 公 面板安装 压接连接器外壳
43020-2200
Molex Connector Corporation
CONN PLUG 22POS 3MM DUAL ROW 2 x 11 way panel mount plug Micro-Fit Headers & Wire Housings 3MM MICRO-FIT 22 CKT Dual Row Conn Housing PL 22 POS 3mm Crimp ST Bag Male contact housing dual row Pitch3 mm Poles 2 x 11 Micro-Fit, 43020-2200, Molex Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 22 路 直 公 面板安装 压接连接器外壳
0462355001
Molex Inc
CONN TRM 15U 20-24AWG LUBRICATE
0462355002
Molex Inc
CONN TRM 30U 20-24AWG LUBRICATE
0462355004
Molex Inc
CONN TRM 30U 26-30AWG LUBRICATE

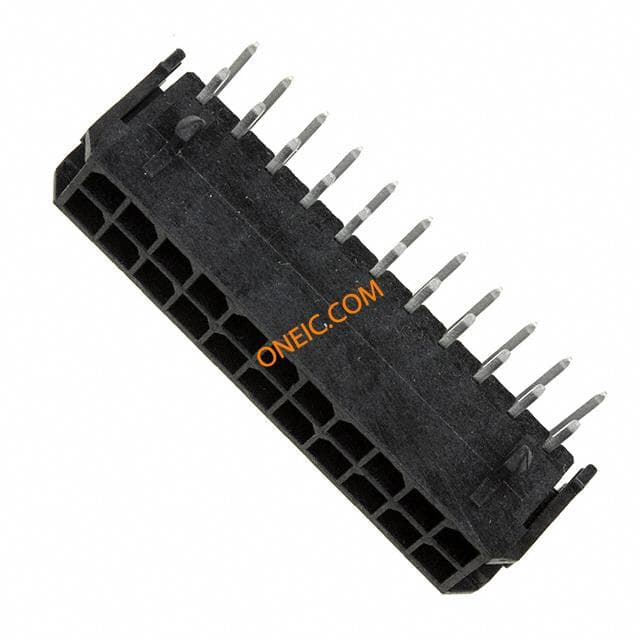

43045-2202
