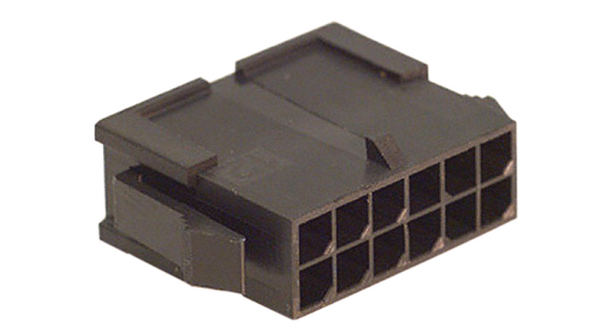

点击放大查看
43020-1200
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 12POS 3MM DUAL PNL MNT 12 way dual row panel mount plug,5A 3mm 3.00mm Pitch Micro-Fit 3.0™ Plug Housing, Dual Row, with Panel Mount Ears, 12 Circuits PLUG, PANEL MOUNT, 12WAY PLUG W/EARS; PANEL MOUNT; 12 Circuits Male contact housing dual row Pitch3 mm Poles 2 x 6 Micro-Fit, 43020-1200, Molex Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 12 路 直 公 面板安装 压接连接器外壳 |
| 分类 |
商业参数
| 标准包装数量 | 10 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 350 V ac/dc | 工作电压 | :250V |
| 接触电阻 | :10Mohm | 介电强度 | :1500V/m |
| 最大额定电流 | 5A | 连接器类型 - 电压输入 | Plug |
机械参数
| 颜色 | Black | 间距 | 0.118" (3.00mm) |
| 重量 | 0.004 | 材料（通用） | :Polyester |
| 包装方式 | Bulk | 排间距 | 0.118" (3.00mm) |
| 触头类型 | Male Pin | 安装类型 | Panel Mount, Snap-In |
| 连接器类型 | Plug | 紧固类型 | Locking Ramp |
| 排数 | 2 | 连接器颜色 | Black |
| 接触件端接 | Crimp | 位数 | 12 |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | :Plug |
| 系列 | :MicroFit | CAD图纸 | 3D CAD Model |
| 适用产品/相关产品 | :Micro-Fit 3.0 Crimp Terminals | ||
环境参数
| 工作温度 | +105°C | ||
