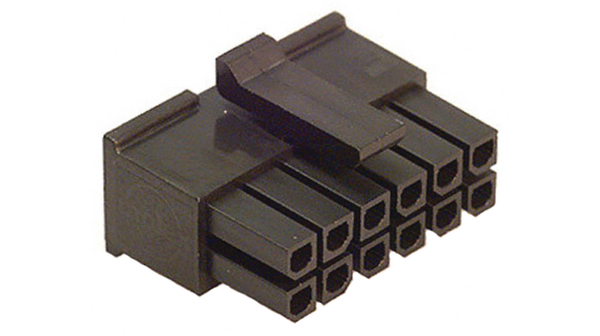

43025-1200
| 制造商 | Molex, LLC |
| 描述 | 12 way dual row receptacle,5A Headers & Wire Housings RECEPTACLE 12P DUAL ROW Conn Housing F 12 POS 3mm Crimp ST Cable Mount Bag RECEPTACLE, FREE, 12WAY Receptacle; 12; Dual; 0.118; Female; Polyester; Black; UL 94V-0 Female contact housing dual row Pitch3 mm Poles 2 x 6 Micro-Fit, 43025-1200, Molex Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 12 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0430251200 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 1500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | :250V | 工作电压 | :250V |
| 接触电阻 | :10Mohm | 介电强度 | :1500V/m |
| 最大额定电流 | 5 A | ||
机械参数
| 深度 | 14mm | 间距 | 3mm |
| 长度 | 18.85mm | 重量 | 0.002 |
| 材料（通用） | :Polyester | 安装类型 | Straight |
| 安装样式 | Wire | 排数 | 2 |
| 壳体材料 | PET | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 12 |
| 位数 | :12 | ||
产品信息
| 连接器性别 | Female | 系列 | 43025 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | Micro-Fit 3.0 Receptacle | ||
文档与媒体
相关型号
43030-0010
molex
Contact F Crimp ST Cable Mount Bag Female crimp contact,26-30 awg Headers & Wire Housings FEMALE TERM 26-30 Contact SKT Crimp ST Cable Mount Bag CONTACT, SOCKET, 30-26AWG CRIMP SOCKET, 26AWG, PK100 Micro-Fit 3.0 Crimp Term., Socket, w/Plated Tin/Brass Alloy Contact, 26-30 AWG, B Crimp socket Female 30...26 AWG, 43030-0010, Molex Molex MICRO-FIT 3.0 系列 母 压接接线端子, 压接, 镀锡镀镍触点
43045-1212
molex
Conn Wire to Board HDR 12 POS 3mm Solder ST Thru-Hole Tray Molex 43045 Series 3mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings 12 CKT VERT HEADER HEADER, VERTICAL, DUAL ROW, 12 WAY Microfit 3.0 Vert Thrhole DR HdrTin12Ckt Pin header dual row Pitch3 mm Poles 2 x 6 Micro-Fit, 43045-1212, Molex Molex MICRO-FIT 3.0 系列 3mm节距 12路 (2排) 直 PCB 针座, 焊接端接, 5A , 通孔
43030-0007
molex
Contact F Crimp ST Cable Mount Bag Female crimp contact,20-24 awg Headers & Wire Housings FEMALE TERM 20-24 Contact SKT Crimp ST Cable Mount Bag CRIMP SOCKET, PK100,20AWG CONTACT, CRIMP, SOCKET, 24-20AWG Micro-Fit 3.0 Crimp Terminal, Socket, with Tin (Sn) Plated Tin/Brass Alloy Contac Crimp socket Female 24...20 AWG, 43030-0007, Molex Molex MICRO-FIT 3.0 系列 母 压接接线端子, 压接, 镀锡镀镍触点
430451218
molex
Conn Wire to Board HDR 12 POS 3mm Solder ST SMD T/R 12P MIRCO FIT HEADER SMT 2 ROW

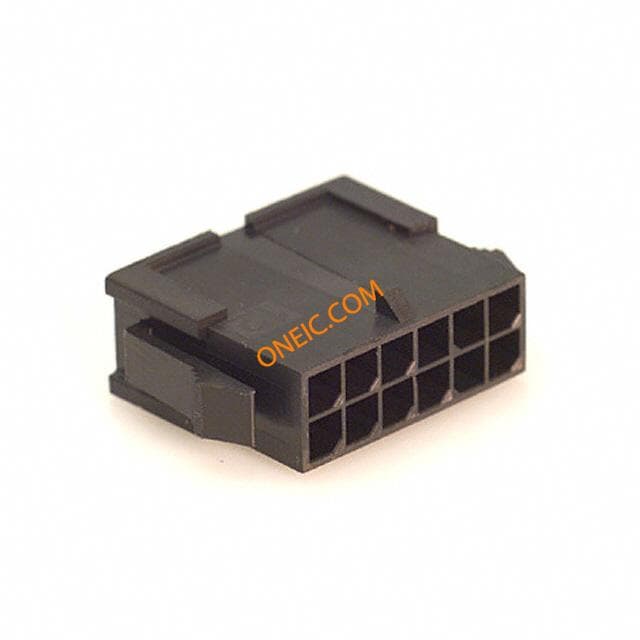

43020-1200
Molex Connector Corporation
CONN PLUG 12POS 3MM DUAL PNL MNT 12 way dual row panel mount plug,5A 3mm 3.00mm Pitch Micro-Fit 3.0™ Plug Housing, Dual Row, with Panel Mount Ears, 12 Circuits PLUG, PANEL MOUNT, 12WAY PLUG W/EARS; PANEL MOUNT; 12 Circuits Male contact housing dual row Pitch3 mm Poles 2 x 6 Micro-Fit, 43020-1200, Molex Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 12 路 直 公 面板安装 压接连接器外壳
43045-1209
Molex Connector Corporation
CONN HEADER 12POS RT ANG SMD TIN Molex 43045 Series 3mm Pitch 12 Way 2 Row Right Angle PCB Header, Solder Termination, 5A Headers & Wire Housings 12 CKT R/A SMT HDR Conn Wire to Board HDR 12 POS 3mm Solder RA SMD T/R Conn; Rect; Header; 12 Cir; PCB; MicroFit 3.0; Rt Angle; Dual; SMT; w/Tab; Tin Pin header dual row 90° SMD Pitch3 mm Poles 2 x 6 Micro-Fit, 43045-1209, Molex Molex MICRO-FIT 3.0 系列 3mm节距 12路 (2排) 直角 PCB 针座, 焊接端接, 5A , 表面安装

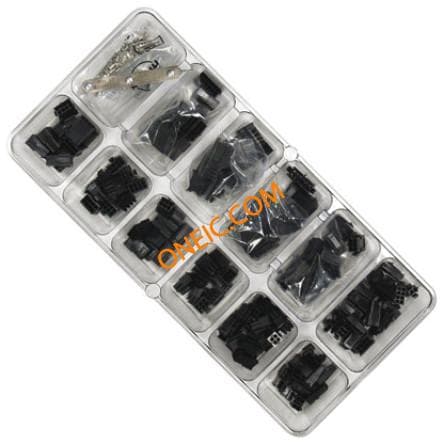

76650-3013
Molex
Micro-Fit 3.0 connector kit WtW KIT, MICRO-FIT 3.0, PANEL, 351PCS Design kit Micro-Fit, 76650-3013, Molex

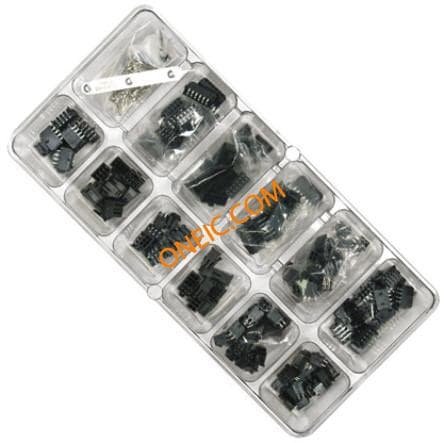

76650-3014
