点击放大查看

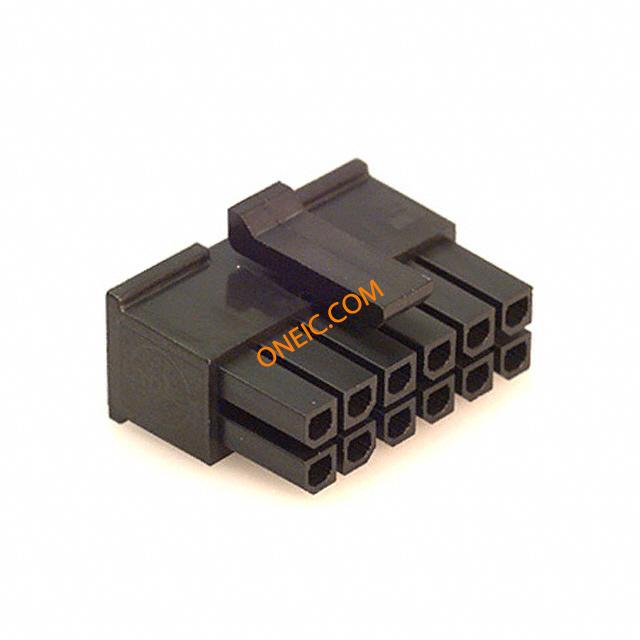

0430251200
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 12 POS 3mm Crimp ST Cable Mount Bag Conn Housing F 12 POS 3mm Crimp ST Cable Mount Bag CONN RECEPT 12POS 3MM VERT DUAL Plug; wire-board; female; 3mm; PIN:12; w/o terminals; 5A; UL94V-0 |
| 分类 |
商业参数
| 交货时间 | 36 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 5/Contact A |
| 最小输入电压 | 600VDC|600VAC | 最小供电电压 | 600VDC/600VAC |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Black | 深度 | 14 mm |
| 间距 | 3 mm | 高度 | 11.56 mm |
| 重量 | 1.56 g | 材料（通用） | polyester |
| 钻孔直径 | 15mm | 包装方式 | Bag |
| 排间距 | 0.118" (3.00mm) | 触头类型 | Female Socket |
| 柱间距 | 3mm | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 安装样式 | for cable |
| 排数 | 2 | 锁定特性 | lock |
| 壳体材料 | Polyester | 总长度 | 18.85 mm |
| 包装数量 | 3000 | 尺寸/外形 | see |
| 连接器 - 电缆 | plug | 触点数 | 12 |
| 接触件端接 | Crimp | 位数 | 12 |
| 第一连接器安装特征 | 2x6 | ||
产品信息
| SPG | 3000 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 适配器系列 | Micro-Fit 3.0 | 单元数量 | 1 |
| 行业别名 | 43025-1200, 430251200 | ||
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0430451200
Molex, LLC
. 0430451200 - Connector Header Through Hole, Right Angle 12 position 0.118" (3.00mm) from Molex. from now!

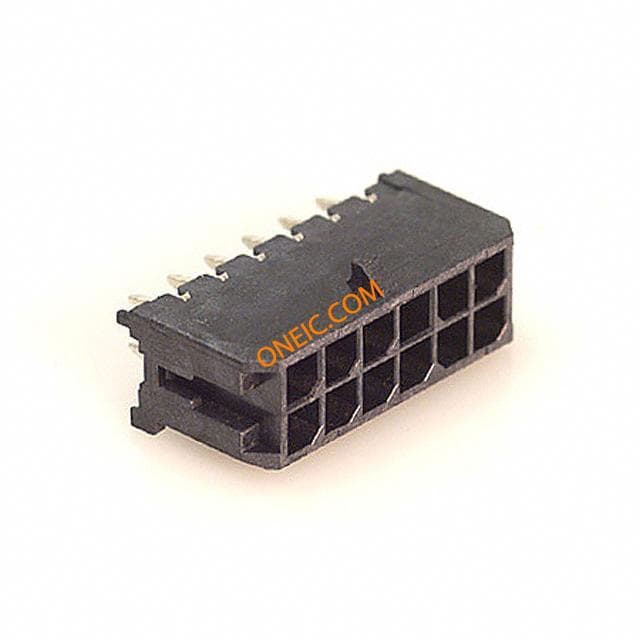

0430451214
Molex, LLC
. 0430451214 - Connector Header Through Hole 12 position 0.118" (3.00mm) from Molex. from now!

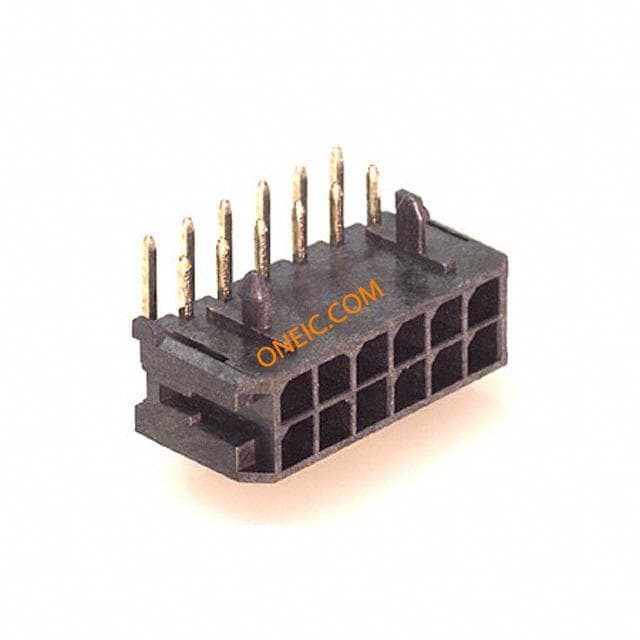

0430451202
molex
Conn Wire to Board HDR 12 POS 3mm Solder RA Thru-Hole Tray CONN HEADER 12POS 3MM R/A GOLD
0430300006
molex
Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 26-30AWG GOLD CRIMP

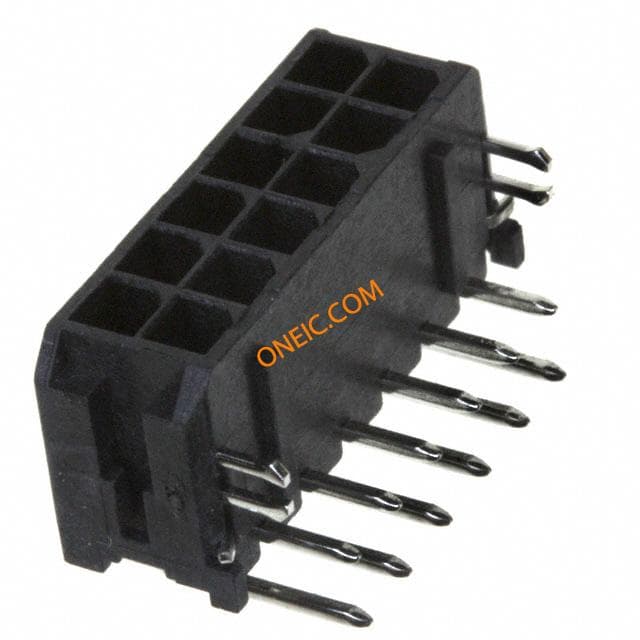

0430451221
molex
Conn Wire to Board HDR 12 POS 3mm Solder RA Thru-Hole Tray CONN HEADER 12PS 3MM R/A TIN
0430300008
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 20-24AWG 15GOLD
0430300010
molex
Contact F Crimp ST Cable Mount Bag Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 26-30AWG TIN Contact; female; 0.05÷0.128mm2; 26÷30AWG; Micro-Fit 3.0; tinned

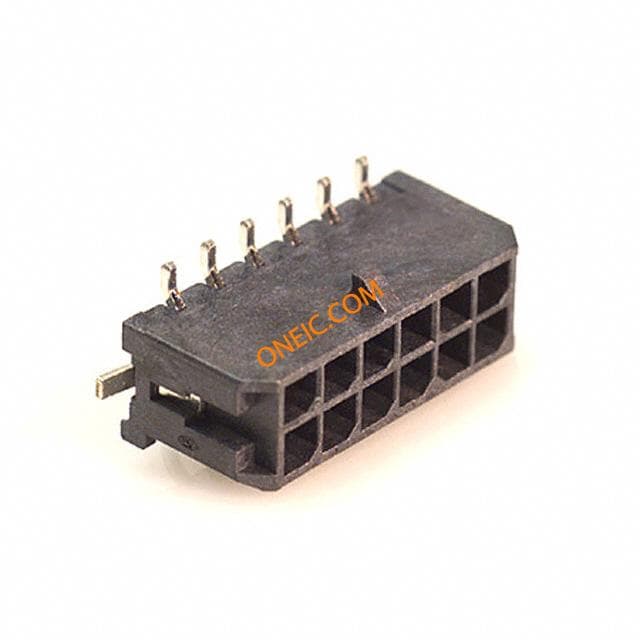

43045-1218
molex
Conn Wire to Board HDR 12 POS 3mm Solder ST SMD T/R CONN HEADER 12POS VERT SMD TIN Molex 43045 Series 3mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings VERTICAL HEADER 12 P HEADER, 12POS, 2ROW, 3MM MICROFIT3.0VHDR/NAILDRTIN12CKT Pin header dual row SMD Pitch3 mm Poles 2 x 6 Micro-Fit, 43045-1218, Molex Molex MICRO-FIT 3.0 系列 3mm节距 12路 (2排) 直 PCB 针座, 焊接端接, 5A , 表面安装

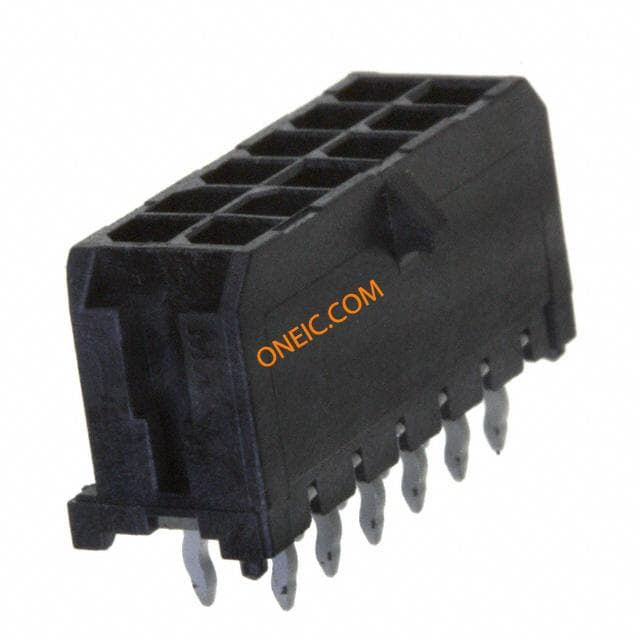

0430451213
Molex, LLC
. 0430451213 - Connector Header Through Hole 12 position 0.118" (3.00mm) from Molex. from now!

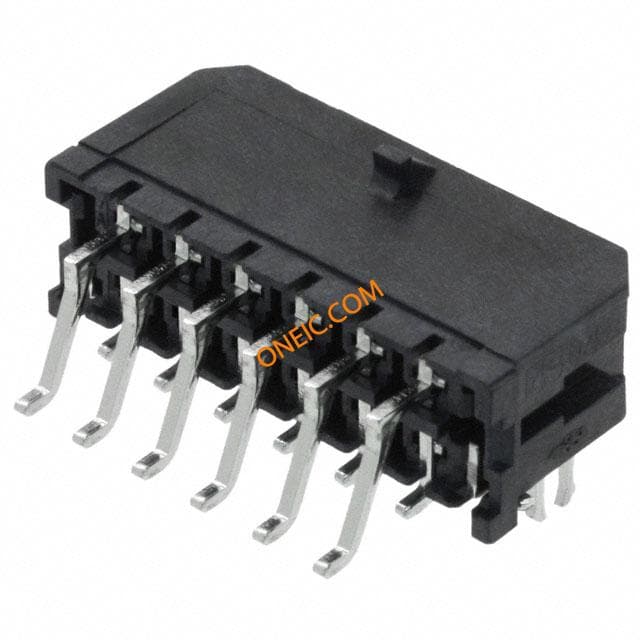

0430451206
Molex
Conn Wire to Board HDR 12 POS 3mm Solder RA SMD Embossed T/R CONN HEADER R/A SMT TIN 12CKT

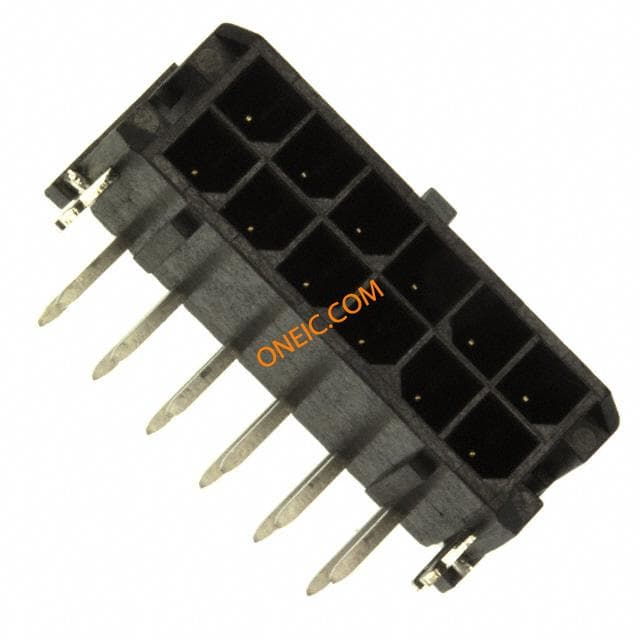

0430451222
Molex
Conn Wire to Board HDR 12 POS 3mm Solder RA Thru-Hole Tray CONN HEADER 12POS 3MM R/A GOLD
0430451212
Molex
Conn Wire to Board HDR 12 POS 3mm Solder ST Thru-Hole Tray CONN HEADER 12POS 3MM VERT TIN Socket; wire-board; male; 3mm; PIN:12; tinned; 5A; UL94V-0; 250V; THT
0430451201
Molex
Conn Wire to Board HDR 12 POS 3mm Solder RA Thru-Hole Tray CONN HEADER 12POS R/A GOLD SMD

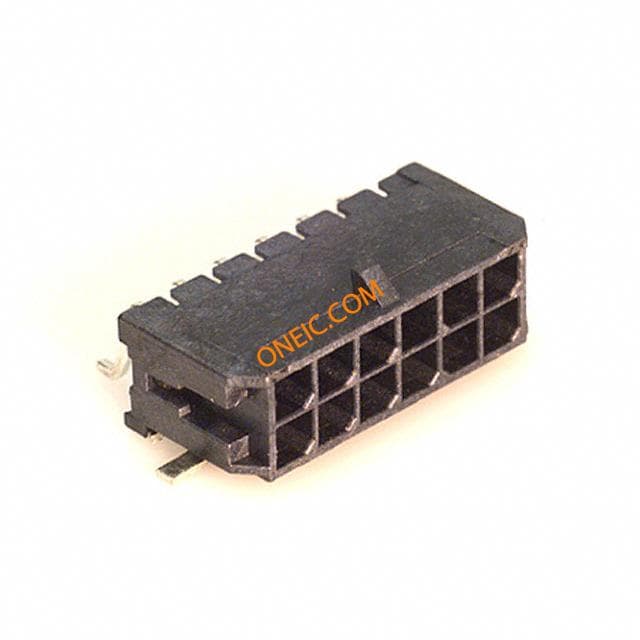

0430451209
Molex, LLC
. 0430451209 - Connector Header Surface Mount, Right Angle 12 position 0.118" (3.00mm) from Molex. from now!

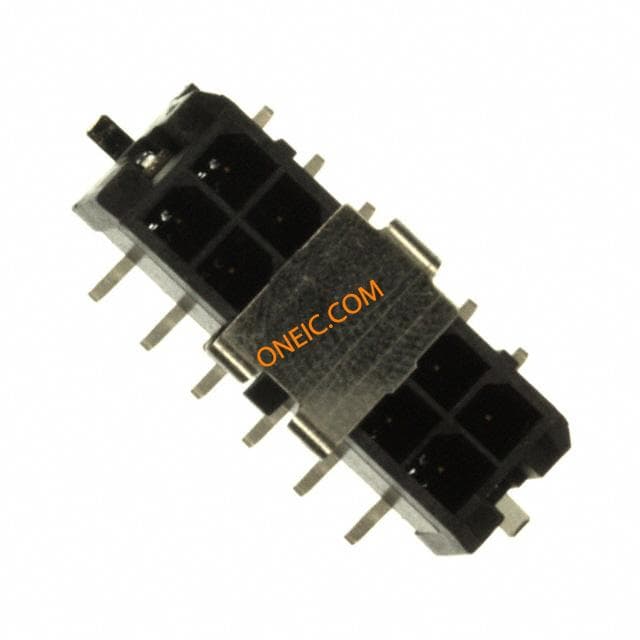

0430451219
Molex
Conn Wire to Board HDR 12 POS 3mm Solder ST SMD T/R CONN HEADER 12POS 3MM STR SMD AU
43020-1200
Molex Connector Corporation
CONN PLUG 12POS 3MM DUAL PNL MNT 12 way dual row panel mount plug,5A 3mm 3.00mm Pitch Micro-Fit 3.0™ Plug Housing, Dual Row, with Panel Mount Ears, 12 Circuits PLUG, PANEL MOUNT, 12WAY PLUG W/EARS; PANEL MOUNT; 12 Circuits Male contact housing dual row Pitch3 mm Poles 2 x 6 Micro-Fit, 43020-1200, Molex Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 12 路 直 公 面板安装 压接连接器外壳
43020-1201
Molex Connector Corporation
CONN PLUG 12POS 3MM VERT DUAL 3.0mm,MicroFit,plug,2row,freehang,12w Headers & Wire Housings 12CKT PLUG HSG DR Conn Housing PL 12 POS 3mm Crimp ST Bag MULTIPOLE CONNECTOR PLUG W/EARS; FREE HANGING; 12 CIRCUITS Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 12 路 直 公 压接连接器外壳
0462355004
Molex Inc
CONN TRM 30U 26-30AWG LUBRICATE

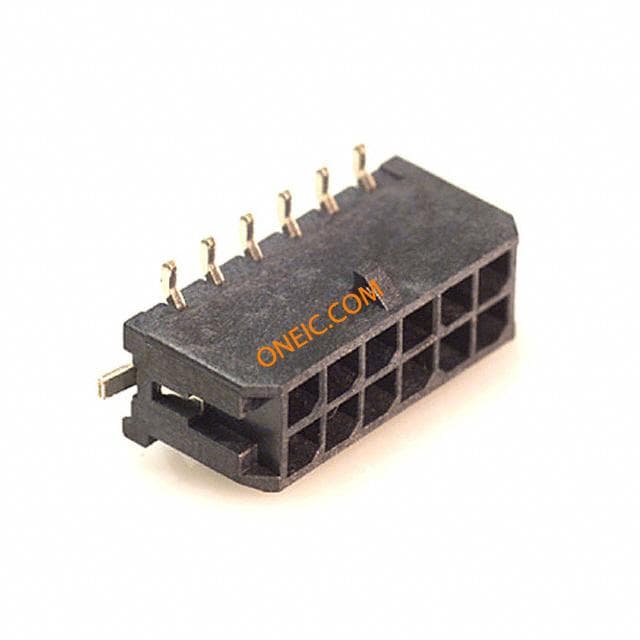

43045-1220
Molex Connector Corporation
CONN HEADER 12POS VERT SMD GOLD Molex 43045 Series 3mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings 12 CKT VERT SMT HDR Conn Wire to Board HDR 12 POS 3mm Solder ST SMD T/R CONNECTOR, HEADER, 12POS, 2ROW, 3MM Molex MICRO-FIT 3.0 系列 3mm节距 12路 (2排) 直 PCB 针座, 焊接端接, 5A , 表面安装

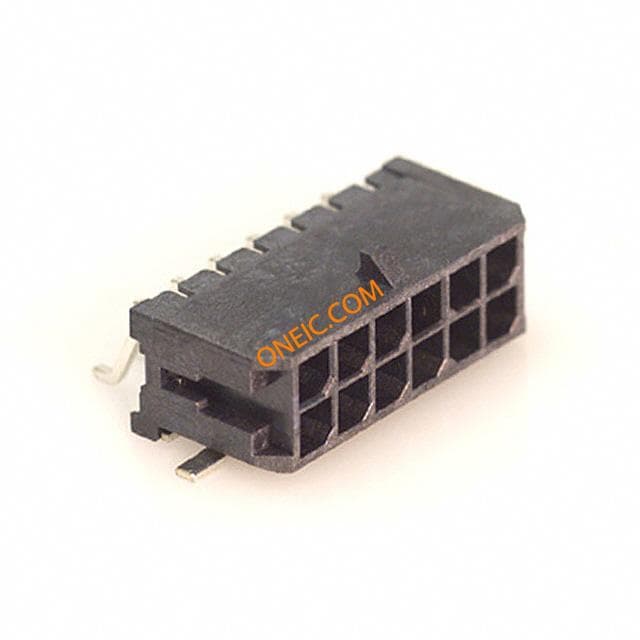

43045-1211
