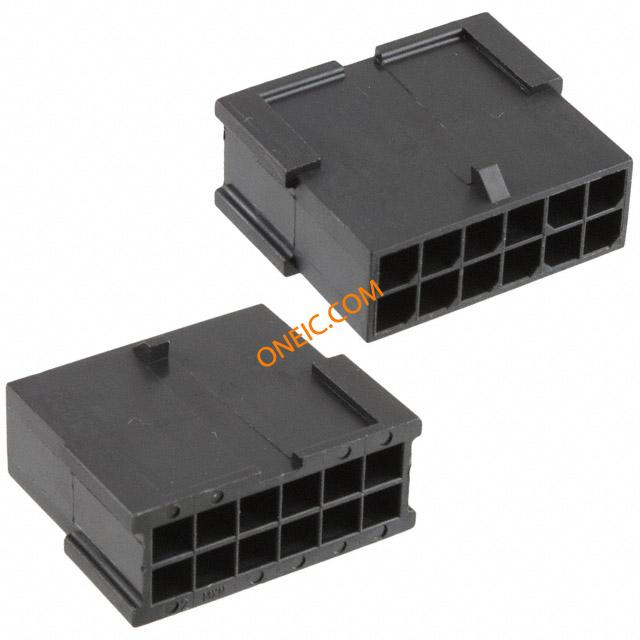

点击放大查看
43020-1201
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 12POS 3MM VERT DUAL 3.0mm,MicroFit,plug,2row,freehang,12w Headers & Wire Housings 12CKT PLUG HSG DR Conn Housing PL 12 POS 3mm Crimp ST Bag MULTIPOLE CONNECTOR PLUG W/EARS; FREE HANGING; 12 CIRCUITS Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 12 路 直 公 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0430201201 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 3000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 350 V | 最大额定电流 | 5 A |
| 连接器类型 - 电压输入 | Male | ||
机械参数
| 颜色 | Black | 深度 | 16.89mm |
| 间距 | 0.118" (3.00mm) | 宽度 | 9.65mm |
| 重量 | 0.00159 | 包装方式 | Bulk |
| 排间距 | 0.118" (3.00mm) | 触头类型 | Male Pin |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug |
| 紧固类型 | Locking Ramp | 排数 | 2 |
| 壳体材料 | PBT | 连接器颜色 | :Black |
| 触点数 | 12 | 接触件端接 | Crimp |
| 位数 | 12 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Plug Housing |
| 连接器性别 | Male | 系列 | 43020 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Wire Housings |
| 应用细节 | Power, Wire-to-Wire | 适用产品/相关产品 | Micro-Fit 3.0 Plug |
