点击放大查看

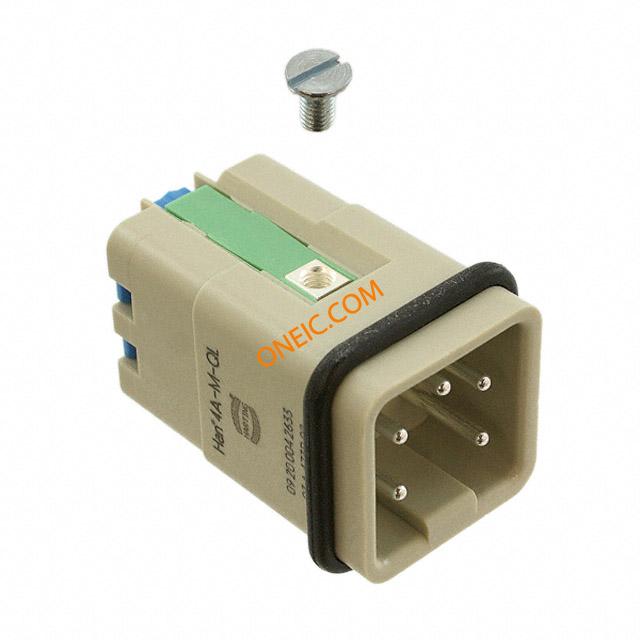

09200042633

制造商	HARTING Technology Group
描述	HAN 4A - MALE QUICK LOC 20-14AWG Heavy Duty Power Connectors 4+GND MALE INSERT QUICK LOCK TERM Han4A-Male-QuickLock20-14AWG Connector: HAN; male; Quick Lock; PIN:5; 4+PE; size 3A; snap-on; 10A Han A Male Insert-Screw: Han 4A - Male - Quick Lock 20-14 AWG Harting Han A 系列 2行 4针插头电源连接器
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	004 09 09-20-004-2633 20 2633	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

RoHS Compliant

材料阻燃等级

UL94 V-0

电气参数

额定电压

600V

最大额定电流

10A

机械参数

尺寸	3A	颜色	Gray
重量	0.02 kg	包装方式	Bulk
方向	直	基体材料	polycarbonate
安装类型	snap-on	连接器类型	Insert
排数	2	封装形式	size 3A
插入力	Male	触头材料	Copper Alloy
壳体材料	Polycarbonate (PC)	包装数量	10
尺寸/外形	3A	端接排数	快速锁定
端接样式	Push In with Lock	触点数	4 + PE
位数	4+Ground	线规或范围 - AWG	20-14
线规或范围 - mm²	0.5...2.5mm2	第一连接器安装特征	4+PE

产品信息

SPG	10	类型	CONNECTORS
连接器性别	Male	系列	HAN-A
产品子类型	Inserts	适配器系列	Quick Lock
单元数量	1	基础产品编号	92000

环境参数

机械寿命

500cycles

工作温度

-40°C ~ 125°C
