点击放大查看

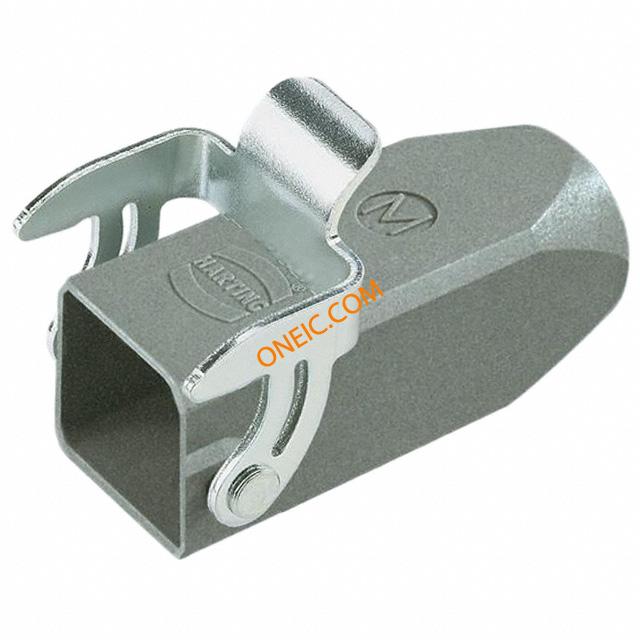

19200031750

制造商	HARTING Technology Group
描述	Connector Accessories 9 POS Cable to Cable Hood Metal Heavy Duty Power Connectors 3A CBL TO CBL M20 METAL 1 LEVER HAN A HOOD COUPLER 1 LEVER M20 M20 metric metal coupling hood,3A Hood,HAN3A,Metal,CableEntryF,M20 Enclosure: for Han connectors; Han; size 3A; for cable; with lock Han A Housings: Han A Hood Coupler 1 Lever M20 Harting Han A 系列电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3070	零件号别名	003 019 019-20-003-1750 1750 20
产品类别	Heavy Duty Power Connectors	标准包装数量	1
工厂包装数量	10

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

最大额定电流

3 A

机械参数

尺寸	3A	重量	0.07 kg
包装方式	Bulk	壳体颜色	grey
方向	straight	螺纹尺寸	M20
外壳颜色	Gray	衬套螺纹	M20
连接器类型	Hood - Coupling	外壳涂层	Powder Coated
安装样式	for cable	封装形式	size 3A
插入力	Female	锁定特性	with lock
壳体材料	Zinc, Die Cast	包装数量	10
主要材料	Interconnect	尺寸/外形	0.953" L x 0.953" W x 2.244" H (24.20mm x 24.20mm x 57.00mm)
触点数	4	供应商器件封装	for Han connectors
外壳与棱镜材料	zinc alloy

产品信息

SPG	10	类型	Hood
样式	Bottom Entry	系列	HAN-A
产品特性	Cable to Cable	CAD图纸	3D CAD Model
产品子类型	Hoods	锁定位置	Side Clip on Hood Top
附件类型	Hood	适配器系列	Han
单元数量	1

环境参数

防护等级

IP44

工作温度

-40°C ~ 125°C
