点击放大查看

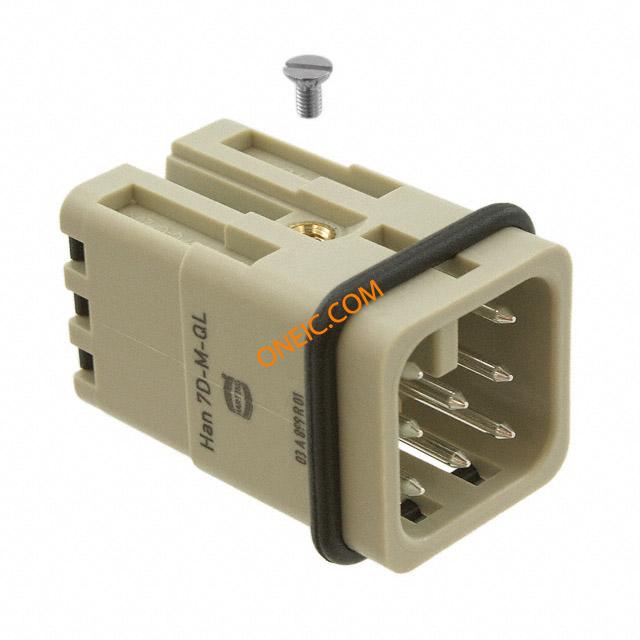

09210072632

制造商	HARTING Technology Group
描述	HAN 7D-M QUICK LOCK 22-16AWG Han 7D Male Quick Lock Connector Heavy Duty Power Connectors 7+Gnd Male Insert HAN 7D QUICK LOCK Han7D-MQuickLock,22-16AWG Connector: HAN; male; Quick Lock; PIN:8; 7+PE; size 3A; snap-on Han D Male Insert: Han 7D-M Quick Lock 22-16 AWG Harting Han D 系列 8针插头电源连接器外壳
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	007 09 09-21-007-2632 21 2632	产品类别	Heavy Duty Power Connectors
标准包装数量	1

合规参数

RoHS

Compliant

材料阻燃等级

UL94 HB

电气参数

额定电压	600V	最大额定电流	10A
连接器类型 - 电压输入	for plastic housings

机械参数

尺寸	3A	颜色	Gray
重量	0.02 kg	包装方式	Bulk
方向	直	基体材料	polycarbonate
安装类型	snap-on	连接器类型	Insert
接触镀层	Silver	安装样式	Straight
封装形式	size 3A	插入力	Male
触头材料	Copper Alloy	壳体材料	Polyamide (PA), Nylon
包装数量	10	尺寸/外形	3A
端接样式	Push In with Lock	触点数	8
位数	7+Ground	线规或范围 - AWG	22-16
线规或范围 - mm²	0.3...1.5mm2	第一连接器安装特征	7+PE

产品信息

SPG	10	类型	CONNECTORS
连接器性别	Male	系列	Han D
CAD图纸	3D CAD Model	产品子类型	Inserts
适配器系列	Quick Lock	单元数量	1

环境参数

机械寿命

500cycles

工作温度

-40°C ~ 125°C
