19200031150
| 制造商 | |

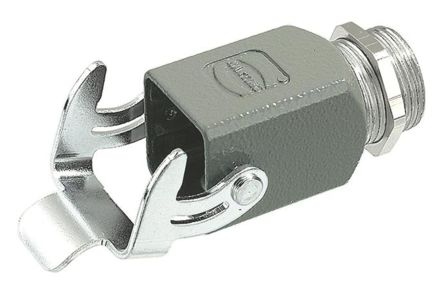

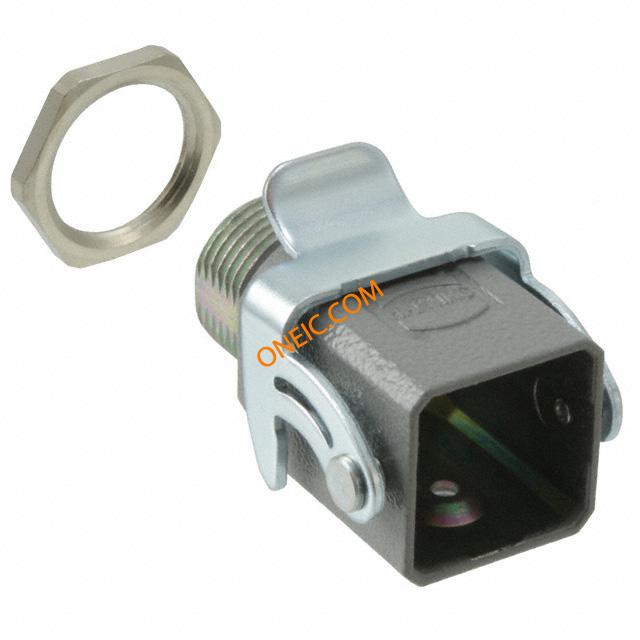

| 描述 | HAN 3A BASE SCREW M20 Heavy Duty Power Connectors SCRW MOUNT HOUSING HAN 3A 1 LEVER LCK Enclosure: for Han connectors; Han; size 3A; for cable; with lock Han A Housings: Han 3A base screw M20 Harting Han-A 系列 外壳 , M20螺纹 |
| 分类 |
商业参数
| 其他名称 | 1195-3064 | 零件号别名 | 003 019 019-20-003-1150 1150 20 |
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 频率 | Side Clip on Hood Top | ||
机械参数
| 尺寸 | 3A | 重量 | 0.06 kg |
| 包装方式 | Bulk | 壳体颜色 | grey |
| 方向 | straight | 螺纹尺寸 | M20 |
| 外壳表面处理 | Powder Coated | 外壳颜色 | Gray |
| 衬套螺纹 | M20 | 连接器类型 | Hood |
| 外壳涂层 | Powder Coated | 安装样式 | for cable |
| 封装形式 | size 3A | 锁定特性 | with lock |
| 壳体材料 | Zinc, Die Cast | 包装数量 | 5 |
| 尺寸/外形 | 0.953" L x 0.953" W x 1.890" H (24.20mm x 24.20mm x 48.00mm) | 位数 | 2 |
| 外部壳体颜色 | Gray | 供应商器件封装 | for Han connectors |
| 外壳与棱镜材料 | zinc alloy | ||
产品信息
| SPG | 5 | 类型 | CONNECTORS |
| 样式 | Top Entry | 系列 | Han® A |
| 产品子类型 | Accessories | 锁定位置 | Side Clip on Hood Top |
| 附件类型 | 基座螺钉 | 适配器系列 | Han |
| 单元数量 | 1 | ||
环境参数
| 防护等级 | IP44 | 工作温度 | -40°C ~ 125°C |
