点击放大查看

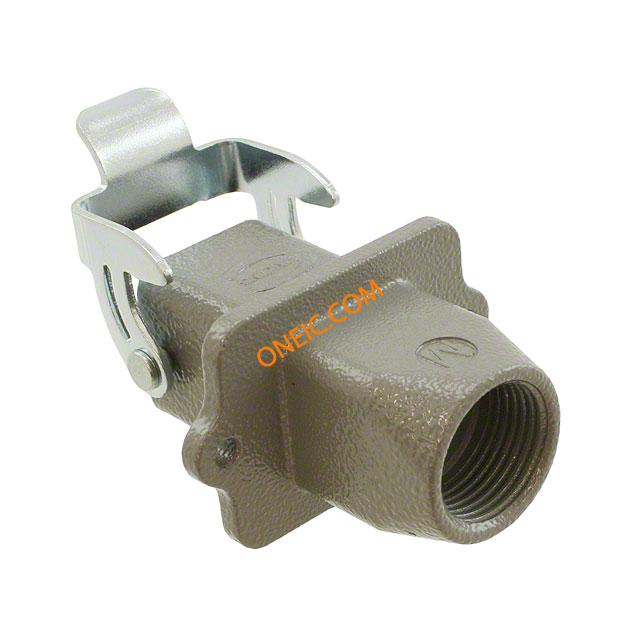

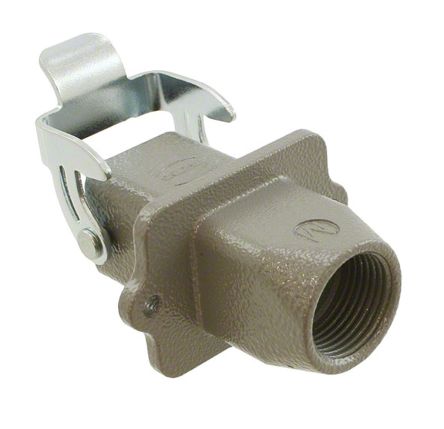

19200031120

制造商	HARTING Technology Group
描述	HAN 3A BULKHEAD FEED-THRU HSNG Heavy Duty Power Connectors Han 3A Bulkhead feed-thru housing Han A Housings: Han 3A Bulkhead feed-thru housing Harting Han A 系列电源连接器外壳
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3063	零件号别名	003 019 019-20-003-1120 1120 20
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

RoHS Compliant

机械参数

尺寸	3A	包装方式	Bulk
螺纹尺寸	M20	连接器类型	Hood - Panel Mount
外壳涂层	Powder Coated	壳体材料	Zinc, Die Cast
尺寸/外形	2.126" L x 1.378" W x 2.268" H (54.00mm x 35.00mm x 57.60mm)

产品信息

类型	CONNECTORS	样式	Bottom Entry
系列	Han A	产品特性	Cable to Cable
锁定位置	Side Clip on Hood Top	测量范围	Han

环境参数

防护等级

IP44

工作温度

-40°C ~ 125°C

文档与媒体

PDF 文档

TB_19200031120_BL01_RB-88870.pdf

相关型号

19000005182

HARTING

Heavy Duty Power Connectors cable clamp 20M Cable Accessories Cable Gland Plastic White CBL CLAMP M20 6-12MM PLAST IP68 CableclampM20,6-12mm,plastic,IP68

¥12.5664

详情

09200042711

Harting Technology Group

Conn Rectangular F 4Power/1Ground POS Screw ST Panel Mount Heavy Duty Power Connectors HAN A 4P FEMALE SCRW SCREW TERMINATION HAN A 04 POS. F INSERT SCREW Insert; 230/400 V; 10 A; Female; 4; RoHS Compliant; Han A Series Han10B-g Connector: HAN; female; Han A; PIN:5; 4+PE; size 3A; screw terminal Han A Female Insert-Screw: Han A 04 Position F Insert Screw

¥65.8240

详情

09210073131

Harting Technology Group

Conn Housing F 8 POS Crimp ST Heavy Duty Power Connectors HAN D 7P FEMALE CRMP ORDER CONTACTS SEP HAN D 7 POS. F INSERT CRIMP Han(R) D 7P+E socket insert, 250Vac PowerConnectorInsert;Female;7 Connector: HAN; female; Han D; PIN:8; 7+PE; size 3A; w/o terminals Han D Female Insert: Han D 7 Position F Insert Crimp Harting Han D 系列 3行 8针插座电源连接器

¥26.0440

详情

19000005080

Harting Technology Group

Cable Accessories Cable Gland Metal Heavy Duty Power Connectors CABL CLAMP M20 BRASS 5-9mm CABLE DIA IP68 CBL CLAMP M20 5-9MM BRASS IP68 CABLE CLAMP, M20, 5-9MM CABLECLAMPM20,5-9MM,BRASS,IP68 Cable Glands metal: Cable clamp M20, 5-9mm, brass, IP 68

¥48.0488

详情

19000005184

Harting Technology Group

Cable Accessories Cable Gland Plastic Heavy Duty Power Connectors UNIV. CABLE PROTECT CBL CLAMP M20 10-14MM PLAST IP68 CableclampM20,10-14mmPlasti Gland; M20; IP68; Dcable:10÷14mm; Mat: thermoplastic; Spanner:27mm

¥52.8360

详情

09700062813

Harting Technology Group

Conn Terminal Block F 6 POS Screw ST Cable Mount 10A Heavy Duty Power Connectors HAN STAF 6P FEMALE SCREW TERMINATION PCAF 06 POS. F INSERT SCREW INSERT FEMALE 6POS SCREW Insert;6;23mm;Female Connector: rectangular; male; Han Staf; PIN:6; size 3A; 10A; 50V Staf Insert F: Staf 06 Position F Insert Screw Harting STAF 系列 2行 6针插座电源连接器 , 电缆安装

¥72.4800

详情

19000005180

Harting

CBL CLAMP M20 5-9MM PLASTIC IP68 Heavy Duty Power Connectors UNI CBL PROTECTION WH THERMOPLASTIC CableclampM20,5-9mm,plastic,IP68

¥21.2976

详情

19000005082

Harting

CBL CLAMP M20 6-12MM BRASS IP68 Heavy Duty Power Connectors CABL CLAMP M20 BRASS 6-12mm CABL DIA IP68 CABLE CLAMP, M20, 6-12MM CableclampM20,6-12mm,brass,IP68 Gland; M20; IP68; Dcable:6÷12mm; Mat: metal; Spanner:22mm Cable Glands metal: Cable clamp M20, 6-12mm, brass, IP 68

¥35.7204

详情

19000005084

Harting

CBL CLAMP M20 10-14MM BRASS IP68 Heavy Duty Power Connectors CABL CLAMP M20 BRASS 10-14mm CAB DIA IP68 Cable gland; metal; M20; 10-14 mm cable dia.; for Han HPS CABLE CLAMP, M20, 10-14MM Cablegland;metal;M20;10-14mmcabledia.;forHanHPS Gland; M20; IP68; Dcable:10÷14mm; Mat: metal; Spanner:24mm Cable Glands metal: Cable clamp M20, 10-14mm, brass, IP 68 Harting IP68 金属金属电缆固定头 , 10mm 至 14mm电缆直径, -40°C至+125°C, M20螺纹

¥105.0743

详情

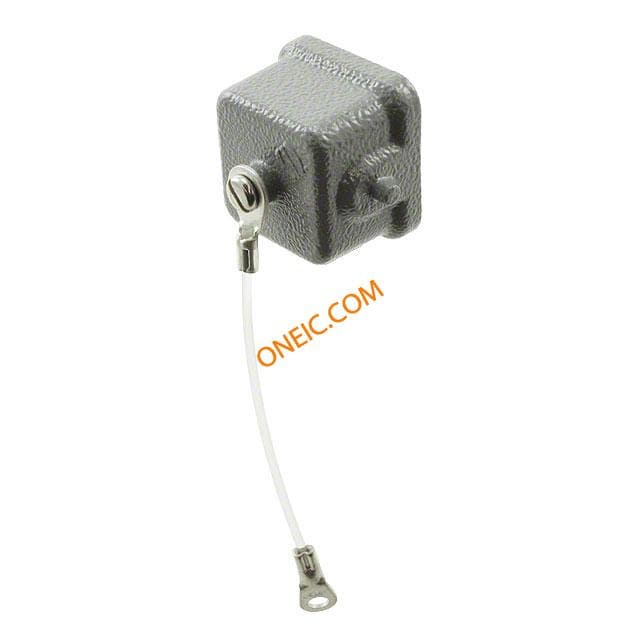

09200035425
