点击放大查看

19200031252

制造商	HARTING Technology Group

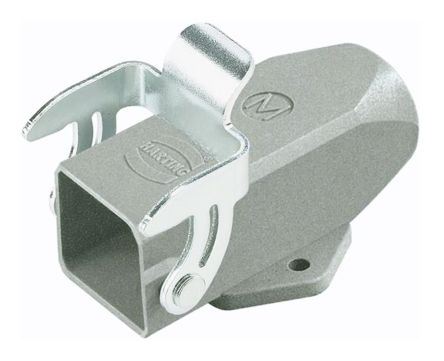

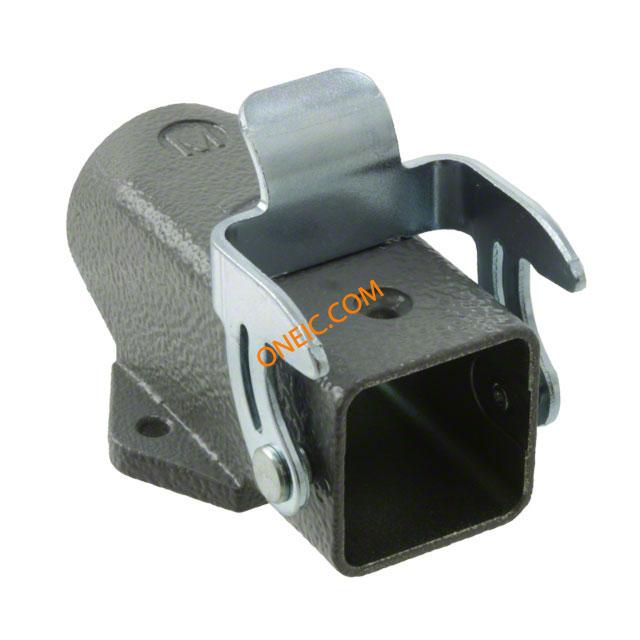

描述	HAN3A M20 BOTTOM CLOSED Heavy Duty Power Connectors SURFACE MOUNTING HSG 1 SIDE ENTRY HAN3AM20BOTTOMCLOSED Han A Housings: Han3A M20 Bottom Closed Harting Han-A 系列外壳 , M20螺纹
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3066	零件号别名	003 019 019-20-003-1252 1252 20
产品类别	Heavy Duty Power Connectors	标准包装数量	1
工厂包装数量	10

合规参数

RoHS

RoHS Compliant

机械参数

尺寸	3A	包装方式	Bulk
螺纹尺寸	M20	外壳颜色	Gray
连接器类型	Base - Panel Mount 90°	外壳涂层	Powder Coated
壳体材料	Zinc, Die Cast	尺寸/外形	1.102" L x 1.575" W x 1.071" H (28.00mm x 40.00mm x 27.20mm)
端接样式	Screw	位数	2

产品信息

类型	CONNECTORS	样式	Side Entry
系列	Han A	产品子类型	Receptacle Housings
锁定位置	Central Locking Clip on Base Bottom	附件类型	Housings

环境参数

防护等级

IP44

工作温度

-40°C ~ 125°C
