点击放大查看

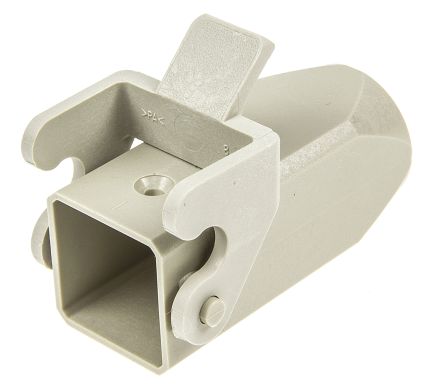

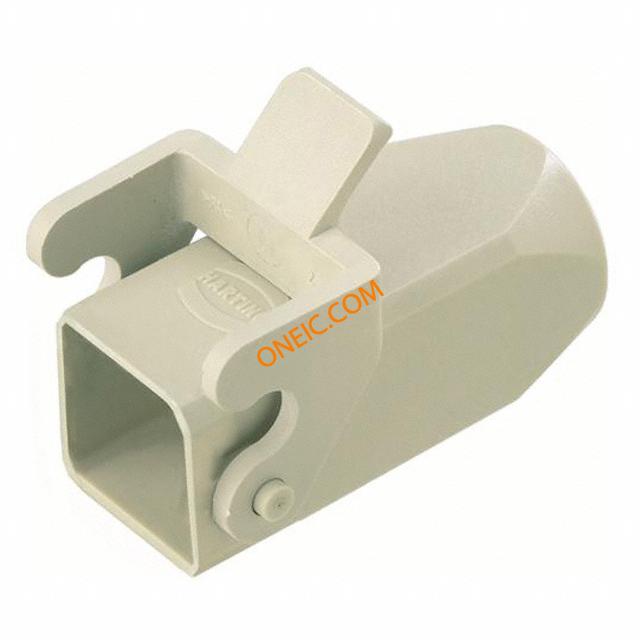

09200030720

制造商	HARTING Technology Group
描述	HAN A HOOD COUPLER THERMO 1LEVER Heavy Duty Power Connectors 3A CBL TO CBL PG11 GREY PLASTIC 1 LEVER Han plastic coupling hood,PG11 size 3A Hood;Plastic;Grey;32.2mm;56mm;Pg11CableEntry Enclosure: for Han connectors; Han; size 3A; for cable; with lock Han A Housings: Han A Hood Coupler Thermoplastic 1 Lever Harting Han A 系列电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	003 0720 09 09-20-003-0720 20	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Compliant

电气参数

最大额定电流

3 A

机械参数

尺寸	3A	重量	0.02 kg
包装方式	Bulk	方向	straight
螺纹尺寸	PG11	外壳颜色	Gray
衬套螺纹	PG11	连接器类型	Hood - Coupling
安装样式	Straight	封装形式	size 3A
插入力	Female	锁定特性	with lock
壳体材料	Thermoplastic	包装数量	4
尺寸/外形	0.945" L x 0.945" W x 2.244" H (24.00mm x 24.00mm x 57.00mm)	端接样式	Cable
触点数	13	供应商器件封装	for Han connectors
外壳与棱镜材料	plastic

产品信息

SPG	4	类型	CONNECTORS
样式	Bottom Entry	系列	Han Q
产品特性	Cable to Cable	产品子类型	Housings
锁定位置	Central Locking Clip on Hood	附件类型	Hood
适配器系列	Han	单元数量	1

环境参数

防护等级

IP67 - Dust Tight, Waterproof

工作温度

-40°C ~ 125°C
