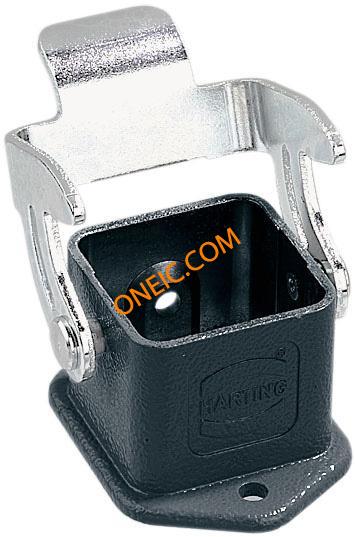

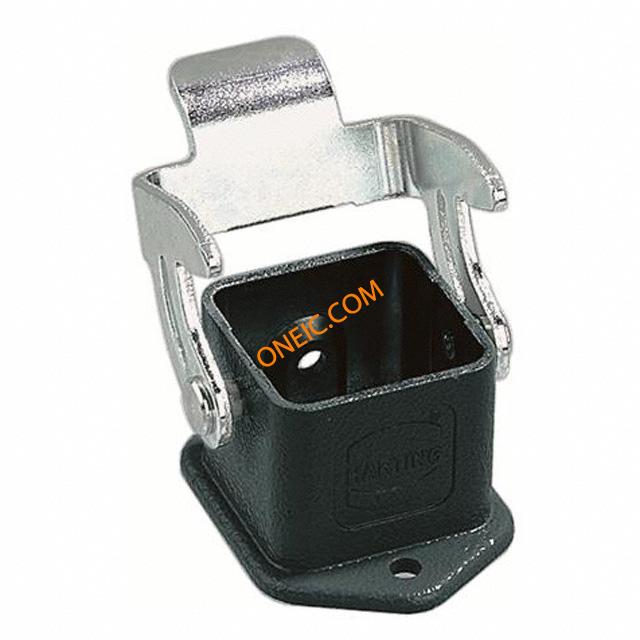

09370030301

制造商	HARTING Technology Group
描述	HAN 3M BASE PANEL 1 LEVER Heavy Duty Power Connectors BULKHEAD MOUNTING HAN 3A 1 LVR LCKING Han M Housings: Han 3M Base Panel 1 Lever
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	003 0301 09 09-37-003-0301 37	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

RoHS Compliant

机械参数

尺寸	3A	包装方式	Bulk
重量（g）	36.40000	外壳颜色	Black
连接器类型	Base - Panel Mount	外壳涂层	Epoxy Powder Paint
安装样式	Top Entry	壳体材料	Zinc, Die Cast
尺寸/外形	1.102" L x 1.575" W x 0.984" H (28.00mm x 40.00mm x 25.00mm)

产品信息

类型	CONNECTORS	样式	Bottom Entry
系列	Han M	产品子类型	Housings
锁定位置	Central Locking Clip on Base Bottom	附件类型	Base Panel

环境参数

防护等级

IP44

工作温度

-40°C ~ 125°C

相关型号

09200032711

Harting Technology Group

Conn Power F 3 POS Screw RA Panel Mount 3 Terminal 1 Port Heavy Duty Power Connectors HAN A 3P FEMALE SCRW SCREW TERMINATION HAN 3A F INSERT SCREW Conn Power F 3 POS Screw RA Panel Mount 3 Terminal PowerConnectorInsert;Female;3 Connector: HAN; female; Han A; PIN:4; 3+PE; size 3A; screw terminal Han A Female Insert-Screw: Han 3A F Insert Screw Harting Han A 系列 2行 3针 3P+E极插座电源连接器 01, 面板安装

¥52.6320

详情

09120073001

Harting Technology Group

Conn Housing M 8 POS Crimp ST Panel Mount Heavy Duty Power Connectors MALE INSERT 7 POLE CRIMP TERM HAN Q 7/0-MALE HeavyDutyPowerConnectorsMALEINSERT7POLECRIMPTERM HanQ7/0-male Han Q Male Insert: Han Q 7/0-male Harting Han Q 系列 2行 8针插头电源连接器

¥27.4400

详情

09200042711

Harting Technology Group

Conn Rectangular F 4Power/1Ground POS Screw ST Panel Mount Heavy Duty Power Connectors HAN A 4P FEMALE SCRW SCREW TERMINATION HAN A 04 POS. F INSERT SCREW Insert; 230/400 V; 10 A; Female; 4; RoHS Compliant; Han A Series Han10B-g Connector: HAN; female; Han A; PIN:5; 4+PE; size 3A; screw terminal Han A Female Insert-Screw: Han A 04 Position F Insert Screw

¥65.8240

详情

09200032611

Harting Technology Group

Conn Power M 3Power POS Screw ST Cable Mount 3 Terminal 1 Port Heavy Duty Power Connectors HAN A 3P MALE SCREW SCREW TERMINATION HAN 3A M INSERT SCREW Han A 3 2 Male Straight, Cable Mount 10A,600V Insert;230/400V;10A;Male;3;RoHSCompliant;HanASeries Connector: HAN; male; Han A; PIN:4; 3+PE; size 3A; screw terminal Han A Male Insert-Screw: Han 3A M Insert Screw Harting Han A 系列 2行 3针 3P+E极插头电源连接器插件 , 电缆安装

¥61.2306

详情

09210073131

Harting Technology Group

Conn Housing F 8 POS Crimp ST Heavy Duty Power Connectors HAN D 7P FEMALE CRMP ORDER CONTACTS SEP HAN D 7 POS. F INSERT CRIMP Han(R) D 7P+E socket insert, 250Vac PowerConnectorInsert;Female;7 Connector: HAN; female; Han D; PIN:8; 7+PE; size 3A; w/o terminals Han D Female Insert: Han D 7 Position F Insert Crimp Harting Han D 系列 3行 8针插座电源连接器

¥26.0440

详情

09120073101

Harting Technology Group

Conn Housing F 8 POS Crimp ST Heavy Duty Power Connectors HAN Q FEM INST CRIMP TERM 7C+PE HAN Q 7/0-F HanQ7/0-Female Han Q Female Insert: Han Q 7/0-F Harting Han Q 系列 4行 8针插座电源连接器

¥38.3592

详情

09360083001

Harting

HAN 8D MALE INSERT CRIMP Heavy Duty Power Connectors HAN U 8P MALE INSERT CRIMP Han(R) 8D(U) 8P male insert,10A 50Vac HANU8PMALEINSERTCRIMP Connector: HAN; male; Han D; PIN:8; size 3A; w/o terminals; crimped Han D Male Insert: Han 8D Male Insert Crimp Harting Han D 系列 8针插头电源连接器

¥45.9711

详情

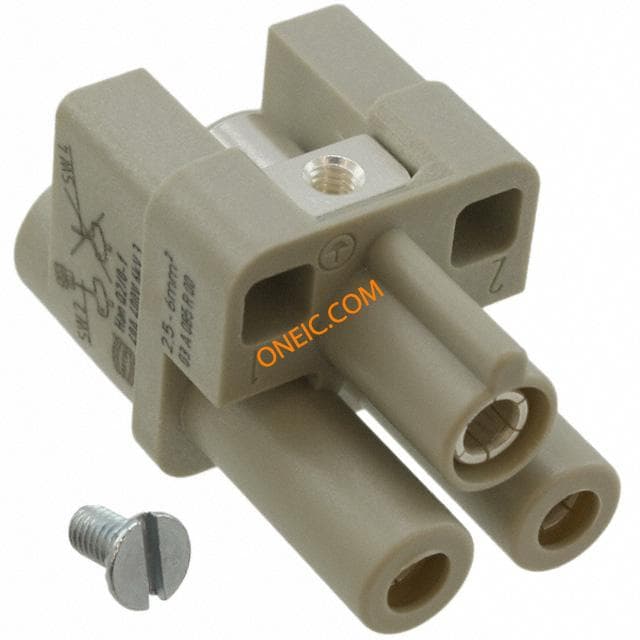

09120022753
