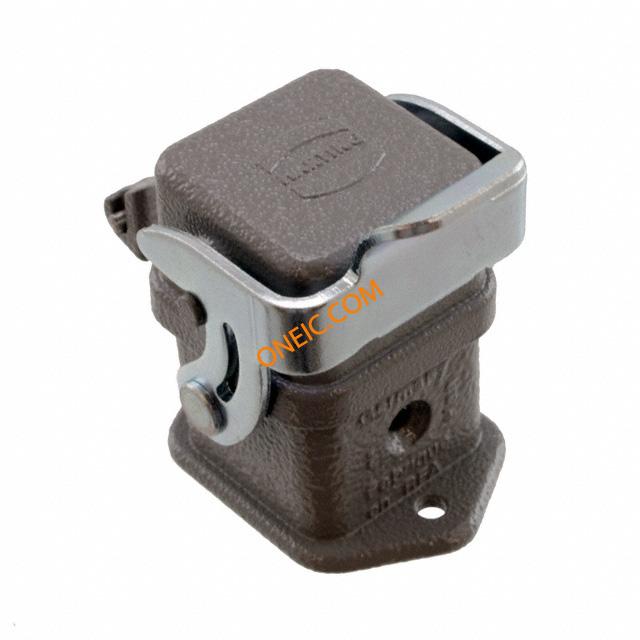

09200030305

制造商	HARTING Technology Group
描述	HAN 3A-AGG-QB-K CAP WITHOUT SEAL Heavy Duty Power Connectors BULKHEAD MOUNTING HAN 3A 1 LEVER LCK HAN3AWITHCOVERFORMALEINSERT Enclosure: for Han connectors; Han; size 3A; with lock; straight Harting Han A 系列底部插入电源连接器
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	003 0305 09 09-20-003-0305 20	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

RoHS Compliant

电气参数

连接器类型 - 电压输入

with cover

机械参数

尺寸	3A	重量	0.06 kg
包装方式	Bulk	壳体颜色	grey
方向	straight	重量（g）	63.00000
连接器类型	Base - Panel Mount with Cover	外壳涂层	Powder Coated
安装样式	Vertical	封装形式	size 3A
锁定特性	with lock	壳体材料	Zinc, Die Cast
包装数量	1	尺寸/外形	1.102" L x 1.575" W x 0.906" H (28.00mm x 40.00mm x 23.00mm)
供应商器件封装	for Han connectors	外壳与棱镜材料	zinc alloy

产品信息

SPG	1	类型	连接器基座
样式	Bottom Entry	系列	Han Q
产品子类型	Housings	锁定位置	Side Clip on Base Bottom
适配器系列	Han	单元数量	1

环境参数

防护等级

IP44

工作温度

-40°C ~ 125°C
