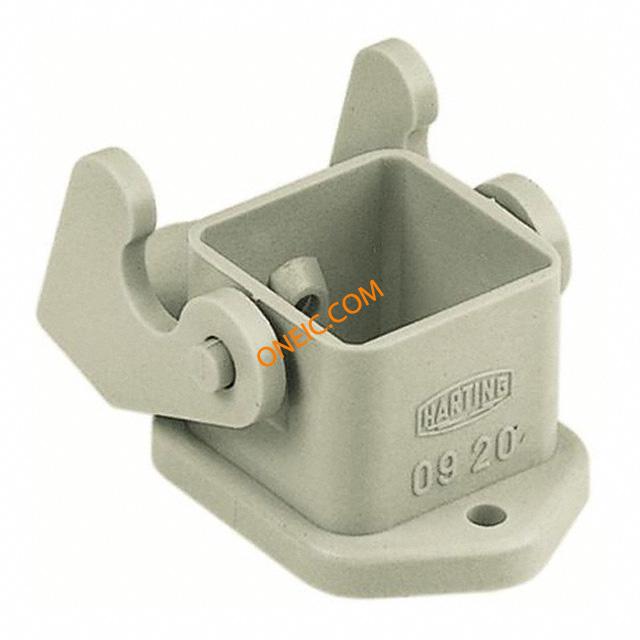

09200030320

制造商	HARTING Technology Group
描述	Connector Accessories Housing Bulkhead Mounting Heavy Duty Power Connectors HAN 3A BULKHEAD MNT 1 LEVER GREY PLASTIC HOUSING BULKHEAD MOUNTING Top entry panel mount plastic housing,3A HOUSINGBULKHEADMOUNTING(HAN3A-AGG-QB) Enclosure: for Han connectors; Han; size 3A; with lock; straight Han A Housings: Housing Bulkhead Mounting Harting Han A 系列顶入电源连接器外壳
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	003 0320 09 09-20-003-0320 20	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

最大额定电流

3 A

机械参数

尺寸	3A	深度	61
重量	0.01 kg	包装方式	Bulk
壳体颜色	grey	方向	straight
重量（g）	10.40000	外壳颜色	Gray
连接器类型	Base - Panel Mount	安装样式	flange (2 holes), for panel mounting
封装形式	size 3A	插入力	Female
锁定特性	with lock	壳体材料	Thermoplastic
总长度	35	包装数量	10
尺寸/外形	1.102" L x 1.575" W x 0.906" H (28.00mm x 40.00mm x 23.00mm)	端接样式	Cable
触点数	12	供应商器件封装	for Han connectors
外壳与棱镜材料	polycarbonate

产品信息

SPG	10	类型	Housing
样式	Bottom Entry	系列	Han Q
CAD图纸	3D CAD Model	产品子类型	Housings
锁定位置	Side Clip on Base Bottom	适配器系列	Han
单元数量	1

环境参数

防护等级

IP67 - Dust Tight, Waterproof

工作温度

-40°C ~ 125°C

相关型号

09200042711

Harting Technology Group

Conn Rectangular F 4Power/1Ground POS Screw ST Panel Mount Heavy Duty Power Connectors HAN A 4P FEMALE SCRW SCREW TERMINATION HAN A 04 POS. F INSERT SCREW Insert; 230/400 V; 10 A; Female; 4; RoHS Compliant; Han A Series Han10B-g Connector: HAN; female; Han A; PIN:5; 4+PE; size 3A; screw terminal Han A Female Insert-Screw: Han A 04 Position F Insert Screw

¥65.8240

详情

09200035407

Harting Technology Group

Cover,Thermoplastic cover,without safeguard agains Heavy Duty Power Connectors PROTECTION COVER GRY HAN 3A 1 LEVER LCK HAN 3A THERMOPLAPCIC COVER FOR H HAN 3A THERMOPLASTIC COVER FOR H

¥30.2555

详情

09200032611

Harting Technology Group

Conn Power M 3Power POS Screw ST Cable Mount 3 Terminal 1 Port Heavy Duty Power Connectors HAN A 3P MALE SCREW SCREW TERMINATION HAN 3A M INSERT SCREW Han A 3 2 Male Straight, Cable Mount 10A,600V Insert;230/400V;10A;Male;3;RoHSCompliant;HanASeries Connector: HAN; male; Han A; PIN:4; 3+PE; size 3A; screw terminal Han A Male Insert-Screw: Han 3A M Insert Screw Harting Han A 系列 2行 3针 3P+E极插头电源连接器插件 , 电缆安装

¥61.2306

详情

09700062813

Harting Technology Group

Conn Terminal Block F 6 POS Screw ST Cable Mount 10A Heavy Duty Power Connectors HAN STAF 6P FEMALE SCREW TERMINATION PCAF 06 POS. F INSERT SCREW INSERT FEMALE 6POS SCREW Insert;6;23mm;Female Connector: rectangular; male; Han Staf; PIN:6; size 3A; 10A; 50V Staf Insert F: Staf 06 Position F Insert Screw Harting STAF 系列 2行 6针插座电源连接器 , 电缆安装

¥72.4800

详情

09200035408

Harting

HAN 3A THERMO COVER WITH SEALING Heavy Duty Power Connectors PROTECTION COVER GRY HAN 3A 1 LEVER LCK Han3AThermoplasticCoverwithsealing

¥111.2317

详情

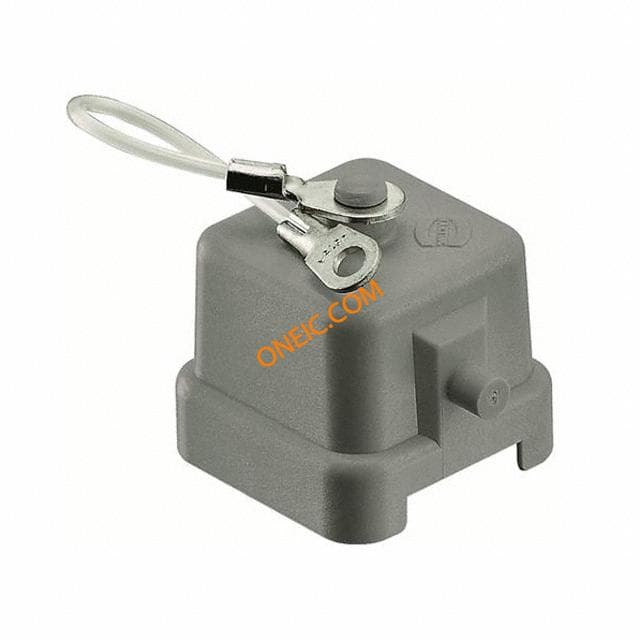

09200035445

Harting

HAN 3A THERMO COVER SEALING Heavy Duty Power Connectors PROTECTION COVER GRY HAN 3A 1 LEVER LCK Protection cap panel feedthrough plastic Protectioncappanelfeedthroughplastic Han A Accessories: Han 3A Thermopl. Cover, Sealing for Base Harting Han A 系列 RJ 连接器防尘盖 , 适用于RJ45 工业连接器

¥117.2446

详情

09120123001

Harting

INSERT HAN 12/0 MALE Heavy Duty Power Connectors 12+GND MALE RECEPT SCREW TERM INSERT Han Q Male Insert: Insert Han 12/0 Male Harting Han Q 系列 4行 12针插头电源连接器外壳

¥18.4950

详情

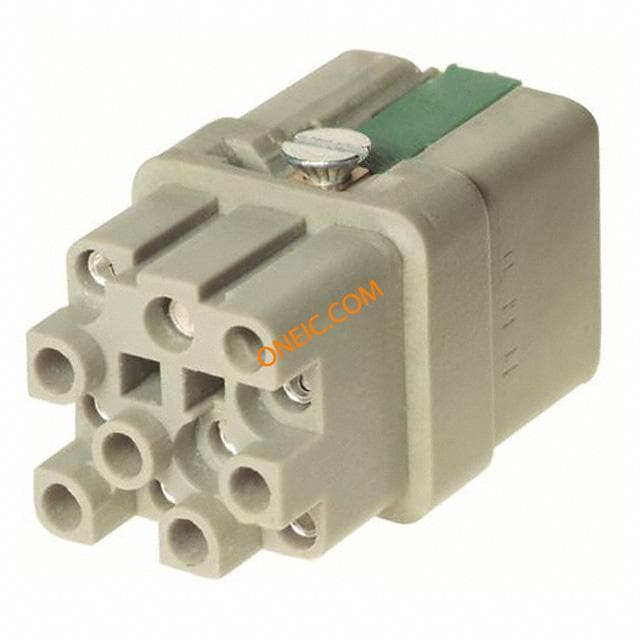

09120123101
