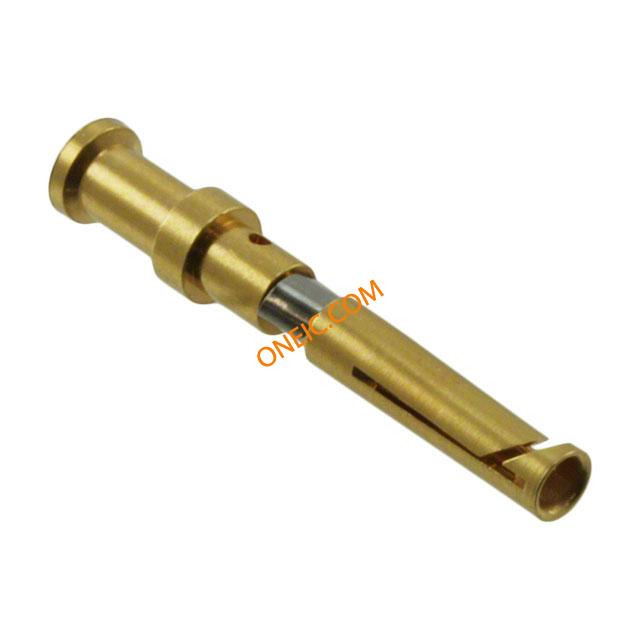

09150006224

制造商
HARTING Technology Group
描述
Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN 7D FEM AWG 26-22 GOLD PLATED HAN D F CRIMP CONT AU 26-22AWG Connector; Female Contact Conn Contact F 1Power POS Crimp ST Cable Mount Connector,FemaleContact Contact; female; 0.14÷0.37mm2; Han D; nickel plated, gold plated Han D Female Contact: Han D F Crimp Contact Au AWG 26 - 22 Harting Han Contacts 系列 母座 压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器
分类
连接器解决方案同轴连接器(RF)射频同轴连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名000 09 09-15-000-6224 15 6224产品类别Heavy Duty Power Connectors
标准包装数量1工厂包装数量100

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant

电气参数

电压250V额定电压250 V
最大额定电流10 A反向漏电流 @ Vr10A

机械参数

深度3.5 mm间距Not Required mm
重量0.69 g包装方式Bulk
导线线规22-26 AWG屏蔽类型No
端接方式Crimp重量（g）0.70000
触头类型Power安装类型Cable Mount
插针或插孔Socket连接器类型Connector Rectangular
接触镀层Gold安装样式Cable
插入力Female材料表面处理Gold
触头材料Copper Alloy壳体材料Not Required
总长度21.5 mm包装数量50
连接器 - 电缆contact端接样式Crimp
触点数Not Required接触件端接Crimp
镀层厚度（通用）2µm接触镀层厚度78.7µin (2.00µm)
线规或范围 - AWG26-22线规或范围 - mm²0.14...0.37mm2
触点材料 - 镀层nickel plated, gold plated

产品信息

SPG50类型Contact
连接器性别SKT系列Han Q
已删除Compliant产品子类型Contacts
附件类型压接触点适配器系列Han D
测量范围Han CD, Han Com, Han D, Han DD, Han DDD, Han Q, Han Quintax单元数量1
适用产品/相关产品大负荷电源连接器
