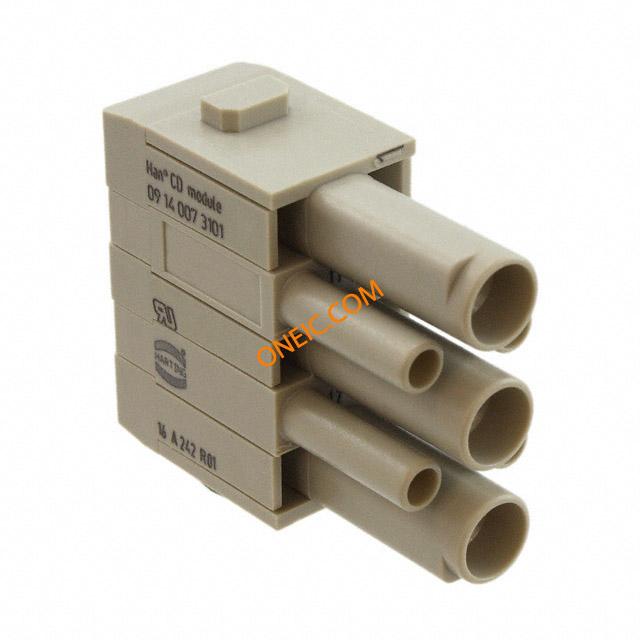

09140073101

制造商	HARTING Technology Group
描述	Han Cd - Modul Sc Female Inser Heavy Duty Power Connectors MOD FOR FEMALE CON HAN CD MODULE HAN CD MODULE CRIMP FEMALE Connector: HAN; module; female; Han Modular CD; PIN:7(3+4); 830V Han-Modular Modules: Han 3/4 Mod - F-c Harting HAN Modular 系列 1行 3针插座电源连接器外壳
分类	连接器解决方案重载连接器重载连接器（扩展）

对参数有疑问？问 AI 助手

商业参数

零件号别名	007 09 09-14-007-3101 14 3101	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	2

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
材料阻燃等级	UL94 V-0

电气参数

测试电压	8kV	额定电压	600V
最大额定电流	40 A	连接器类型 - 电压输入	w/o terminals

机械参数

颜色	Gray	重量	0.01 kg
包装方式	Bulk	方向	直
触头类型	Han® C, Han® D	连接器类型	Module without Contacts
排数	1	插入力	Female
壳体材料	Polycarbonate (PC)	包装数量	2
端接排数	压接	连接器 - 电缆	module
端接样式	Crimp	触点数	7
位数	3+4	绝缘材料 - 材质	polycarbonate

产品信息

SPG	2	类型	CONNECTORS
连接器性别	Female	系列	Han Modular
产品子类型	Accessories	适配器系列	Han Modular CD
单元数量	1	基础产品编号	0914

环境参数

机械寿命

500cycles

工作温度

-40°C ~ 125°C

相关型号

09140073001

Harting Technology Group

Han Cd - Modul Sc / Han Cd - Module Sc Stifleinsatz / Male Inser Heavy Duty Power Connectors MOD FOR MALE CON HAN CD MODULE HAN CD MODULE CRIMP MALE HAN3/4MOD-M-C Connector: HAN; module; male; Han Modular CD; PIN:7(3+4); 830V Han-Modular Modules: Han 3/4 Mod - M-c Harting HAN Modular 系列 1行 3针插头电源连接器外壳

¥15.4840

详情

09150006225

Harting Technology Group

Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors FEMALE CONTACT STD GOLD PLATED HAN D F CRIMP CONTACT GOLD HanDFCrimpContact0,75mmÂ²Au Contact; female; 0.75mm2; Han D; nickel plated, gold plated; 10A Han D Female Contact: Han D F Crimp Contact Au Harting Han Contacts 系列母座压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器

¥7.9968

详情

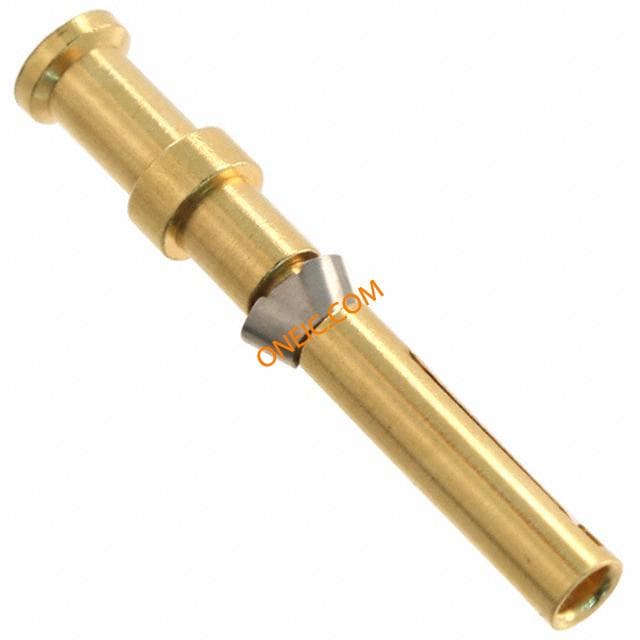

09150006223

Harting Technology Group

Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN 7D FEMALE AWG 20 GOLD PLATED HAN D F CRIMP CONTACT AU AWG 20 Han-Com(R) goldskt crimpcontact,0.5sq.mm Connector,FemaleContact Contact; female; 0.5mm2; Han D; nickel plated, gold plated; 10A Han D Female Contact: Han D F Crimp Contact Au AWG 20 Harting Han Contacts 系列母座压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器

¥12.0020

详情

09150006201

Harting Technology Group

Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN D FEMALE AWG 16 SILVER PLATED CRIMP HAN D F CRIMP CONTACT AG AWG 16 Han-Com(R) crimp socket contact,1.5sq.mm 09150006201 CRIMP SOCKET CONTACT Connector;FemaleInsert;SilverPlated16AWGCrimpContact;HanDDModular Contact; female; 1.5mm2; Han D; silver plated; crimped; 10A; 3um Han D Female Contact: Han D F Crimp Contact Ag AWG 16 Harting Han Contacts 系列母座压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器

¥1.8620

详情

09320006208

Harting Technology Group

Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN HsC FEMALE CRIMP 6mm2 CROSS SECTION HAN HSC FEMALE CRIMP CONT 10 AWG Han HsC Female Crimp Contact 10 AWG Connector;Female Insert;Silver Plated 10 AWG Power Contact;Han C Modular Conn Contact F 1Power POS Crimp ST 1 Terminal 1 Port Connector;FemaleInsert;SilverPlated10AWGPowerContact;HanCModular Contact; female; 6mm2; Han Com; silver plated; crimped; 40A; 3mΩ Han C Contacts Female: Han HsC Female Crimp Contact 10 AWG Harting Han Contacts 系列 1 路母座触点

¥8.4770

详情

09150006204

Harting Technology Group

Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN D FMLE AWG 26-22 SILVER PLATED CRIMP HAN D F CRIMP CONTACT AWG 26-22 Han D Female Crimp Contact Ag AWG 26-22 Connector;Female Insert;Silver Plated 22-26 AWG Crimp Contact;Han DD Modular Connector;FemaleInsert;SilverPlated22-26AWGCrimpContact;HanDDModular Contact; female; 0.14÷0.37mm2; Han D; silver plated; crimped; 10A Han D Female Contact: Han D F Crimp Contact Ag AWG 26 - 22 Harting Han Contacts 系列 1 路母座触点 , 额定电流 10A

¥2.0090

详情

09320006205

Harting Technology Group

Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN HsC FEMALE CRIMP 2.5mm2 CROSS SECTION HAN HSC FEMALE CRIMP CONT Han HsC Female Crimp Contact 14 AWG Connector;Female Insert;Silver Plated 14 AWG Power Contact;Han C Modular Conn Contact F 1 POS ST 1 Terminal 1 Port Connector;FemaleInsert;SilverPlated14AWGPowerContact;HanCModular Contact; female; 2.5mm2; Han Com; silver plated; crimped; 40A; 3mΩ Han C Contacts Female: Han HsC Female Crimp Contact, 2.5mm2 Harting Han Contacts 系列 1 路母座触点

¥6.7072

详情

09150006203

Harting Technology Group

Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN D FEMALE AWG 20 SILVER PLATED CRIMP HAN D F CRIMP CONTACT AG AWG 20 Han-Com(R) crimp socket contact,0.5sq.mm Connector;FemaleInsert;SilverPlated20AWGCrimpContact;HanDDModular Contact; female; 0.5mm2; Han D; silver plated; crimped; 10A; 3um Han D Female Contact: Han D F Crimp Contact Ag AWG 20 Harting Han Contacts 系列母座压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器

¥2.0580

详情

09150006205

Harting Technology Group

Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN 10A FEMAL AWG 18 SILVER PLATED HAN D F CRIMP CONTACT AG Han-Com(R) crimp socketcontact,0.75sq.mm Han-Com(R)crimpsocketcontact,0.75sq.mm Contact; female; 0.75mm2; Han D; silver plated; crimped; 10A; 3um Han D Female Contact: Han D F Crimp Contact Ag Harting Han Contacts 系列母座压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器

¥2.1070

详情

09320006207

Harting Technology Group

Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN HsC FEMALE CRIMP 4mm2 CROSS SECTION HAN HSC FEMALE CRIMP CONT 12 AWG 09320006207 Connector;FemaleInsert;SilverPlated12AWGPowerContact;HanCModular Contact; female; 4mm2; Han Com; silver plated; crimped; 40A; 3mΩ Han C Contacts Female: Han HsC Female Crimp Contacts 12 AWG

¥7.8890

详情

09150006202

Harting Technology Group

Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN D FEMALE AWG 18 SILVER PLATED CRIMP HAN D F CRIMP CONTACT AG AWG 18 Han-Com(R) crimp socket contact,1sq.mm Connector;FemaleInsert;SilverPlated18AWGCrimpContact;HanDDModular Contact; female; 1mm2; Han D; silver plated; crimped; 10A; 3um Han D Female Contact: Han D F Crimp Contact Ag AWG 18 Harting Han Contacts 系列母座压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器

¥2.1560

详情

09150006226

Harting Technology Group

Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN 10A FEMAL AWG 14 GOLD PLATED EAN D F CRIMP CONTACT AU AWG 14 Han D Female Crimp Contact Au AWG 14 Contacts,Crimp,GoldPlated,Female Contact; female; 2.5mm2; Han D; nickel plated, gold plated; 10A Han D Female Contact: Han D F Crimp Contact Au AWG 14 Harting Han Contacts 系列母座压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器

¥18.2182

详情

09150006222

Harting Technology Group

Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN 10A FEMAL AWG 18 GOLD PLATED HAN D F CRIMP CONTACT AU AWG 18 HAND(FemaleCrimpContacts)18Awg Contact; female; 1mm2; Han D; nickel plated, gold plated; crimped Han D Female Contact: Han D F Crimp Contact Au AWG 18

¥6.3504

详情

09150006206

Harting Technology Group

Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN D FEMALE AWG 14 SILVER PLATED CRIMP HAN D F CRIMP CONTACT AG AWG 14 Han D Female Crimp Contact Ag AWG 14 Connector;Female Insert;Silver Plated 14 AWG Crimp Contact;Han DD Modular Connector;FemaleInsert;SilverPlated14AWGCrimpContact;HanDDModular Contact; female; 2.5mm2; Han D; silver plated; crimped; 10A; 3um Han D Female Contact: Han D F Crimp Contact Ag AWG 14 Harting Han Contacts 系列 1针插座电源连接器外壳 , 电缆安装

¥2.3618

详情

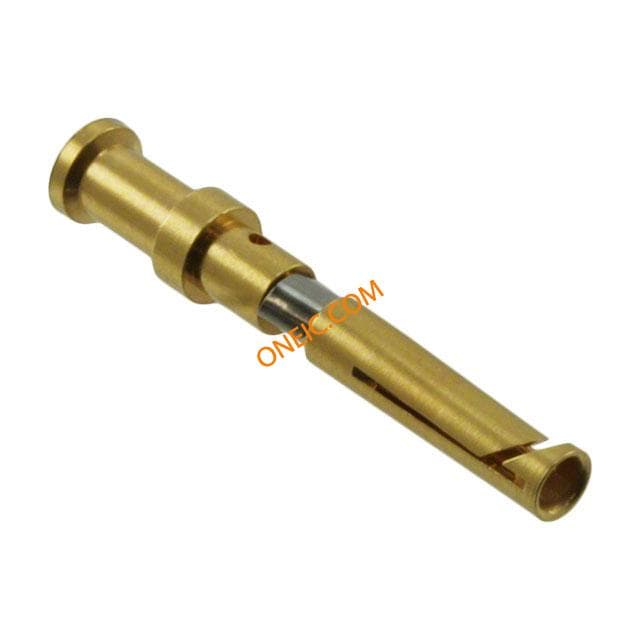

09150006224

Harting Technology Group

Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN 7D FEM AWG 26-22 GOLD PLATED HAN D F CRIMP CONT AU 26-22AWG Connector; Female Contact Conn Contact F 1Power POS Crimp ST Cable Mount Connector,FemaleContact Contact; female; 0.14÷0.37mm2; Han D; nickel plated, gold plated Han D Female Contact: Han D F Crimp Contact Au AWG 26 - 22 Harting Han Contacts 系列母座压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器

¥18.7915

详情

09320006204

Harting Technology Group

Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN HsC FEMALE CRIMP 1.5mm2 CROSS SECTION HAN HSC FEMALE CRIMP CONT 16 AWG Han HsC Female Crimp Contact 16 AWG Conn Contact F 1 POS ST 1 Terminal 1 Port HANHSCFEMALECRIMPCONTACT16AWG Contact; female; 1.5mm2; Han Com; silver plated; crimped; 40A; 3mΩ Harting Han Contacts 系列母座压接触点 , 额定电流 40A/ 830 V, 适用于大负荷电源连接器

¥18.1200

详情

09150006221

Harting

HAN D F CRIMP CONTACT AU AWG 16 Heavy Duty Power Connectors HAN 10A FEM AWG 16 GOLD PLATED Contacts; Crimp; Gold Plated; Female Contacts,Crimp,GoldPlated,Female Contact; female; 1.5mm2; Han D; nickel plated, gold plated; 10A Han D Female Contact: Han D F Crimp Contact Au AWG 16

¥18.7733

详情
