芯天下
09320006205

点击放大查看

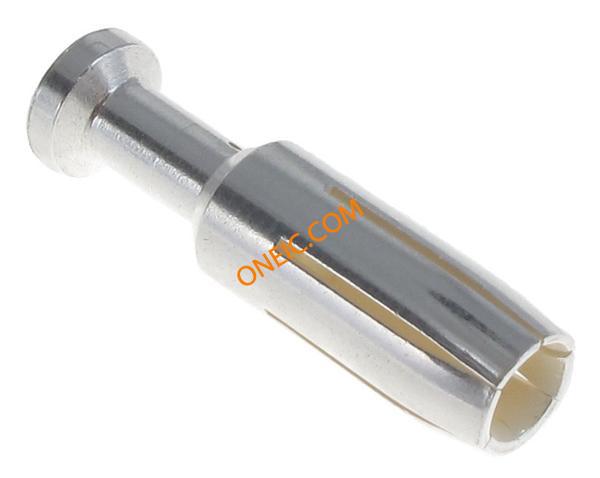

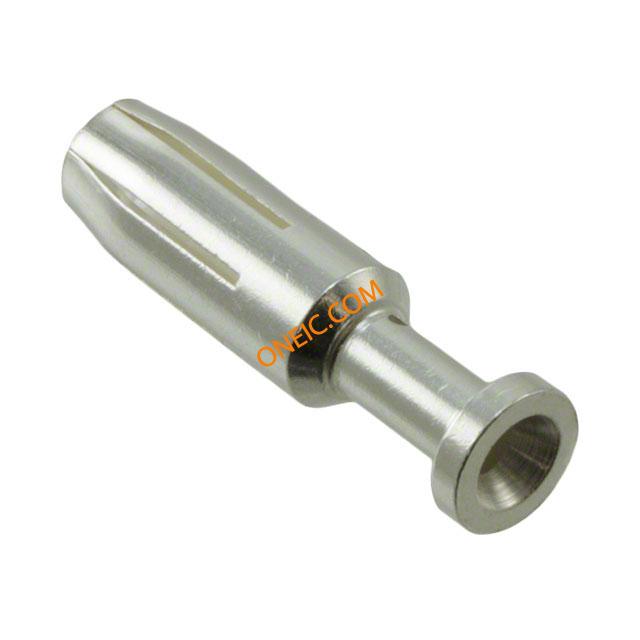

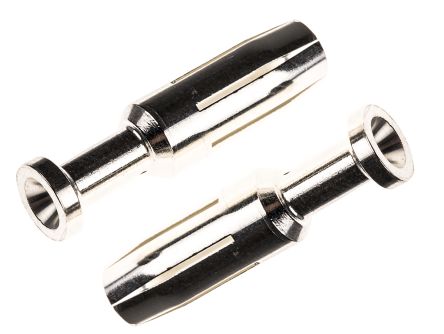

09320006205

制造商
HARTING Technology Group
描述
Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN HsC FEMALE CRIMP 2.5mm2 CROSS SECTION HAN HSC FEMALE CRIMP CONT Han HsC Female Crimp Contact 14 AWG Connector;Female Insert;Silver Plated 14 AWG Power Contact;Han C Modular Conn Contact F 1 POS ST 1 Terminal 1 Port Connector;FemaleInsert;SilverPlated14AWGPowerContact;HanCModular Contact; female; 2.5mm2; Han Com; silver plated; crimped; 40A; 3mΩ Han C Contacts Female: Han HsC Female Crimp Contact, 2.5mm2 Harting Han Contacts 系列 1 路 母座 触点
分类
连接器解决方案重载连接器重载连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名000 09 09-32-000-6205 32 6205产品类别Heavy Duty Power Connectors
标准包装数量1工厂包装数量25

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant

电气参数

额定电压690 V接触电阻1
最大额定电流40 A

机械参数

深度10高度10
重量2.66 g包装方式Bulk
导线线规14 AWG屏蔽类型No
端接方式Crimp重量（g）2.50000
触头类型Power安装类型Cable Mount
插针或插孔Socket连接器类型Connector Rectangular
接触镀层Silver插入力Female
触头材料Copper Alloy总长度23.4
包装数量25连接器 - 电缆contact
端接样式Crimp触点数1
接触件端接Crimp接触镀层厚度118.1µin (3.00µm)
线规或范围 - AWG14线规或范围 - mm²2.5mm2
触点材料 - 镀层silver plated

产品信息

SPG25类型Machined
连接器性别SKT系列Han Q
产品子类型Contacts附件类型Contact
适配器系列Han Com测量范围Han 40A 压接、Han C、Han CC、Han CD、Han Com、Han HSC
单元数量1

环境参数

机械寿命500cycles工作温度125
