点击放大查看

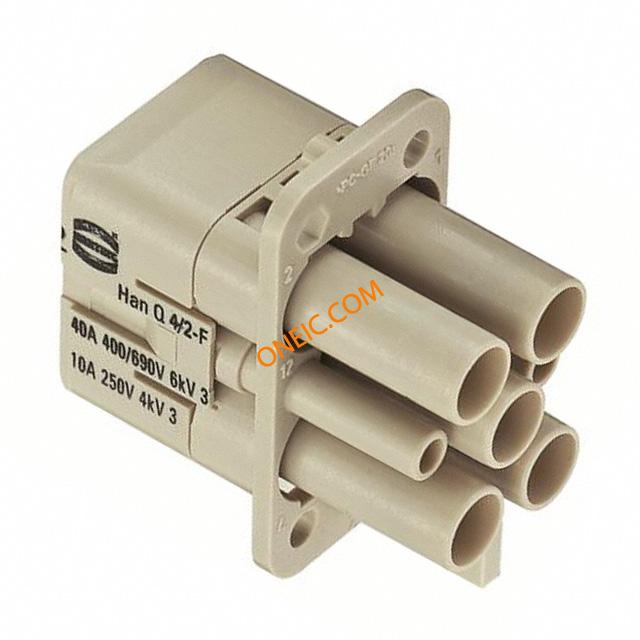

09120063141

制造商	HARTING Technology Group
描述	HAN Q 4/2 FEMALE CRIMP TERM Heavy Duty Power Connectors FEMALE INSERT HAN Q4/2 CRIMP TERM FEMALEINSERTHANQ4/2 Han Q Female Insert: Han Q 4/2 Female Insert Crimp Term Harting Han Q 系列 3行 7针插座电源连接器
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	006 09 09-12-006-3141 12 3141	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

RoHS Compliant

材料阻燃等级

UL94 V-0

电气参数

额定电压

690 V

最大额定电流

40 A

机械参数

颜色	Gray	包装方式	Bulk
方向	直	重量（g）	17.00000
触头类型	Han® C, Han® D	连接器类型	Insert without Contacts
安装样式	Straight	排数	3
插入力	Female	壳体材料	Polycarbonate (PC)
端接样式	Crimp	触点数	7
位数	4+2+Ground

产品信息

类型	CONNECTORS	连接器性别	Female
系列	Han Q	CAD图纸	3D CAD 模型
产品子类型	Inserts

环境参数

工作温度

-40°C ~ 125°C

相关型号

09140010311

Harting Technology Group

Connector Accessories 1 POS Hood Metal Heavy Duty Power Connectors HAN M25 CARRIER HOOD METAL SIDE ENTRY HAN-MODULAR COMPACT CARRIER HOOD Connector, carrier hood, top entry Han1Modcarrierhood Han-Modular Metal Hood: Han 1Mod carrier hood Harting HAN Modular 系列顶入电源连接器

¥125.5960

详情

09120080527

Harting Technology Group

Connector Accessories Hood Metal Heavy Duty Power Connectors PLASTIC HOOD STD BLK 1 LVR LCKING HAN Q 8/0 HOOD SIDE PG 16

¥48.2718

详情

09150006203

Harting Technology Group

Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN D FEMALE AWG 20 SILVER PLATED CRIMP HAN D F CRIMP CONTACT AG AWG 20 Han-Com(R) crimp socket contact,0.5sq.mm Connector;FemaleInsert;SilverPlated20AWGCrimpContact;HanDDModular Contact; female; 0.5mm2; Han D; silver plated; crimped; 10A; 3um Han D Female Contact: Han D F Crimp Contact Ag AWG 20 Harting Han Contacts 系列母座压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器

¥2.0580

详情

09150006205

Harting Technology Group

Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN 10A FEMAL AWG 18 SILVER PLATED HAN D F CRIMP CONTACT AG Han-Com(R) crimp socketcontact,0.75sq.mm Han-Com(R)crimpsocketcontact,0.75sq.mm Contact; female; 0.75mm2; Han D; silver plated; crimped; 10A; 3um Han D Female Contact: Han D F Crimp Contact Ag Harting Han Contacts 系列母座压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器

¥2.1070

详情

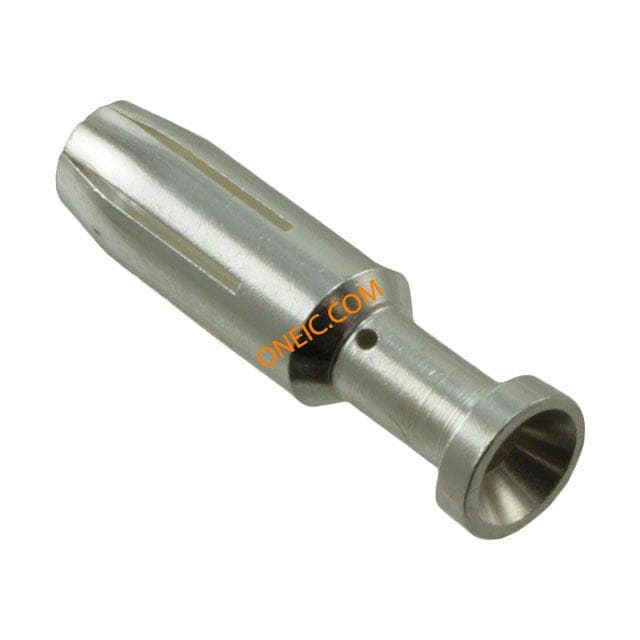

09320006207

Harting Technology Group

Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN HsC FEMALE CRIMP 4mm2 CROSS SECTION HAN HSC FEMALE CRIMP CONT 12 AWG 09320006207 Connector;FemaleInsert;SilverPlated12AWGPowerContact;HanCModular Contact; female; 4mm2; Han Com; silver plated; crimped; 40A; 3mΩ Han C Contacts Female: Han HsC Female Crimp Contacts 12 AWG

¥7.8890

详情

09150006202

Harting Technology Group

Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN D FEMALE AWG 18 SILVER PLATED CRIMP HAN D F CRIMP CONTACT AG AWG 18 Han-Com(R) crimp socket contact,1sq.mm Connector;FemaleInsert;SilverPlated18AWGCrimpContact;HanDDModular Contact; female; 1mm2; Han D; silver plated; crimped; 10A; 3um Han D Female Contact: Han D F Crimp Contact Ag AWG 18 Harting Han Contacts 系列母座压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器

¥2.1560

详情

09120063041

Harting Technology Group

Conn Housing M 7 POS Crimp ST Heavy Duty Power Connectors MALE INSERT HAN Q4/2 CRIMP TERM HAN Q 4/2 MALE INSERT CRIMP TERM HeavyDutyPowerConnectorsMALEINSERTHANQ4/2CRIMPTERM Han Q Male Insert: Han Q 4/2 Male Insert Crimp Term Harting Han Q 系列 3行 7针插头电源连接器

¥110.0920

详情

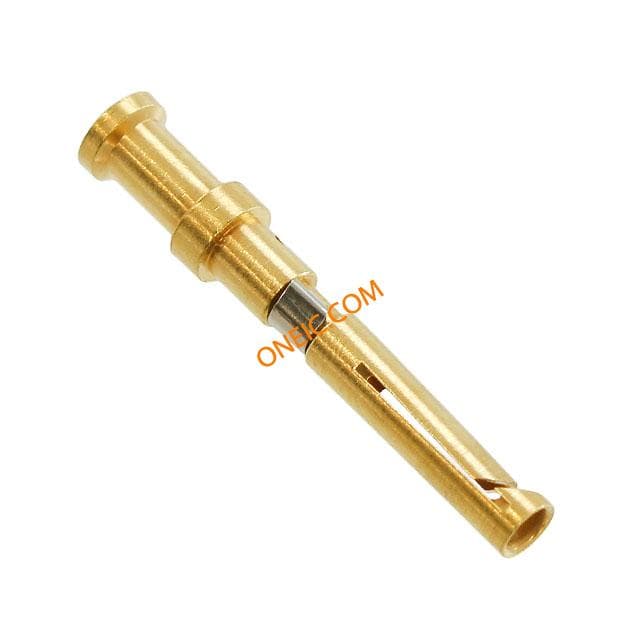

09150006222

Harting Technology Group

Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN 10A FEMAL AWG 18 GOLD PLATED HAN D F CRIMP CONTACT AU AWG 18 HAND(FemaleCrimpContacts)18Awg Contact; female; 1mm2; Han D; nickel plated, gold plated; crimped Han D Female Contact: Han D F Crimp Contact Au AWG 18

¥6.3504

详情

09150006206

Harting Technology Group

Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN D FEMALE AWG 14 SILVER PLATED CRIMP HAN D F CRIMP CONTACT AG AWG 14 Han D Female Crimp Contact Ag AWG 14 Connector;Female Insert;Silver Plated 14 AWG Crimp Contact;Han DD Modular Connector;FemaleInsert;SilverPlated14AWGCrimpContact;HanDDModular Contact; female; 2.5mm2; Han D; silver plated; crimped; 10A; 3um Han D Female Contact: Han D F Crimp Contact Ag AWG 14 Harting Han Contacts 系列 1针插座电源连接器外壳 , 电缆安装

¥2.3618

详情

09140010301

Harting Technology Group

Connector Accessories 1 POS Housing Metal Heavy Duty Power Connectors HAN HOUSING BULKHEAD METAL 1 LEVER HAN-MODULAR COMPACT HOUSING Connector, bulkhead mounting, 1 lever HAN1MODBASEPANEL Han-Modular Metal Hood: Han 1Mod Base Panel Harting HAN Modular 系列电源连接器

¥120.9040

详情

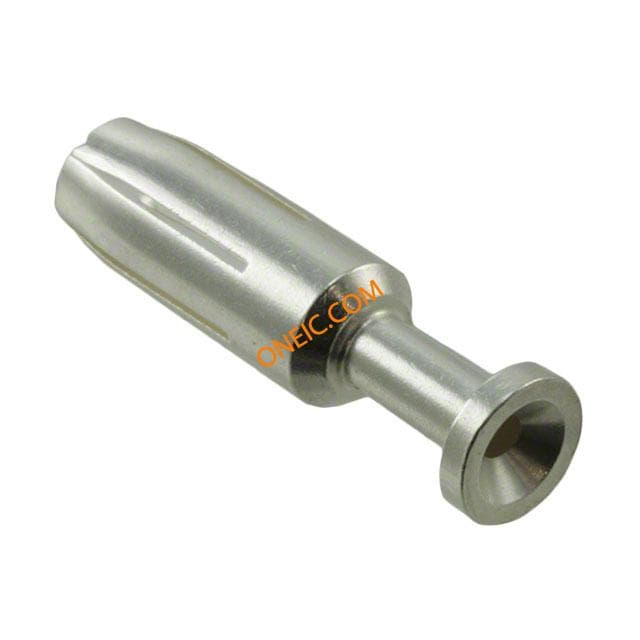

09320006204

Harting Technology Group

Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN HsC FEMALE CRIMP 1.5mm2 CROSS SECTION HAN HSC FEMALE CRIMP CONT 16 AWG Han HsC Female Crimp Contact 16 AWG Conn Contact F 1 POS ST 1 Terminal 1 Port HANHSCFEMALECRIMPCONTACT16AWG Contact; female; 1.5mm2; Han Com; silver plated; crimped; 40A; 3mΩ Harting Han Contacts 系列母座压接触点 , 额定电流 40A/ 830 V, 适用于大负荷电源连接器

¥18.1200

详情

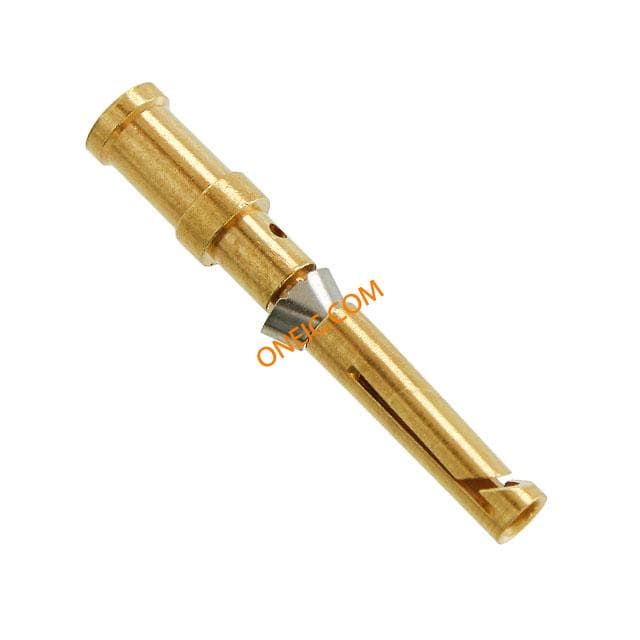

09150006221
