点击放大查看

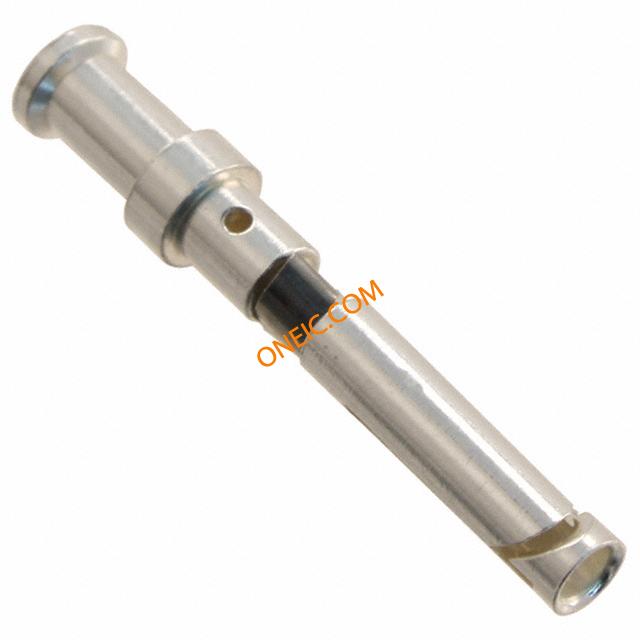

09150006202

制造商	HARTING Technology Group
描述	Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN D FEMALE AWG 18 SILVER PLATED CRIMP HAN D F CRIMP CONTACT AG AWG 18 Han-Com(R) crimp socket contact,1sq.mm Connector;FemaleInsert;SilverPlated18AWGCrimpContact;HanDDModular Contact; female; 1mm2; Han D; silver plated; crimped; 10A; 3um Han D Female Contact: Han D F Crimp Contact Ag AWG 18 Harting Han Contacts 系列母座压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	000 09 09-15-000-6202 15 6202	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	100

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

电压	250V	额定电压	250 V
最大额定电流	10A	反向漏电流 @ Vr	10A

机械参数

深度	3.5	重量	0.64 g
包装方式	Bulk	导线线规	18 AWG
屏蔽类型	No	端接方式	Crimp
重量（g）	0.64000	触头类型	Power
安装类型	Cable Mount	插针或插孔	Socket
连接器类型	Connector Rectangular	接触镀层	Silver
插入力	Female	材料表面处理	Silver
触头材料	Copper Alloy	总长度	21.5
包装数量	100	剥线长度（范围）	8mm
连接器 - 电缆	contact	端接样式	Crimp
接触件端接	Crimp	镀层厚度（通用）	3µm
接触镀层厚度	118.1µin (3.00µm)	线规或范围 - AWG	18
线规或范围 - mm²	1mm2	触点材料 - 镀层	silver plated

产品信息

SPG	100	类型	18AWG
连接器性别	SKT	系列	Han-Q
CAD图纸	3D CAD Model	产品子类型	Contacts
附件类型	Crimp Contact	适配器系列	Han D
测量范围	Han CD, Han Com, Han D, Han DD, Han DDD, Han Q	单元数量	1
适用产品/相关产品	Heavy Duty Power Connector
