点击放大查看

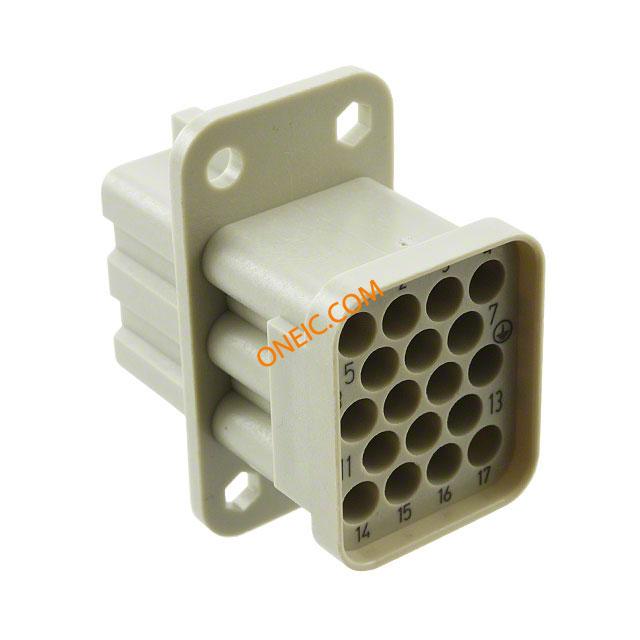

09120173101

制造商	HARTING Technology Group
描述	Conn Housing F 17Power/1Ground POS Crimp ST Cable Mount Heavy Duty Power Connectors FEMALE INSERT 17 POLE CRIMP TERM HAN Q 17/0 FEMALE CRIMP TERM HANQ17/0FEMALEINSERTCRIMPTERM HANQ COMPACT MODULE FEMALE CRMP 17+PE 10A/250V Harting Han Q 系列 18针插座电源连接器 , 电缆安装
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	017 09 09-12-017-3101 12 3101	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
材料阻燃等级	UL94 V-0

电气参数

额定电压	250V	最大额定电流	10A
最小输入电压	250V

机械参数

颜色	Gray	深度	36.7
高度	22.4	包装方式	Bulk
方向	直	触头类型	Han®
安装类型	Straight	连接器类型	Insert without Contacts
安装样式	Straight	插入力	Female
壳体材料	Polycarbonate (PC)	总长度	41.6
端接样式	Crimp	触点数	17Power/1Ground
位数	17

产品信息

类型	Housing	连接器性别	F
系列	Han Q	CAD图纸	3D CAD 模型
产品子类型	Inserts

环境参数

工作温度

-40°C ~ 125°C

相关型号

09150006225

Harting Technology Group

Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors FEMALE CONTACT STD GOLD PLATED HAN D F CRIMP CONTACT GOLD HanDFCrimpContact0,75mmÂ²Au Contact; female; 0.75mm2; Han D; nickel plated, gold plated; 10A Han D Female Contact: Han D F Crimp Contact Au Harting Han Contacts 系列母座压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器

¥7.9968

详情

09120080527

Harting Technology Group

Connector Accessories Hood Metal Heavy Duty Power Connectors PLASTIC HOOD STD BLK 1 LVR LCKING HAN Q 8/0 HOOD SIDE PG 16

¥53.1760

详情

09150006204

Harting Technology Group

Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN D FMLE AWG 26-22 SILVER PLATED CRIMP HAN D F CRIMP CONTACT AWG 26-22 Han D Female Crimp Contact Ag AWG 26-22 Connector;Female Insert;Silver Plated 22-26 AWG Crimp Contact;Han DD Modular Connector;FemaleInsert;SilverPlated22-26AWGCrimpContact;HanDDModular Contact; female; 0.14÷0.37mm2; Han D; silver plated; crimped; 10A Han D Female Contact: Han D F Crimp Contact Ag AWG 26 - 22 Harting Han Contacts 系列 1 路母座触点 , 额定电流 10A

¥2.0090

详情

09120173001

Harting Technology Group

Connector Accessories Male Insert Heavy Duty Power Connectors MALE INSERT 17 POLE CRIMP TERM HAN Q 17/0 MALE CRIMP TERM HANQ17/0MALEINSERTCRIMPTERM HANQ COMPACT MODULE MALE CRIMP 17+PE 10A/250V Harting Han Q 系列电源连接器

¥100.1640

详情

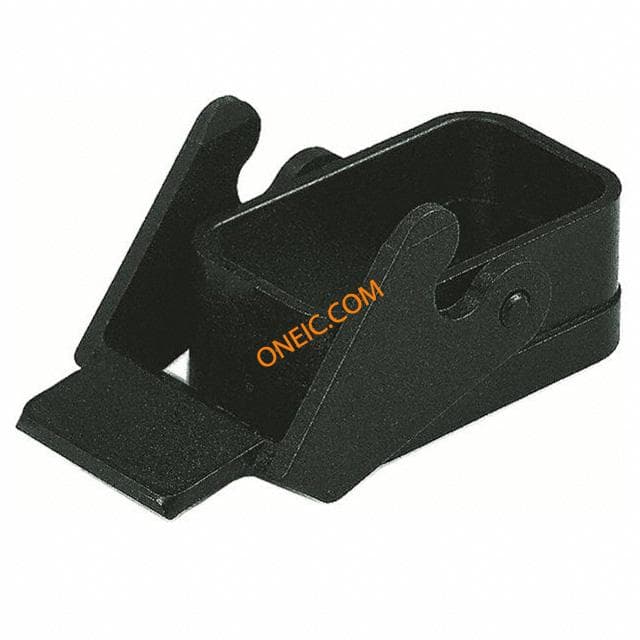

09120080327
