点击放大查看

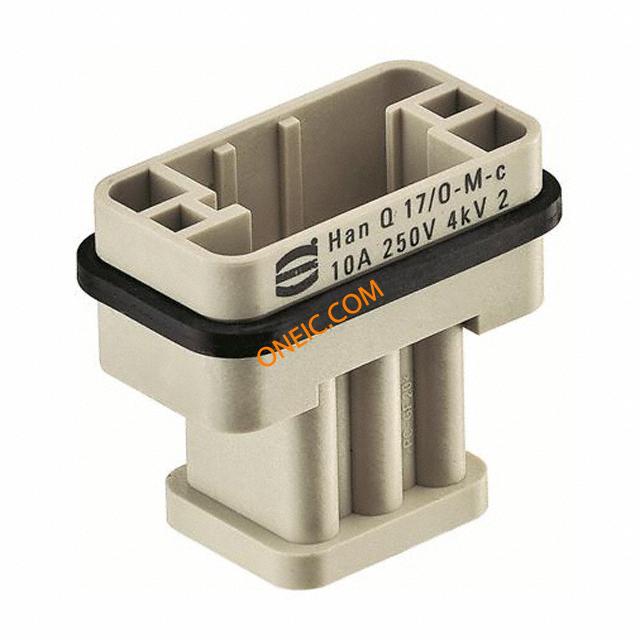

09120173001

制造商	HARTING Technology Group
描述	Connector Accessories Male Insert Heavy Duty Power Connectors MALE INSERT 17 POLE CRIMP TERM HAN Q 17/0 MALE CRIMP TERM HANQ17/0MALEINSERTCRIMPTERM HANQ COMPACT MODULE MALE CRIMP 17+PE 10A/250V Harting Han Q 系列电源连接器
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	017 09 09-12-017-3001 12 3001	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
材料阻燃等级	UL94 V-0

电气参数

额定电压

250V

最大额定电流

10A

机械参数

颜色	Gray	深度	25.9
高度	38.7	包装方式	Bulk
触头类型	Han®	连接器类型	Insert without Contacts
壳体材料	Polycarbonate (PC)	总长度	45.1
端接样式	Crimp	触点数	17
位数	17

产品信息

类型	Insert	连接器性别	Male
系列	Han Q	CAD图纸	3D CAD 模型
产品子类型	Inlets

环境参数

工作温度

-40°C ~ 125°C
