点击放大查看

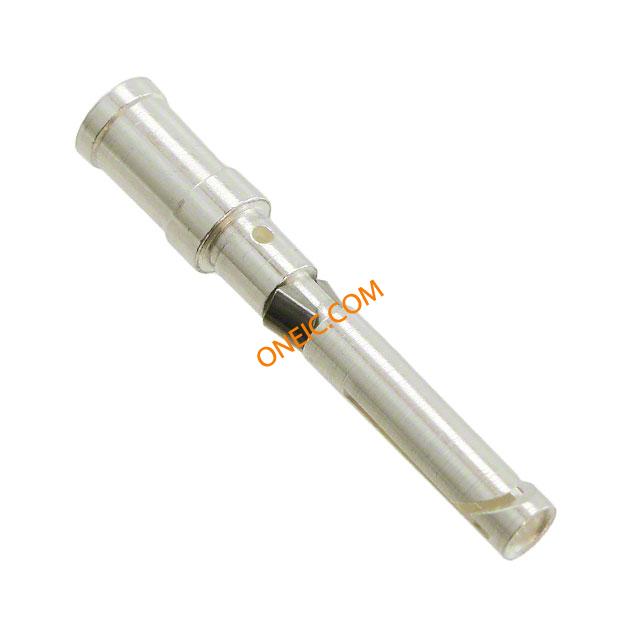

09150006206
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN D FEMALE AWG 14 SILVER PLATED CRIMP HAN D F CRIMP CONTACT AG AWG 14 Han D Female Crimp Contact Ag AWG 14 Connector;Female Insert;Silver Plated 14 AWG Crimp Contact;Han DD Modular Connector;FemaleInsert;SilverPlated14AWGCrimpContact;HanDDModular Contact; female; 2.5mm2; Han D; silver plated; crimped; 10A; 3um Han D Female Contact: Han D F Crimp Contact Ag AWG 14 Harting Han Contacts 系列 1针 插座 电源连接器外壳 , 电缆安装 |
| 分类 |
商业参数
| 零件号别名 | 000 09 09-15-000-6206 15 6206 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电压 | 250V | 最大额定电流 | 10A |
| 反向漏电流 @ Vr | 10A | ||
机械参数
| 深度 | 3.5 | 重量 | 0.95 g |
| 包装方式 | Bulk | 导线线规 | 14 AWG |
| 方向 | 直 | 屏蔽类型 | No |
| 端接方式 | Crimp | 重量（g） | 0.60000 |
| 触头类型 | Power | 安装类型 | Cable Mount |
| 插针或插孔 | Socket | 连接器类型 | Connector Rectangular |
| 接触镀层 | Silver | 插入力 | Female |
| 材料表面处理 | Silver | 触头材料 | Copper Alloy |
| 总长度 | 21.5 | 包装数量 | 35 |
| 剥线长度（范围） | 6mm | 端接排数 | 压接 |
| 连接器 - 电缆 | contact | 端接样式 | Crimp |
| 触点数 | 1 | 接触件端接 | Crimp |
| 镀层厚度（通用） | 3µm | 接触镀层厚度 | 118.1µin (3.00µm) |
| 线规或范围 - AWG | 14 | 线规或范围 - mm² | 2.5mm2 |
| 触点材料 - 镀层 | silver plated | ||
产品信息
| SPG | 35 | 类型 | 14AWG |
| 连接器性别 | SKT | 系列 | Han Q |
| 产品子类型 | Contacts | 附件类型 | Contact |
| 适配器系列 | Han D | 单元数量 | 1 |
