点击放大查看

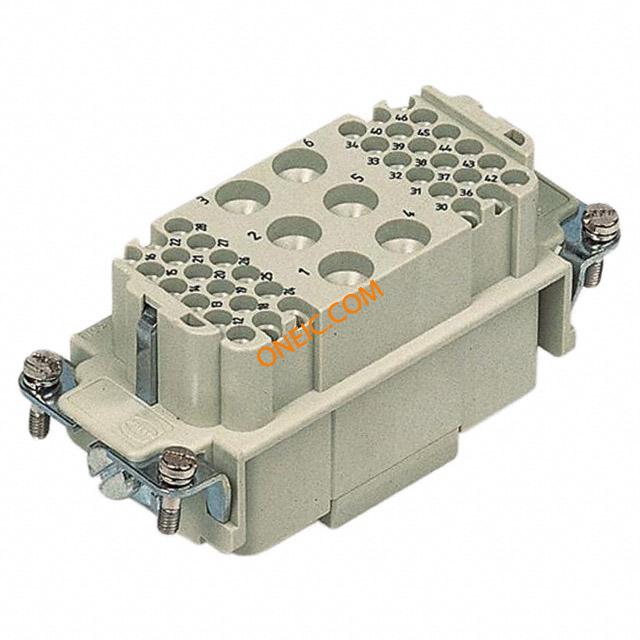

09380423101

制造商	HARTING Technology Group
描述	Conn Housing F 6Power/36Signal/1Ground POS Crimp ST Heavy Duty Power Connectors HAN K 6/36 16B FEMAL ORDER CONTACTS SEP HAN K6/36 INSERT FEMALE HANK/36insertfemale FEMALEINSERT Han HSC Female Insert: Han K6/36 insert female Harting Han K 系列 43针插座电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	042 09 09-38-042-3101 3101 38	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
材料阻燃等级	UL94 V-0

电气参数

额定电压	690 V	最大额定电流	40 A
最小输入电压	690V/160V

机械参数

尺寸	16B	颜色	Gray
深度	41.5	高度	34
包装方式	Bulk	导线线规	(10-16)/(14-26)
方向	直	重量（g）	77.00000
触头类型	Han® C, Han® D	安装类型	Straight
连接器类型	Insert without Contacts	插入力	Female
壳体材料	Polycarbonate	总长度	84.5
尺寸/外形	16B	端接样式	Crimp
触点数	6Power/36Signal/1Ground	位数	6+36+Ground

产品信息

类型	Housing	连接器性别	F
系列	Han Com	产品子类型	Inserts

环境参数

工作温度

-40°C ~ 125°C
