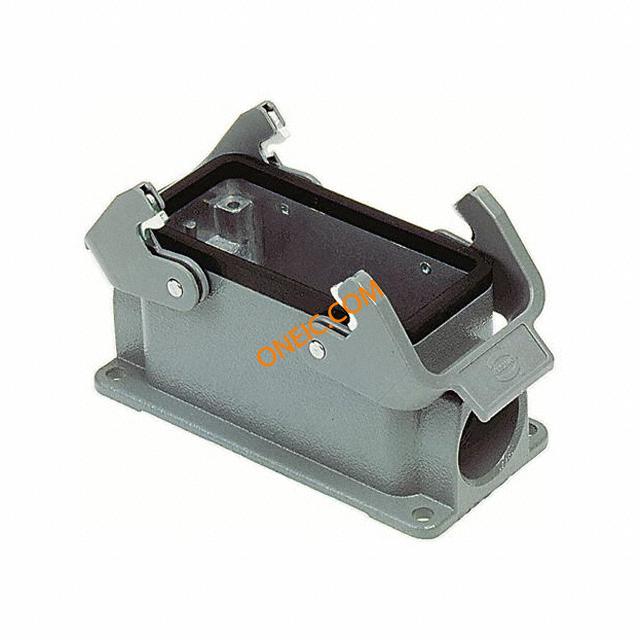

芯天下
09300161230

点击放大查看

09300161230

制造商
HARTING Technology Group
描述
HAN B BASE LC 2 LEVERS 1 P Heavy Duty Power Connectors HAN 16B SURFACE MT 1 SIDE ENTRY Surface base housing module,16B Surfacebasehousingmodule,16B Enclosure: for Han connectors; Han; size 16B; with double latch Han B Housings: Han B Base Surface LC 2 Levers 1 Entry P Harting Han B 系列 电源连接器外壳
分类
连接器解决方案重载连接器重载连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名016 09 09-30-016-1230 1230 30产品类别Heavy Duty Power Connectors
标准包装数量1工厂包装数量10

合规参数

RoHSCompliant

电气参数

连接器类型 - 电压输入closed

机械参数

尺寸16B重量0.27 kg
包装方式Bulk螺纹尺寸PG21
外壳颜色Gray安装类型flange (4 holes), on panel, on cable
衬套螺纹PG21连接器类型Base - Box Mount
外壳涂层Powder Coated安装样式Straight
封装形式size 16B插入力Female
锁定特性with double latch壳体材料Aluminum, Die Cast
包装数量2尺寸/外形4.606" L x 2.244" W x 2.197" H (117.00mm x 57.00mm x 55.80mm)
端接样式Cable触点数1
供应商器件封装for Han connectors外壳与棱镜材料aluminium alloy

产品信息

SPG2类型CONNECTORS
样式Side Entry系列Han B
产品子类型Hoods锁定位置Locking Clip on Base Bottom
适配器系列Han单元数量1
加载位置数1

环境参数

防护等级IP65 - Dust Tight, Water Resistant工作温度-40°C ~ 125°C

相关型号

09210403101

09210403101

Harting Technology Group

Conn Housing F 41 POS Crimp ST Heavy Duty Power Connectors HAN D 40P F CRIMP ORDER CONTACTS SEP HAN D 40 POS. F INSERT CRIMP Han(R) D 40P+E socket insert, 250Vac PowerConnectorInsert;Female;40 Connector: HAN; female; Han D; PIN:40; 40+PE; size 16B; UL94V-0 Han D Female Insert: Han D 40 Position F Insert Crimp Harting Han D 系列 4行 41针 插座 电源连接器

¥99.8240
详情
09000005093

09000005093

Harting Technology Group

Cable Accessories Cable Gland Blue Heavy Duty Power Connectors UNI SEAL PG21 BLUE 14-18mm CABLE DIA CONN UNI SEAL BLUE PG 21 Accessory Universal Seal Blue (PG 21) min 14 max 18 AccessoryUniversalSealBlue(PG21)min14max18 Cable Glands metal: Acces. Uni Seal Blue PG 21 min 14 max 18 Harting IP68 蓝色 金属 电缆固定头 , 14mm 至 18mm电缆直径, PG21螺纹

¥163.0800
详情
09320123101

09320123101

Harting Technology Group

Conn Rectangular F 14 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN K 12+2P 16B FEM ORDER CONTACTS SEP HAN HSC 12 POS. FEMALE INSERT Insert; Industrial Power; Standard Material (Insert); Han Com Series Insert,IndustrialPower;StandardMaterial(Insert);HanComSeries Han HSC Female Insert: Han HsC 12 Position Female Insert Harting Han Com 系列 3行 12针 插座 电源连接器

¥161.7000
详情
09300165425

09300165425

Harting Technology Group

Metal cover with Two levers on the housing Heavy Duty Power Connectors HAN 16B COVER METAL COVER HAN B PROTECT COVER DIE CAST Housing dust cover,16B Connector,ProtectionCover Protection cover; Han; size 16B; for double latch; metal Han B Accessories: Han B Protect Cover Die Cast for Base Harting Han B 系列 32P+E 底座保护盖

¥124.4890
详情
09160723101

09160723101

Harting Technology Group

Conn Housing F 72Signal/1Ground POS Crimp ST Heavy Duty Power Connectors HAN DD 72P F CRIMP ORDER CONTACTS SEP HAN DD 72 POS. F INSERT CRIMP Power Connector Insert; Female; 72 PowerConnectorInsert;Female;72 Connector: HAN; female; Han DD; PIN:72; 72+PE; size 16B; UL94V-0 Han DD Female Insert: Han DD 72 Position F Insert Crimp Harting Han DD 系列 6行 72针 72P+E极 插座 电源连接器

¥1.7347
详情
09330162701

09330162701

Harting Technology Group

Conn Rectangular F 16Power/2Ground POS Screw ST Panel Mount Heavy Duty Power Connectors HAN E 16P F SCREW SCREW TERMINATION HAN 16E-BU-S Han(R) E 16P+E skt insert,16A 400-500Vac PowerConnectorInsert;Female;16 Connector: HAN; female; E; PIN:16; 16+PE; size 16B; screw terminal Han E Female Insert: Han E 16 Position F Insert Screw Harting Han E 系列 2行 16针 16P+E极 插座 插片

¥50.4691
详情
09380423001

09380423001

Harting Technology Group

Conn Housing M 6Power/36Signal/1Ground POS Crimp ST Heavy Duty Power Connectors MALE INSERT HAN 16B CRIMP TERM HAN K 6/36 POS. M INSERT CRIMP HANK6/36POS.MINSERTCRIMP Han HSC Male Insert: Han K 6/36 Position M Insert Crimp Harting Han K 系列 43针 插头 电源连接器

¥278.8680
详情
09310062701

09310062701

Harting Technology Group

Conn Rectangular F 6 POS Screw ST Panel Mount Heavy Duty Power Connectors HAN HsB 6P F SCREW SCREW TERMINATION HAN HSB 06 POS. F INSERT SCREW Han(R) 6P+E socket insert,35A 250690V PowerConnectorInsert;Female;6 Connector: HAN; female; HSB; PIN:6; 6+PE; size 16B; screw terminal Han HsB Female Insert: Han HsB 06 Position F Insert Screw Harting Han HSB 系列 2行 7针 插座 电源连接器

¥132.4451
详情
09000005221

09000005221

Harting

HAN 10/16/24 THERMOPLASTIC LEVER Heavy Duty Power Connectors HAN LEVER 10/16/24B DOUBLE LEVERS Han10/16/24ThermoplasticLever Secondary lock; size 10B, size 16B, size 24B Han Cable Entry Protection: Han 10/16/24 Thermoplastic Lever Harting Han Easy Lock 系列 锁定杆 , 适用于大负荷电源连接器

¥34.2448
详情
09000005016

09000005016

Harting

METAL MULTIPLE CABLE SEAL PG 21 Heavy Duty Power Connectors CABLE SEAL PG 21 METAL ACCES.METALMULTIPLECABLESEALPG21 Harting 电缆密封

¥9.0600
详情

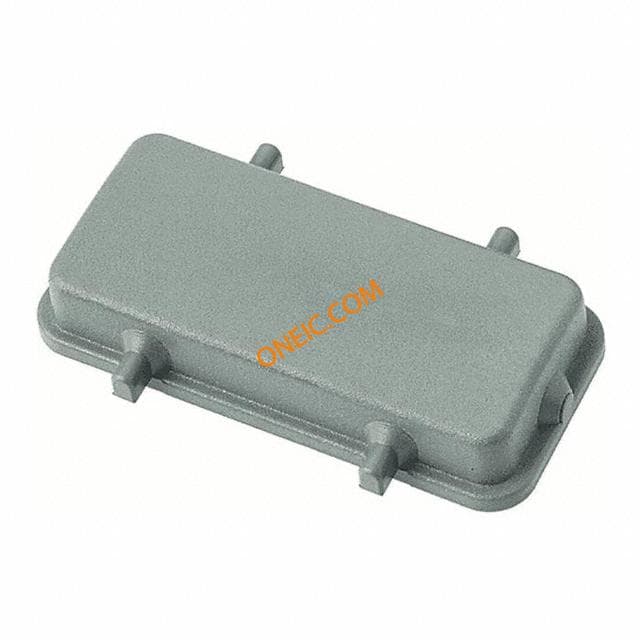

09300165405

09300165405

Harting

HAN 16B PROTECT COVER WITH PIN Heavy Duty Power Connectors HAN 16B COVER THERMOPLASTIC COVER Protection cover; Han; size 16B; for double latch; thermoplastic Han B Accessories: Han 16B Protect Cover with pin Thermopla

¥72.4404
详情
09320323101

09320323101

Harting

HAN EE 32POS INSERT FEMALE CRIMP Heavy Duty Power Connectors HAN EE 32P F CRIMP ORDER CONTACTS SEP Han(R) EE 32P+E socket insert,16A 500Vac Connector,FemaleInsert,32Positions Connector: rectangular; female; Han EE; PIN:32; size 16B; 16A; 500V Han EE Female insert Crimp: Han EE 32 Position Insert Female Crimp Harting Han EE 系列 4行 33针 插座 电源连接器

¥172.1400
详情
09330162611

09330162611

Harting

HAN 32E MALE INSERT (17-32) Heavy Duty Power Connectors HAN E 32P M SCREW SCREW TERMINATION Han E 17-32P+E plg insert,16A 400-500Vac Connector,MaleInsert,32Contacts Connector: HAN; male; E; PIN:16; 16+PE; size 32B (2 x 16B); 16A Han E Male Insert: Han 32E male insert (17-32) Harting Han E 系列 2行 16针 插头 电源连接器

¥80.9880
详情
09300009803

09300009803

Harting

Heavy Duty Power Connectors GASKET BLK HAN 16B SELF - CLINGING GASKET HAN SIZE Han B Accessories: self - clinging gasket Han size 16B

¥10.1320
详情
09300009934

09300009934

Harting

Heavy Duty Power Connectors L-SEAL FOR HOODS CABLE TO CABLE HAN 16B SEALING CABLE TO CABLE H

¥44.1320
详情

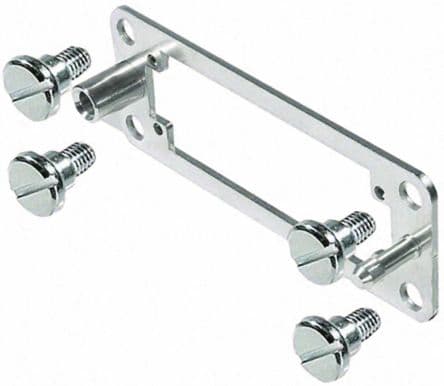

09300009943

09300009943

Harting

Heavy Duty Power Connectors PROFILE SEAL HAN 16B HAN B 16 PROFILE SEALING Harting Han B 系列 衬垫

¥39.9160
详情
09310062611

09310062611

Harting

Heavy Duty Power Connectors MALE INSERT 12 POLES SCW TERM HAN HSB 06 POS. M INSERT SCREW 7 INSERT MALE 6POS+1GND SCREW Han HsB Male Insert: Han HsB 06 Position M Insert Screw 7-12 Harting Han HSB 系列 6针 插头 电源连接器

¥392.2919
详情
09310062711

09310062711

Harting

Heavy Duty Power Connectors FEMALE INSERT 12 POLES SCW TERM HAN HSB 06 POS. F INSERT SCREW 7 INSERT FEMALE 6POS+1GND SCREW Connector: HAN; female; Han; PIN:6; screw terminals; size 16B; 35A sale Han HsB Female Insert: Han HsB 06 Position F Insert Screw 7-12

¥433.4259
详情
09330162772

09330162772

Harting

Heavy Duty Power Connectors FEMALE INSERT HAN 16ESS CAGE CLMP HAN ESS 16 POS. F INSERT DOUBLE INSERT FEMALE 16POS+1GND PUSH IN HanESS16Pos.FInsertDoubleCageCla Connector: HAN; female; Han ESS; PIN:16; 16+PE; size 16B; 16A; 500V Han E Female Insert: Han ESS 16 Position F Insert Double Cage Cla Harting HAN ESS 系列 16针 插座 电源连接器

¥541.1440
详情
暂无图片

09370009948

Harting

Heavy Duty Power Connectors GASKET HAN 16B BLACK HAN M 16 GASKET (ON BOTTOM)

¥218.2800
详情
