点击放大查看

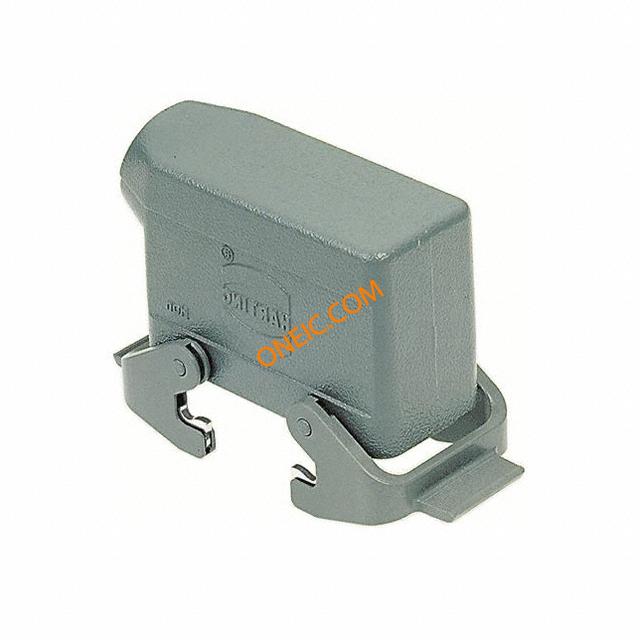

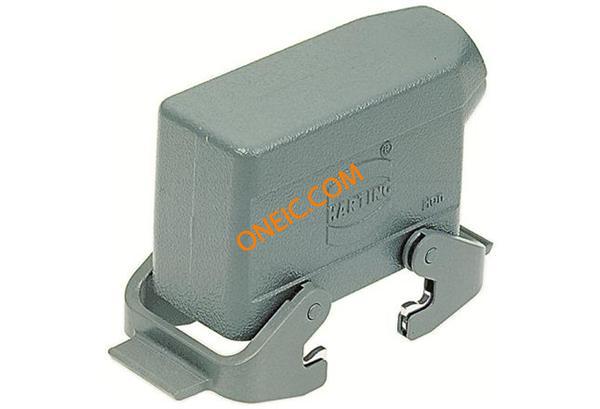

09300161530

制造商	HARTING Technology Group
描述	HAN B HOOD SIDE LC 2 LEVER PG 21 Heavy Duty Power Connectors METAL HOOD HAN 16B 2 LVR LCKING Low type side entry 2lever hood,PG21 16B HanMHoodSideEntryHC4PegsPG29 HOODSIDEENTRYSIZE16B Enclosure: for Han connectors; Han; size 16B; for cable; angled Han B Hoods: Han B Hood Side Entry LC 2 Levers PG 21 Harting Han B 系列侧入电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	016 09 09-30-016-1530 1530 30	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Compliant

机械参数

尺寸	16B	重量	0.24 kg
包装方式	Bulk	方向	angled
螺纹尺寸	PG21	重量（g）	230.00000
外壳颜色	Gray	安装类型	on cable
衬套螺纹	PG21	连接器类型	Hood
外壳涂层	Powder Coated	安装样式	Side Entry
封装形式	size 16B	锁定特性	with double latch
壳体材料	Aluminum, Die Cast	包装数量	1
尺寸/外形	3.680" L x 1.693" W x 2.461" H (93.50mm x 43.00mm x 62.50mm)	触点数	1
供应商器件封装	for Han connectors	外壳与棱镜材料	aluminium alloy

产品信息

SPG	1	类型	CONNECTORS
样式	Side Entry	系列	Han B
产品子类型	Hoods	锁定位置	Locking Clip on Hood
附件类型	Hood	适配器系列	Han
单元数量	1

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C

相关型号

09320323001

Harting Technology Group

Conn Housing M 33 POS Crimp ST Heavy Duty Power Connectors HAN EE 32P M CRIMP ORDER CONTACTS SEP HAN 32EE CRIMP TERM INSERT MALE RECTANGULAR HAN INSERT, PLUG 32WAY CRIMP Connector,MaleInsert,32Contacts Connector: rectangular; male; Han EE; PIN:32; size 16B; 16A; 500V Han EE Male Insert Crimp: Han 32EE Crimp Term Insert Male Harting Han EE 系列 4行 32针 32P+E极插头插入式插件

¥84.0840

详情

09210403101

Harting Technology Group

Conn Housing F 41 POS Crimp ST Heavy Duty Power Connectors HAN D 40P F CRIMP ORDER CONTACTS SEP HAN D 40 POS. F INSERT CRIMP Han(R) D 40P+E socket insert, 250Vac PowerConnectorInsert;Female;40 Connector: HAN; female; Han D; PIN:40; 40+PE; size 16B; UL94V-0 Han D Female Insert: Han D 40 Position F Insert Crimp Harting Han D 系列 4行 41针插座电源连接器

¥99.8240

详情

09000005093

Harting Technology Group

Cable Accessories Cable Gland Blue Heavy Duty Power Connectors UNI SEAL PG21 BLUE 14-18mm CABLE DIA CONN UNI SEAL BLUE PG 21 Accessory Universal Seal Blue (PG 21) min 14 max 18 AccessoryUniversalSealBlue(PG21)min14max18 Cable Glands metal: Acces. Uni Seal Blue PG 21 min 14 max 18 Harting IP68 蓝色金属电缆固定头 , 14mm 至 18mm电缆直径, PG21螺纹

¥164.0184

详情

09320123101

Harting Technology Group

Conn Rectangular F 14 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN K 12+2P 16B FEM ORDER CONTACTS SEP HAN HSC 12 POS. FEMALE INSERT Insert; Industrial Power; Standard Material (Insert); Han Com Series Insert,IndustrialPower;StandardMaterial(Insert);HanComSeries Han HSC Female Insert: Han HsC 12 Position Female Insert Harting Han Com 系列 3行 12针插座电源连接器

¥161.7000

详情

09160723101

Harting Technology Group

Conn Housing F 72Signal/1Ground POS Crimp ST Heavy Duty Power Connectors HAN DD 72P F CRIMP ORDER CONTACTS SEP HAN DD 72 POS. F INSERT CRIMP Power Connector Insert; Female; 72 PowerConnectorInsert;Female;72 Connector: HAN; female; Han DD; PIN:72; 72+PE; size 16B; UL94V-0 Han DD Female Insert: Han DD 72 Position F Insert Crimp Harting Han DD 系列 6行 72针 72P+E极插座电源连接器

¥61.5939

详情

09330162701

Harting Technology Group

Conn Rectangular F 16Power/2Ground POS Screw ST Panel Mount Heavy Duty Power Connectors HAN E 16P F SCREW SCREW TERMINATION HAN 16E-BU-S Han(R) E 16P+E skt insert,16A 400-500Vac PowerConnectorInsert;Female;16 Connector: HAN; female; E; PIN:16; 16+PE; size 16B; screw terminal Han E Female Insert: Han E 16 Position F Insert Screw Harting Han E 系列 2行 16针 16P+E极插座插片

¥108.8680

详情

09380423001

Harting Technology Group

Conn Housing M 6Power/36Signal/1Ground POS Crimp ST Heavy Duty Power Connectors MALE INSERT HAN 16B CRIMP TERM HAN K 6/36 POS. M INSERT CRIMP HANK6/36POS.MINSERTCRIMP Han HSC Male Insert: Han K 6/36 Position M Insert Crimp Harting Han K 系列 43针插头电源连接器

¥278.8680

详情

09310062701

Harting Technology Group

Conn Rectangular F 6 POS Screw ST Panel Mount Heavy Duty Power Connectors HAN HsB 6P F SCREW SCREW TERMINATION HAN HSB 06 POS. F INSERT SCREW Han(R) 6P+E socket insert,35A 250690V PowerConnectorInsert;Female;6 Connector: HAN; female; HSB; PIN:6; 6+PE; size 16B; screw terminal Han HsB Female Insert: Han HsB 06 Position F Insert Screw Harting Han HSB 系列 2行 7针插座电源连接器

¥203.3200

详情

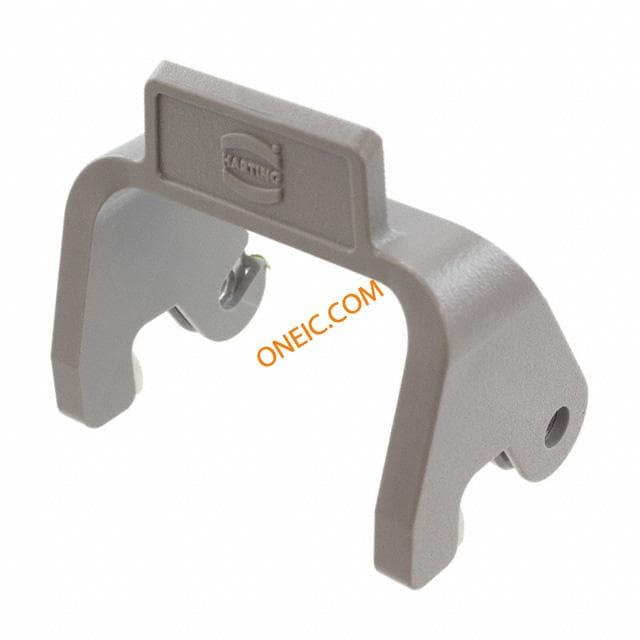

09000005221
