点击放大查看

19300240272

制造商	HARTING Technology Group

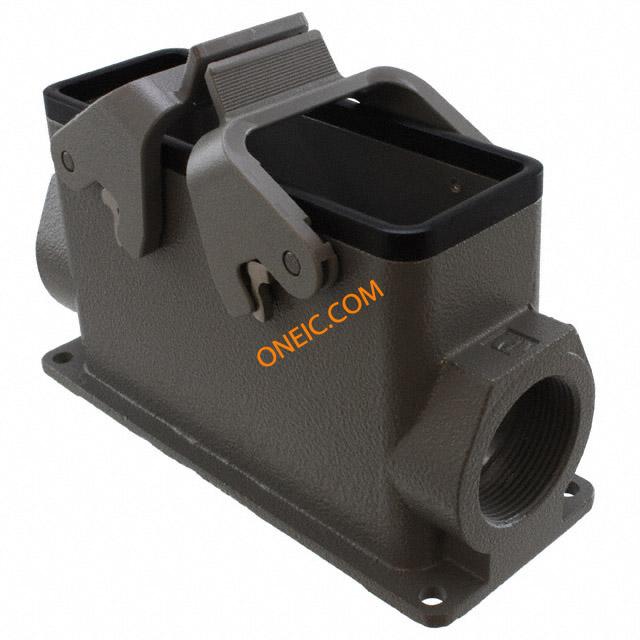

描述	HAN B BASE HC 2 LEVERS 2 X M32 Heavy Duty Power Connectors SURFACE MOUNTING HSG HAN 24B 2 SIDE ENTRY High SMT 24B housing w/2levers,M32 SIDEENTRYHOOD,SIZE24B,METAL,Each Enclosure: for Han connectors; Han; size 24B; with double latch Han B Housings: Han B Base Surface HC 2 Levers 2 x M32 Harting Han B 系列电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3131	零件号别名	019 019-30-024-0272 024 0272 30
产品类别	Heavy Duty Power Connectors	标准包装数量	1
工厂包装数量	1

合规参数

RoHS

Compliant

电气参数

频率

Side Clip on Base Bottom

连接器类型 - 电压输入

high

机械参数

尺寸	16B	重量	0.47 kg
包装方式	Bulk	螺纹尺寸	M32
外壳表面处理	Powder Coated	外壳颜色	Gray
衬套螺纹	M32	连接器类型	Base - Box Mount
外壳涂层	Powder Coated	安装样式	flange (4 holes), for panel mounting, for cable
封装形式	size 24B	锁定特性	with double latch
壳体材料	Aluminum, Die Cast	包装数量	3
尺寸/外形	5.669" L x 2.244" W x 3.181" H (144.00mm x 57.00mm x 80.80mm)	端接样式	Screw
外部壳体颜色	Gray	供应商器件封装	for Han connectors
外壳与棱镜材料	aluminium alloy

产品信息

SPG	3	类型	CONNECTORS
样式	Side Entry	系列	Han B
产品特性	Feed Through	CAD图纸	3D CAD Model
主要用途	Feed Through	产品子类型	Receptacle Housings
锁定位置	Side Clip on Base Bottom	附件类型	Hood
适配器系列	Han	单元数量	1
加载位置数	2

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
