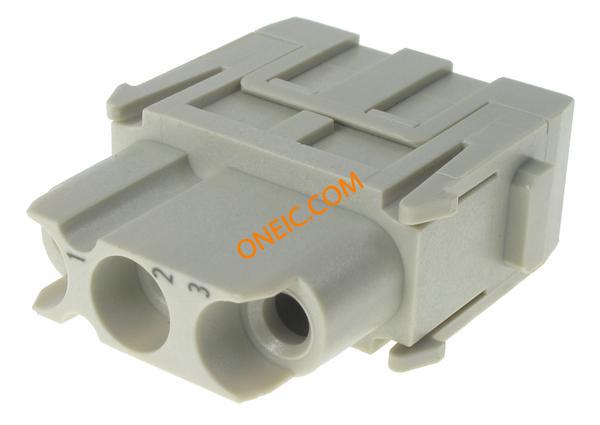

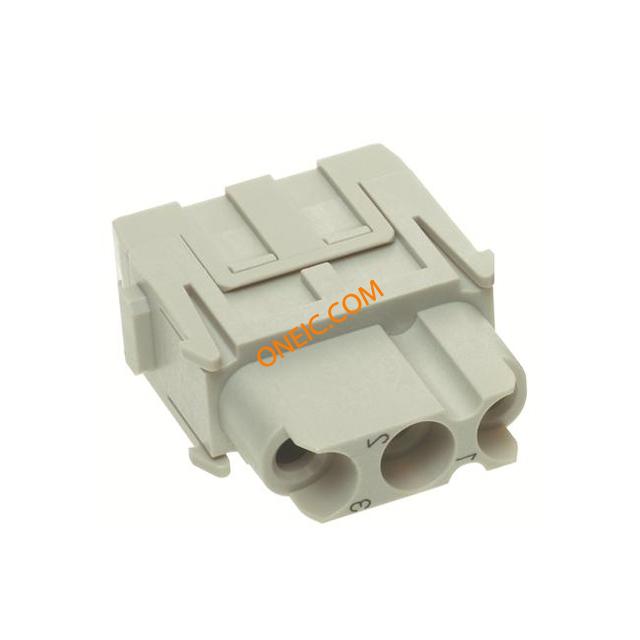

09140033101
| 制造商 | |
| 描述 | Conn Housing M 3 POS Crimp ST Heavy Duty Power Connectors 3P FEMALE MODULE HAN MODULAR C HAN C MODULE, CRIMP FEMALE HanC female contact module,3 pos,5mm HanCModular;FemaleInsert;3CrimpContacts;CableDia7.5mm;40A;400/690V Connector: HAN; module; female; Han Modular C; PIN:3; crimped; 40A Han-Modular Modules: Han Modular 3 C Module female 40A Harting HAN Modular 系列 3 行 3 路 母座 RJ45-Rangierfeld , 额定电流 40A/ 690 V |
| 分类 |
商业参数
| 零件号别名 | 003 09 09-14-003-3101 14 3101 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 2 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 32A |
| 最小输入电压 | 690V | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Gray | 深度 | 40.7 |
| 高度 | 34.2 | 重量 | 0.01 kg |
| 包装方式 | Bulk | 重量（g） | 13.50000 |
| 触头类型 | Han® C | 安装类型 | Straight |
| 电缆直径 | 5mm | 连接器类型 | Module without Contacts |
| 排数 | 3 | 插入力 | Female |
| 总宽度 | 1 | 壳体材料 | Polycarbonate (PC) |
| 总长度 | 14.6 | 包装数量 | 2 |
| 连接器 - 电缆 | module | 端接样式 | Crimp |
| 触点数 | 3 | 位数 | 3 |
| 线规或范围 - AWG | 16-8 | ||
产品信息
| SPG | 2 | 类型 | Housing |
| 连接器性别 | M | 系列 | Han Modular |
| CAD图纸 | 3D CAD Model | 产品子类型 | Inserts |
| 附件类型 | 模块 | 适配器系列 | Han Modular C |
| 测量范围 | Han C | 单元数量 | 1 |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
相关型号

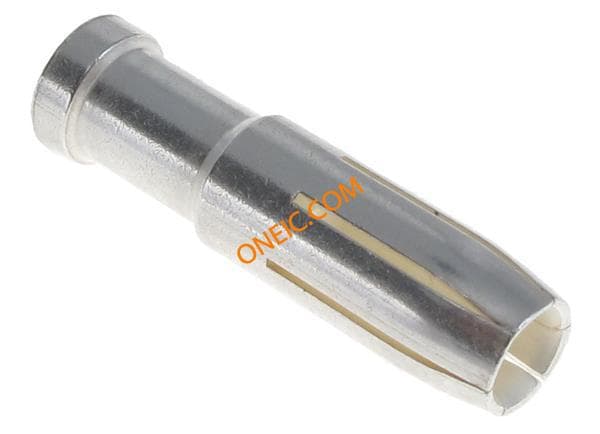

09320006208
Harting Technology Group
Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN HsC FEMALE CRIMP 6mm2 CROSS SECTION HAN HSC FEMALE CRIMP CONT 10 AWG Han HsC Female Crimp Contact 10 AWG Connector;Female Insert;Silver Plated 10 AWG Power Contact;Han C Modular Conn Contact F 1Power POS Crimp ST 1 Terminal 1 Port Connector;FemaleInsert;SilverPlated10AWGPowerContact;HanCModular Contact; female; 6mm2; Han Com; silver plated; crimped; 40A; 3mΩ Han C Contacts Female: Han HsC Female Crimp Contact 10 AWG Harting Han Contacts 系列 1 路 母座 触点

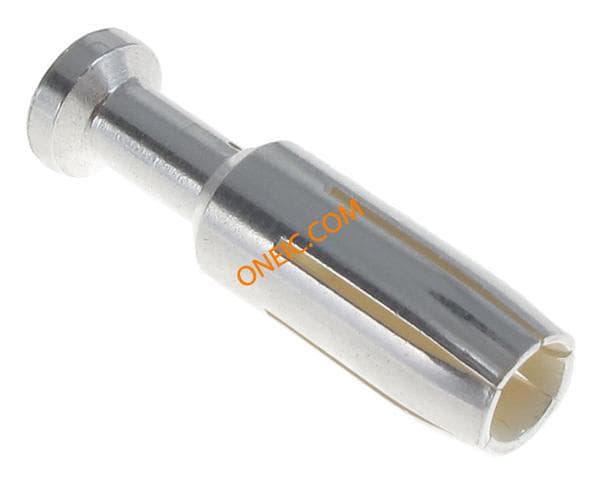

09320006205
Harting Technology Group
Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN HsC FEMALE CRIMP 2.5mm2 CROSS SECTION HAN HSC FEMALE CRIMP CONT Han HsC Female Crimp Contact 14 AWG Connector;Female Insert;Silver Plated 14 AWG Power Contact;Han C Modular Conn Contact F 1 POS ST 1 Terminal 1 Port Connector;FemaleInsert;SilverPlated14AWGPowerContact;HanCModular Contact; female; 2.5mm2; Han Com; silver plated; crimped; 40A; 3mΩ Han C Contacts Female: Han HsC Female Crimp Contact, 2.5mm2 Harting Han Contacts 系列 1 路 母座 触点
09320006207
Harting Technology Group
Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN HsC FEMALE CRIMP 4mm2 CROSS SECTION HAN HSC FEMALE CRIMP CONT 12 AWG 09320006207 Connector;FemaleInsert;SilverPlated12AWGPowerContact;HanCModular Contact; female; 4mm2; Han Com; silver plated; crimped; 40A; 3mΩ Han C Contacts Female: Han HsC Female Crimp Contacts 12 AWG

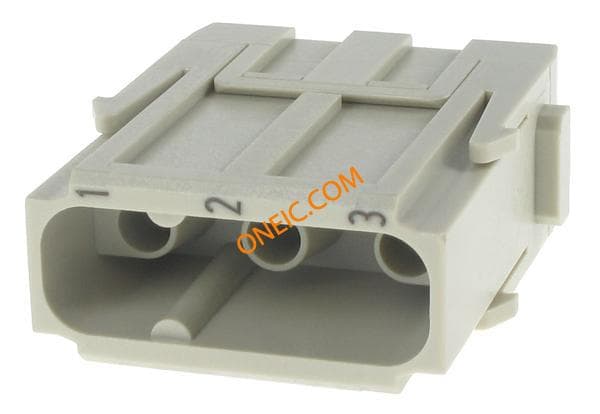

09140033001
