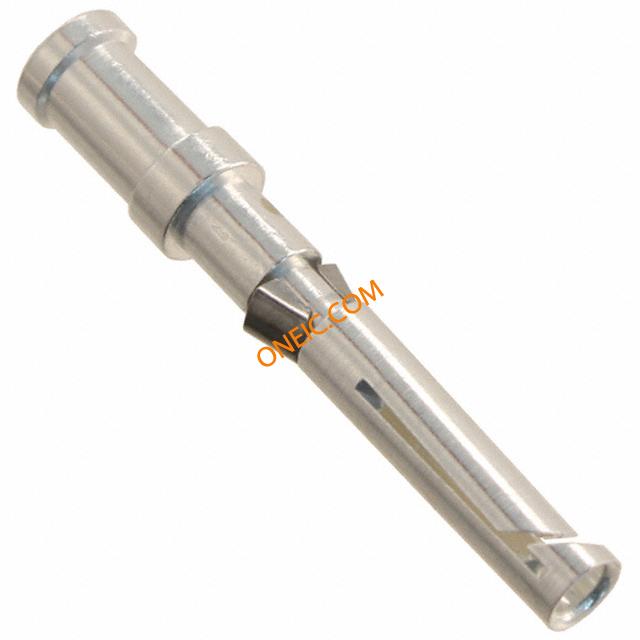

09150006201

制造商	HARTING Technology Group
描述	Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN D FEMALE AWG 16 SILVER PLATED CRIMP HAN D F CRIMP CONTACT AG AWG 16 Han-Com(R) crimp socket contact,1.5sq.mm 09150006201 CRIMP SOCKET CONTACT Connector;FemaleInsert;SilverPlated16AWGCrimpContact;HanDDModular Contact; female; 1.5mm2; Han D; silver plated; crimped; 10A; 3um Han D Female Contact: Han D F Crimp Contact Ag AWG 16 Harting Han Contacts 系列母座压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器
分类	工具与焊接解决方案压接钳、压接机、压力机压接钳

对参数有疑问？问 AI 助手

商业参数

零件号别名	000 09 09-15-000-6201 15 6201	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	100

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85366910

电气参数

电压	250V	额定电压	250 V
最大额定电流	10A	反向漏电流 @ Vr	10A

机械参数

深度	3.5	重量	0.00068
包装方式	Bulk	导线线规	16 AWG
屏蔽类型	No	端接方式	Crimp
重量（g）	0.64000	触头类型	Power
安装类型	Cable Mount	插针或插孔	Socket
连接器类型	Connector Rectangular	接触镀层	Silver
插入力	Female	材料表面处理	Silver
触头材料	Copper Alloy	总长度	21.5
包装数量	300	剥线长度（范围）	8mm
连接器 - 电缆	contact	端接样式	Crimp
第一触头极性	:Socket	接触件端接	Crimp
镀层厚度（通用）	3µm	接触镀层厚度	118.1µin (3.00µm)
线规或范围 - AWG	16	线规或范围 - mm²	1.5mm2
触点材料 - 镀层	silver plated

产品信息

SPG	300	类型	16AWG
连接器性别	SKT	系列	Han-Q
CAD图纸	3D CAD Model	产品子类型	Contacts
附件类型	Crimp Contact	适配器系列	Han D
单元数量	1	适用产品/相关产品	Heavy Duty Power Connector
