点击放大查看

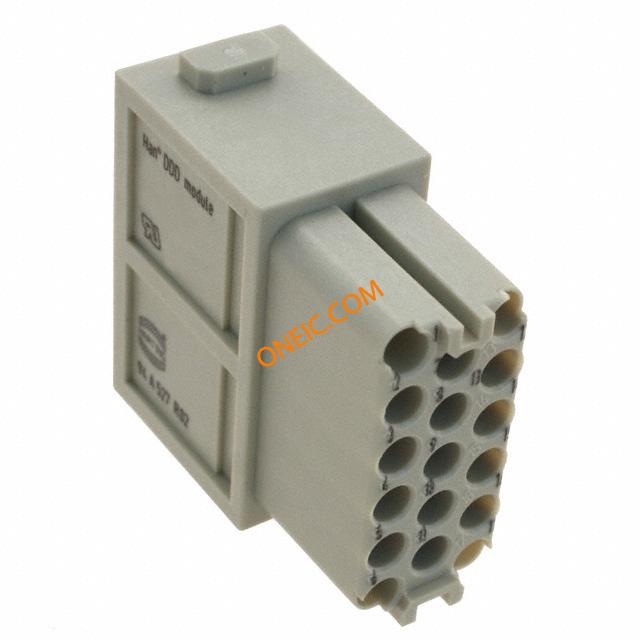

09140173101

制造商	HARTING Technology Group
描述	Conn Housing F 17 POS Crimp ST Heavy Duty Power Connectors HAN MOD 17 DDD FEM HAN DDD MODULE, CRIMP FEMALE RECTANGULAR HAN MOD, SOCKET, 17WAY CRIMP HANModular,Insert,DDDModule,Female,17contacts,160V,10A Connector: HAN; module; female; Han Modular DDD; PIN:17; 10A; 160V Han-Modular Modules: Han Modular 17 DDD Module female Harting HAN Modular 系列 3 行 17 路母座 RJ45-Rangierfeld , 额定电流 10A/ 160 V
分类	硬件与散热解决方案机箱机箱

对参数有疑问？问 AI 助手

商业参数

零件号别名	017 09 09-14-017-3101 14 3101	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	2

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
海关税号	85366910	材料阻燃等级	UL94 V-0

电气参数

电压	250V	插入损耗	Female
额定电压	250V	工作电压	250V
最大额定电流	10A	最小输入电压	160V
最小供电电压	160V	连接器类型 - 电压输入	w/o terminals
反向漏电流 @ Vr	10A

机械参数

颜色	Gray	深度	34 mm
高度	14.6 mm	重量	0.000001
包装方式	Bulk	重量（g）	9.00000
触头类型	Han® D	安装类型	Straight
连接器类型	Module without Contacts	安装样式	Straight
排数	3	插入力	Female
总宽度	1	触头材料	:Copper Alloy
壳体材料	Polycarbonate	总长度	34.2 mm
包装数量	10	连接器 - 电缆	module
端接样式	Crimp	第一触头极性	:Socket
触点数	17	接触件端接	:Crimp
位数	17	绝缘材料 - 材质	polycarbonate
第一连接器安装类型	:Cable

产品信息

SPG	10	类型	Housing
连接器性别	F	系列	Han DDD
制造商全称	Han	产品子类型	Inserts
适配器系列	Han Modular DDD	单元数量	1

环境参数

机械寿命

500cycles

工作温度

-40°C ~ 125°C
