点击放大查看

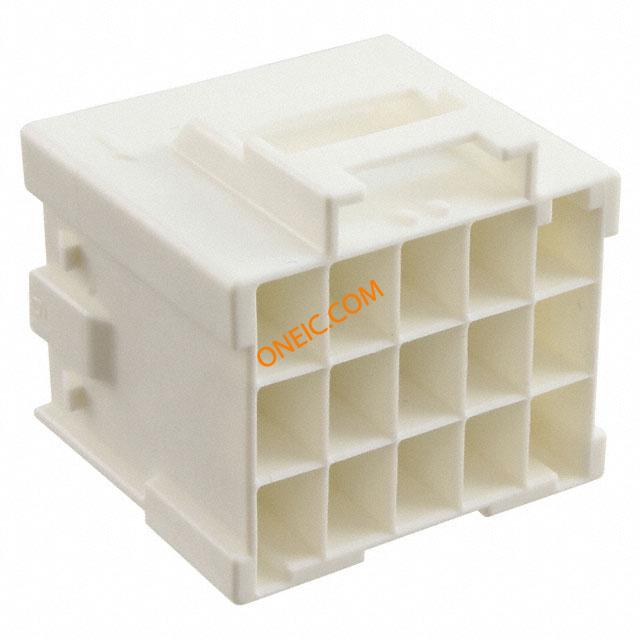

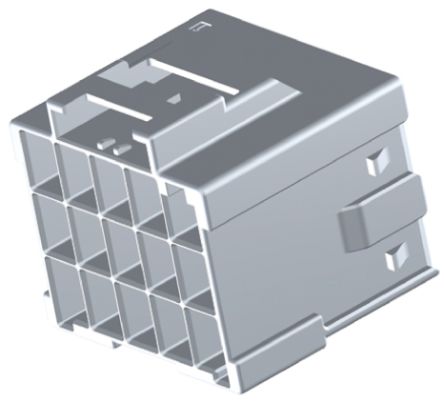

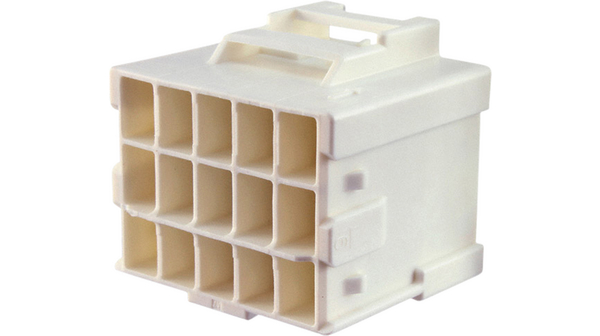

1-1971874-7
| 制造商 | |
| 描述 | CONN RCPT HOUSING 15POS 6MM Headers & Wire Housings 3 x 5 PBT-A Cap Hsg Free Hanging 1-1971874-7 Conn Housing RCP 15 POS 6mm Crimp ST Cable Mount CONNECTOR, HOUSING, RCPT, 15POS, 3ROW, 6MM CONNECTOR, HOUSING, RCPT, 15 WAY, PBT Conn;Rect;Recept;15Pos;3Row;PowerTripleLock;W-to-W;3X5;PBT;KeyA Female Housing Pitch6 mm Poles 3 x 5 Multi row / Free hanging/cable mount Power Triple Lock, 1-1971874-7, TE Connectivity TE Connectivity Power Triple Lock 系列 3 行 6mm 节距 15 路 直 母 电缆安装 压接连接器外壳 PTL 3X5 CAP FREE HANG STD TEMP KEY A NAT |
| 分类 |
商业参数
| 其他名称 | A115795 | 标准包装数量 | 650 |
合规参数
| RoHS | RoHS Compliant | 标准 | RoHS/ELV |
| 海关税号 | 85369010 | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 600 V | 开关功能 | Latched |
| 最大额定电流 | 20 A | 最大持续工作电压（MCOV） | 600VAC/VDC |
机械参数
| 颜色 | Natural | 间距 | 0.236" (6.00mm) |
| 重量 | 0 | 包装方式 | Bulk |
| 导线线规 | 20-12 | 排间距 | 0.319" (8.10mm) |
| 触头类型 | Tab | 外壳颜色 | Natural |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 3 | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 主要材料 | Rectangular | 触点数 | 15 |
| 接触件端接 | Crimp | 位数 | 15 |
| 中心触点表面处理 | 6.00(0.236) | 典型触点布局 | Matrix |
产品信息
| 备注 | Contacts Not Provided | 类型 | SocketHousing |
| 系列 | Power Triple Lock | 钥匙类型 | A |
| 制造商全称 | PowerTripleLock | 产品子类型 | Receptacles / Sockets - Housings |
| 应用细节 | Wire-to-Wire | 适用产品/相关产品 | :1971238, 1971780, 1971782, 1971784, 1971786, 1971788 Tab Contacts |
环境参数
| 工作温度 | - 55 C to + 105 C | ||
