1971786-2
| 制造商 | |
| 描述 | Tab contact, 22 Awg Headers & Wire Housings 22 Awg Tab contact TAB CONTACT 22 AWG Power Triple Lock Tin Plated 20 - 22 AWG Crimp Tab Contact Crimp contact, 6.2 A, 22 AWG, 1971786-2, TE Connectivity TE Connectivity Power Triple Lock 系列 公 压接接线端子, 压接, 镀锡触点 PTL TAB CONTACT, 20 - 22 AWG |
| 分类 |
商业参数
| 其他名称 | A118835TR | 标准包装规格 | 22,000 |
| 标准包装数量 | 4,400 | ||
合规参数
| RoHS | RoHS Compliant | 标准编号 | UL |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 8 A | ||
机械参数
| 镀层 | 预镀锡 | 包装方式 | Tape & Reel (TR) |
| 电缆类型 | 分离式导线 | 导线线规 | 22 |
| 触头类型 | Tab | 触点形状 | 直式 |
| 插针或插孔 | Tab | 电缆直径 | 1.14 |
| 连接器类型 | 公插 | 接触镀层 | Tin |
| 插入件材料 | 铜合金 | 触头材料 | Copper Alloy |
| 壳体材料 | 不带 | 端接排数 | 压接 |
| 绝缘高度 | 带有 | 端接样式 | 公端, 插针 |
| 第一触头极性 | Pin (Male) | 接触件端接 | Crimp |
| 横截面形状 | 0.5 mm² | 绝缘直径 | 1.14 – 2.7 mm [ .045 – .106 in ] |
| 第一连接器极性 | Male | 兼容外壳尺寸（如TM-700等） | 帽护套 |
| 接触件表面处理 - 配合 | 预镀锡 | 线规或范围 - AWG | 22 AWG |
| 外管直径（最大） | 2.7 | ||
产品信息
| 系列 | Power Triple Lock | 产品子类型 | Contacts |
| 连接方式 | Wire-Wire | 基础产品编号 | 1971786 |
| 其他规格 | 否 | 应用细节 | Wire-to-Wire |
| 适用产品/相关产品 | 三重锁扣式电源连接器 | ||
环境参数
| 工作温度 | - 55 C to + 105 C | ||
文档与媒体
相关型号
1-1971774-3
TE Connectivity
CONN RCPT HOUSING 6POS 6MM Headers & Wire Housings 2 x 3 PBT-A Cap Hsg Free Hanging 1-1971774-3 Conn Housing RCP 6 POS 6mm Crimp ST Cable Mount CONNECTOR, HOUSING, RCPT, 6POS, 2ROW, 6MM CONNECTOR, HOUSING, RCPT, 6 WAY, PBT Conn;Rect;Recept;6Pos;2Row;PowerTripleLock;W-to-W;2X3;PBT;KeyA Female Housing Pitch6 mm Poles 2 x 3 Multi row / Free hanging/cable mount Power Triple Lock, 1-1971774-3, TE Connectivity TE Connectivity 1971774 系列 2 行 6mm 节距 6 路 直 母 电缆安装 插座壳体 PTL 2X3 CAP FREE HANG STD TEMP KEY A NAT
1-1971775-3
TE Connectivity
CONN RCPT HOUSING 6POS 6MM Headers & Wire Housings 2 x 3 PBT-A Cap Hsg Panel Mount 1-1971775-3 Conn Housing RCP 6 POS 6mm ST Panel Mount CONNECTOR, HOUSING, RCPT, 6POS, 2ROW, 6MM CONNECTOR, HOUSING, RCPT, 6 WAY, PBT Conn;Rect;Recept;6Pos;2Row;PowerTripleLock;PanelMnt;2X3;PBT;KeyA Female Housing Pitch6 mm Poles 2 x 3 Multi row / for panel mount Power Triple Lock, 1-1971775-3, TE Connectivity TE Connectivity Power Triple Lock 系列 2 行 6mm 节距 6 路 直 母 面板安装 压接连接器外壳 PTL 2X3 CAP PANEL MT STD TEMP KEY A NAT
1-1971875-3
TE Connectivity
CONN RCPT HOUSING 9POS 6MM Headers & Wire Housings 3 x 3 PBT-A Cap Hsg Panel Mount 1-1971875-3 Conn Housing RCP 9 POS 6mm ST Panel Mount CONNECTOR, HOUSING, RCPT, 9POS, 3ROW, 6MM CONNECTOR, HOUSING, RCPT, 9 WAY, PBT Conn;Rect;Recept;9Pos;3Row;PowerTripleLock;PanelMnt;3X3;PBT;KeyA Female Housing Pitch6 mm Poles 3 x 3 Multi row / for panel mount Power Triple Lock, 1-1971875-3, TE Connectivity TE Connectivity Power Triple Lock 系列 3 行 6mm 节距 9 路 直 母 面板安装 压接连接器外壳 PTL 3X3 CAP PANEL MT STD TEMP KEY A NAT
1-1971875-4
TE Connectivity
CONN RCPT HOUSING 12POS 6MM Headers & Wire Housings 3 x 4 PBT-A Cap Hsg Panel Mount 1-1971875-4 Conn Housing RCP 12 POS 6mm ST Panel Mount CONNECTOR, HOUSING, RCPT, 12POS, 3ROW, 6MM CONNECTOR, HOUSING, RCPT, 12 WAY, PBT Conn;Rect;Recept;12Pos;3Row;PowerTripleLock;PanelMnt;3X4;PBT;KeyA Female Housing Pitch6 mm Poles 3 x 4 Multi row / for panel mount Power Triple Lock, 1-1971875-4, TE Connectivity TE Connectivity Power Triple Lock 系列 3 行 6mm 节距 12 路 直 母 面板安装 压接连接器外壳 PTL 3X4 CAP PANEL MT STD TEMP KEY A NAT
1-1971772-4
TE Connectivity
CONN RCPT HOUSING 4POS 6MM 1x4 cap housing panel mount Key A nat CONNECTOR, HOUSING, RCPT, 4POS, 1ROW, 6MM CONNECTOR, HOUSING, RCPT, 4 WAY, PBT Conn;Rect;Recept;4Pos;1Row;PowerTripleLock;PanelMnt;1X4;PBT;KeyA 4 Position (1 x 4) Panel Mount Power Triple Lock Connector Receptacle Housing Female Housing Pitch6 mm Poles 1 x 4 Single row / for panel mount Power Triple Lock, 1-1971772-4, TE Connectivity TE Connectivity Power Triple Lock 系列 1 行 6mm 节距 4 路 直 母 面板安装 压接连接器外壳 PTL 1X4 CAP PANEL MT STD TEMP KEY A NAT

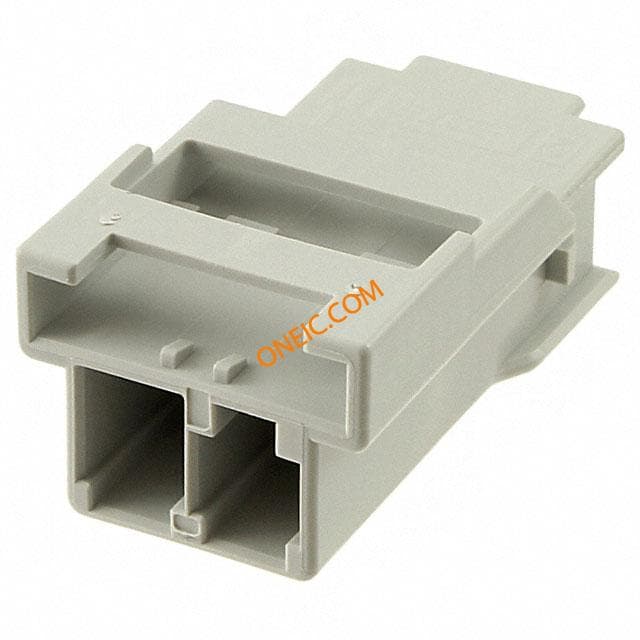

5-1971771-2
TE Connectivity/AMP Brand
1x2 cap housing free hanging Key A lgr Headers & Wire Housings 1x2 cap housing lgr free hanging Key A 1X2 CAP HOUSING FREE HANGING KEY

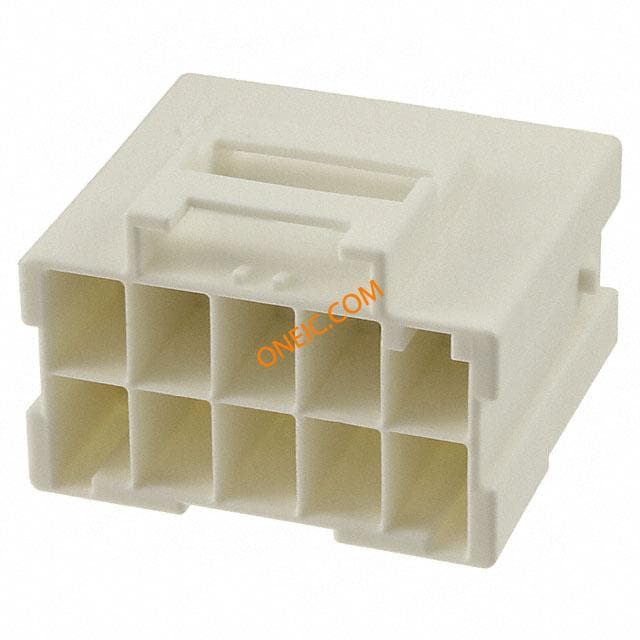

1-1971774-5
