点击放大查看

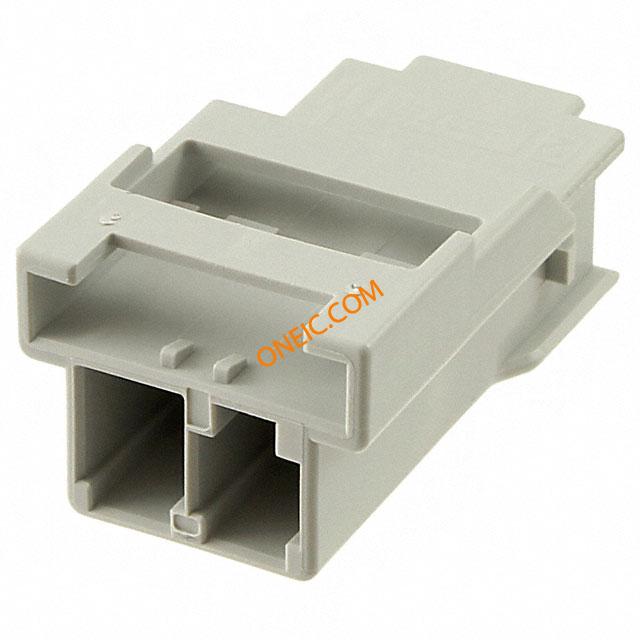

5-1971771-2
| 制造商 | |
| 描述 | 1x2 cap housing free hanging Key A lgr Headers & Wire Housings 1x2 cap housing lgr free hanging Key A 1X2 CAP HOUSING FREE HANGING KEY |
| 分类 |
商业参数
| 其他名称 | A117675 | 标准包装规格 | 3,000 |
| 标准包装数量 | 3,000 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 600 VAC, 600 VDC | 最大额定电流 | 20 A |
机械参数
| 颜色 | Natural | 间距 | 6 mm |
| 包装方式 | Bulk | 排间距 | 8.1 mm |
| 触头类型 | Tab | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 紧固类型 | Latch Lock |
| 排数 | 1 | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | Power Triple Lock |
| 产品子类型 | Wire Housings | 应用细节 | Wire-to-Wire |
环境参数
| 工作温度 | - 55 C to + 105 C | ||
