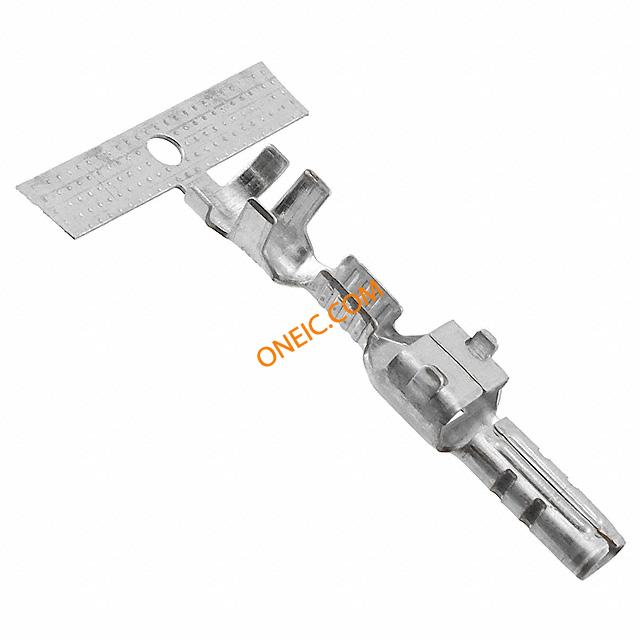

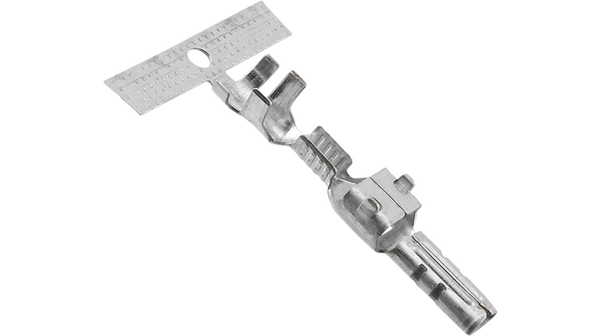

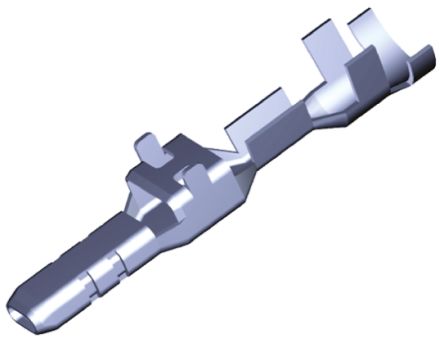

1971786-1

制造商	TE Connectivity Ltd.
描述	CONN TAB 22AWG Triple Lock tab Contact 22 AWG Headers & Wire Housings 22 AWG Brass Pin Contact Terminal 1971786-1 Contact SKT Crimp ST Cable Mount CONTACT, PIN, 22AWG, CRIMP CONTACT, PIN, 22 AWG, CRIMP Contact;Pin;Crimp;22AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 5 A, 22 AWG, 1971786-1, TE Connectivity TE Connectivity Power Triple Lock 系列公压接触点, 压接, 镀锡触点 PTL TAB CONTACT, 20 - 22 AWG
分类	连接器解决方案接触件接触件（通用）

对参数有疑问？问 AI 助手

商业参数

其他名称

A115829TR

标准包装数量

4,400

合规参数

RoHS	Lead free / RoHS Compliant	标准	RoHS/ELV
海关税号	85366910

电气参数

额定电压	600 V	最大额定电流	4 A
最大持续工作电压（MCOV）	600VAC/VDC

机械参数

重量	0	包装方式	Tape & Reel (TR)
导线线规	22 AWG	端接方式	Crimp
插针或插孔	Tab	接触镀层	Tin
触头材料	Copper Alloy	主要材料	Rectangular
端接样式	Crimp	第一触头极性	Pin (Male)
接触件端接	Crimp	中心触点表面处理	6.00(0.236)

产品信息

类型	Contact,Pin	连接器性别	Male
系列	Power Triple Lock	制造商全称	PowerTripleLock
产品子类型	Contacts	应用细节	Wire-to-Wire
适用产品/相关产品	Wire to Wire Connector

环境参数

工作温度

+105°C

相关型号

1-1971774-3

TE Connectivity

CONN RCPT HOUSING 6POS 6MM Headers & Wire Housings 2 x 3 PBT-A Cap Hsg Free Hanging 1-1971774-3 Conn Housing RCP 6 POS 6mm Crimp ST Cable Mount CONNECTOR, HOUSING, RCPT, 6POS, 2ROW, 6MM CONNECTOR, HOUSING, RCPT, 6 WAY, PBT Conn;Rect;Recept;6Pos;2Row;PowerTripleLock;W-to-W;2X3;PBT;KeyA Female Housing Pitch6 mm Poles 2 x 3 Multi row / Free hanging/cable mount Power Triple Lock, 1-1971774-3, TE Connectivity TE Connectivity 1971774 系列 2 行 6mm 节距 6 路直母电缆安装插座壳体 PTL 2X3 CAP FREE HANG STD TEMP KEY A NAT

¥1.4756

详情

1-1971775-3

TE Connectivity

CONN RCPT HOUSING 6POS 6MM Headers & Wire Housings 2 x 3 PBT-A Cap Hsg Panel Mount 1-1971775-3 Conn Housing RCP 6 POS 6mm ST Panel Mount CONNECTOR, HOUSING, RCPT, 6POS, 2ROW, 6MM CONNECTOR, HOUSING, RCPT, 6 WAY, PBT Conn;Rect;Recept;6Pos;2Row;PowerTripleLock;PanelMnt;2X3;PBT;KeyA Female Housing Pitch6 mm Poles 2 x 3 Multi row / for panel mount Power Triple Lock, 1-1971775-3, TE Connectivity TE Connectivity Power Triple Lock 系列 2 行 6mm 节距 6 路直母面板安装压接连接器外壳 PTL 2X3 CAP PANEL MT STD TEMP KEY A NAT

¥2.3381

详情

1-1971875-3

TE Connectivity

CONN RCPT HOUSING 9POS 6MM Headers & Wire Housings 3 x 3 PBT-A Cap Hsg Panel Mount 1-1971875-3 Conn Housing RCP 9 POS 6mm ST Panel Mount CONNECTOR, HOUSING, RCPT, 9POS, 3ROW, 6MM CONNECTOR, HOUSING, RCPT, 9 WAY, PBT Conn;Rect;Recept;9Pos;3Row;PowerTripleLock;PanelMnt;3X3;PBT;KeyA Female Housing Pitch6 mm Poles 3 x 3 Multi row / for panel mount Power Triple Lock, 1-1971875-3, TE Connectivity TE Connectivity Power Triple Lock 系列 3 行 6mm 节距 9 路直母面板安装压接连接器外壳 PTL 3X3 CAP PANEL MT STD TEMP KEY A NAT

¥2.3800

详情

1-1971875-4

TE Connectivity

CONN RCPT HOUSING 12POS 6MM Headers & Wire Housings 3 x 4 PBT-A Cap Hsg Panel Mount 1-1971875-4 Conn Housing RCP 12 POS 6mm ST Panel Mount CONNECTOR, HOUSING, RCPT, 12POS, 3ROW, 6MM CONNECTOR, HOUSING, RCPT, 12 WAY, PBT Conn;Rect;Recept;12Pos;3Row;PowerTripleLock;PanelMnt;3X4;PBT;KeyA Female Housing Pitch6 mm Poles 3 x 4 Multi row / for panel mount Power Triple Lock, 1-1971875-4, TE Connectivity TE Connectivity Power Triple Lock 系列 3 行 6mm 节距 12 路直母面板安装压接连接器外壳 PTL 3X4 CAP PANEL MT STD TEMP KEY A NAT

¥2.9240

详情

1-1971772-4

TE Connectivity

CONN RCPT HOUSING 4POS 6MM 1x4 cap housing panel mount Key A nat CONNECTOR, HOUSING, RCPT, 4POS, 1ROW, 6MM CONNECTOR, HOUSING, RCPT, 4 WAY, PBT Conn;Rect;Recept;4Pos;1Row;PowerTripleLock;PanelMnt;1X4;PBT;KeyA 4 Position (1 x 4) Panel Mount Power Triple Lock Connector Receptacle Housing Female Housing Pitch6 mm Poles 1 x 4 Single row / for panel mount Power Triple Lock, 1-1971772-4, TE Connectivity TE Connectivity Power Triple Lock 系列 1 行 6mm 节距 4 路直母面板安装压接连接器外壳 PTL 1X4 CAP PANEL MT STD TEMP KEY A NAT

¥1.6995

详情

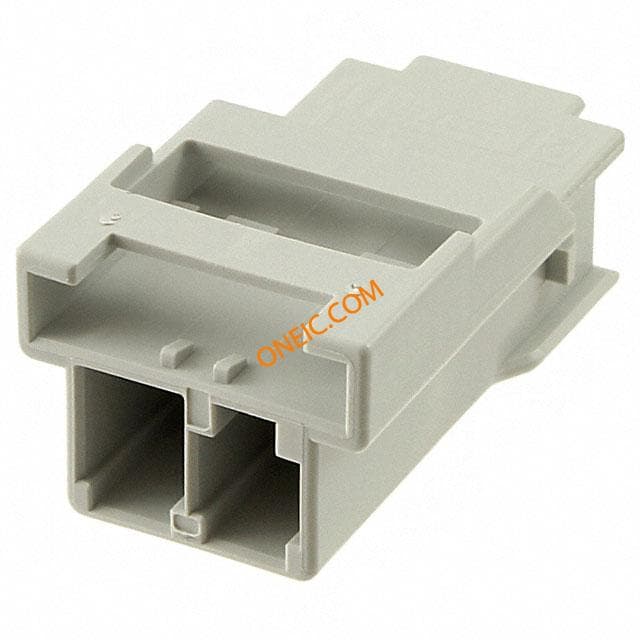

5-1971771-2

TE Connectivity/AMP Brand

1x2 cap housing free hanging Key A lgr Headers & Wire Housings 1x2 cap housing lgr free hanging Key A 1X2 CAP HOUSING FREE HANGING KEY

¥1.4212

详情

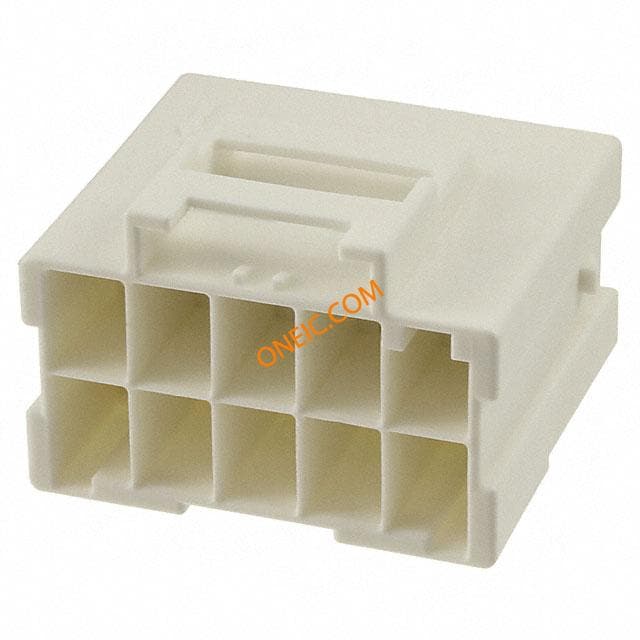

1-1971774-5

TE Connectivity/AMP Brand

2x5 cap housing free hanging Key A nat 2X5 CAP HOUSING FREE HANGING KEY Female Housing Pitch6 mm Poles 2 x 5 Multi row / Free hanging/cable mount Power Triple Lock, 1-1971774-5, TE Connectivity PTL 2X5 CAP FREE HANG STD TEMP KEY A NAT

¥1.6048

详情

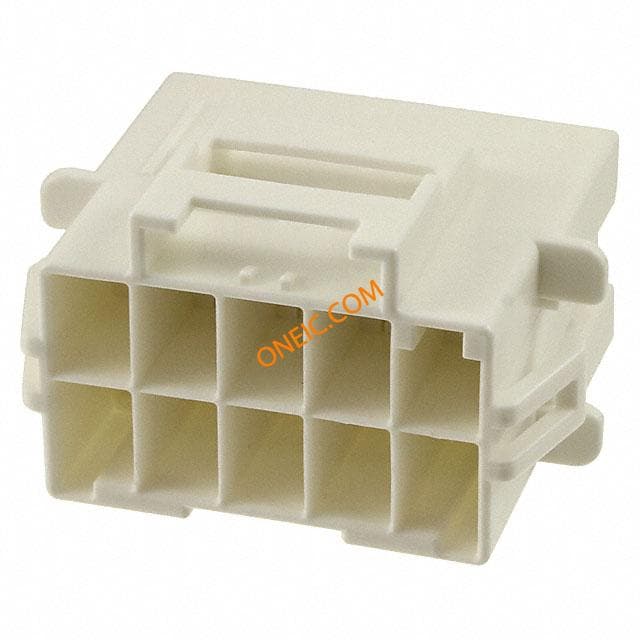

1-1971775-5
