首页产品分类连接器解决方案矩形连接器FPC/FFC矩形连接器1-1971876-7

点击放大查看

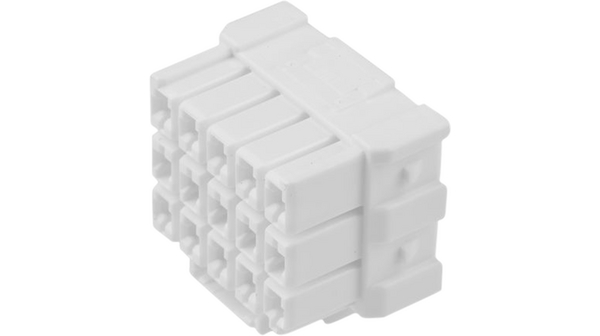

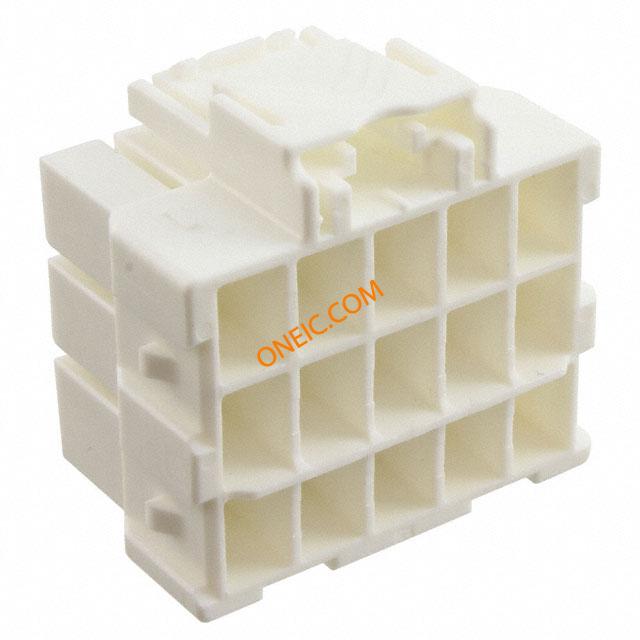

1-1971876-7

制造商	TE Connectivity Ltd.
描述	CONN HOUSING PLUG 15POS 6MM Headers & Wire Housings 3 x 5 PBT-A Plug Hsg 1-1971876-7 Conn Housing PL 15 POS 6mm Crimp ST Cable Mount CONNECTOR, HOUSING, PLUG, 15POS, 3ROW, 6MM CONNECTOR, HOUSING, PLUG, 15 WAY, PBT Conn;Rect;Plug;15Pos;3Row;PowerTripleLock;W-to-W;3X5;PBT;KeyA Male Housing Pitch6 mm Poles 3 x 5 Multi row / Free hanging/cable mount Power Triple Lock, 1-1971876-7, TE Connectivity TE Connectivity Power Triple Lock 系列 3 行 6mm 节距 15 路直公电缆安装压接连接器外壳 PTL 3X5 PLUG HSG STD TEMP KEY A NAT
分类	连接器解决方案矩形连接器FPC/FFC矩形连接器

对参数有疑问？问 AI 助手

商业参数

其他名称

A115804

标准包装数量

850

合规参数

RoHS	RoHS Compliant	标准	RoHS/ELV
海关税号	85369010	材料阻燃等级	UL 94 V-0

电气参数

额定电压	600 V	开关功能	Latched
最大额定电流	20 A	最大持续工作电压（MCOV）	600VAC/VDC

机械参数

颜色	Natural	间距	0.236" (6.00mm)
重量	0	包装方式	Bulk
导线线规	20-12	排间距	0.319" (8.10mm)
触头类型	Female Socket	外壳颜色	Natural
安装类型	Free Hanging (In-Line)	连接器类型	Plug
紧固类型	Latch Holder	排数	3
壳体材料	Polybutylene Terephthalate (PBT)	主要材料	Rectangular
触点数	15	接触件端接	Crimp
位数	15	中心触点表面处理	6.00(0.236)
典型触点布局	Matrix

产品信息

备注	Contacts Not Provided	类型	PlugHousing
系列	Power Triple Lock	钥匙类型	A
制造商全称	PowerTripleLock	产品子类型	Plugs - Housings
应用细节	Wire-to-Wire	适用产品/相关产品	:1971237, 1971779, 1971781, 1971783, 1971785, 1971787 Receptacle Contacts

环境参数

工作温度

- 55 C to + 105 C

相关型号

1-1971874-7

TE Connectivity

CONN RCPT HOUSING 15POS 6MM Headers & Wire Housings 3 x 5 PBT-A Cap Hsg Free Hanging 1-1971874-7 Conn Housing RCP 15 POS 6mm Crimp ST Cable Mount CONNECTOR, HOUSING, RCPT, 15POS, 3ROW, 6MM CONNECTOR, HOUSING, RCPT, 15 WAY, PBT Conn;Rect;Recept;15Pos;3Row;PowerTripleLock;W-to-W;3X5;PBT;KeyA Female Housing Pitch6 mm Poles 3 x 5 Multi row / Free hanging/cable mount Power Triple Lock, 1-1971874-7, TE Connectivity TE Connectivity Power Triple Lock 系列 3 行 6mm 节距 15 路直母电缆安装压接连接器外壳 PTL 3X5 CAP FREE HANG STD TEMP KEY A NAT

¥2.5228

详情

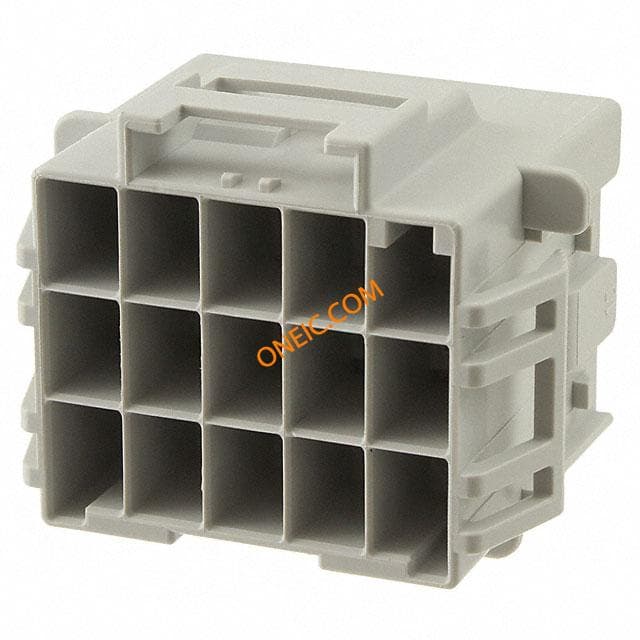

1-1971875-7

TE Connectivity

CONN RCPT HOUSING 15POS 6MM Headers & Wire Housings 3 x 5 PBT-A Cap Hsg Panel Mount 1-1971875-7 Conn Housing RCP 15 POS 6mm ST Panel Mount CONNECTOR, HOUSING, RCPT, 15POS, 3ROW, 6MM CONNECTOR, HOUSING, RCPT, 15 WAY, PBT Conn;Rect;Recept;15Pos;3Row;PowerTripleLock;PanelMnt;3X5;PBT;KeyA Female Housing Pitch6 mm Poles 3 x 5 Multi row / for panel mount Power Triple Lock, 1-1971875-7, TE Connectivity TE Connectivity Power Triple Lock 系列 3 行 6mm 节距 15 路直母面板安装压接连接器外壳 PTL 3X5 CAP PANEL MT STD TEMP KEY A NAT

¥2.5228

详情

1971783-1

TE Connectivity

CONN CONT RCPT 20-16AWG Triple Lock receptacle Contact 16-20 AWG Headers & Wire Housings 16-20 AWG PhsBr Rcpt Contact Terminal 1971783-1 Contact SKT Crimp ST Cable Mount CONTACT, SOCKET, 20-16AWG, CRIMP CONTACT, SOCKET, 20-16 AWG, CRIMP Contact;Socket;Crimp;20-16AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 12 A, 16...20 AWG, 1971783-1, TE Connectivity TE Connectivity Power Triple Lock 系列母压接触点, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 16-19 AWG, 2X22

¥0.1700

详情

1971785-1

TE Connectivity

CONN CONT RCPT 22AWG Headers & Wire Housings 22 AWG PhosBr Rcpt Contact Terminal 1971785-1 Contact SKT Crimp ST Cable Mount CONTACT, SOCKET, 22AWG, CRIMP CONTACT, SOCKET, 22 AWG, CRIMP Contact;Socket;Crimp;22AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 5 A, 22 AWG, 1971785-1, TE Connectivity TE Connectivity Power Triple Lock 系列母压接触点, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 20 - 22 AWG

¥0.2040

详情

1971781-1

TE Connectivity

CONN CONT RCPT 14AWG Triple Lock receptacle Contact 14 AWG 1971781-1 Contact SKT Crimp ST Cable Mount CONTACT, SOCKET, 14AWG, CRIMP CONTACT, SOCKET, 14 AWG, CRIMP Contact;Socket;Crimp;14AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 12 A, 14 AWG, 1971781-1, TE Connectivity TE Connectivity Power Triple Lock 系列母压接触点, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 14 AWG

¥0.3634

详情

1971779-1

TE Connectivity

CONN CONT RCPT 12AWG Triple Lock receptacle Contact 12 AWG Headers & Wire Housings 12 AWG C Iron Rctp Contact Terminal 1971779-1 Contact SKT Crimp ST Cable Mount CONTACT, SOCKET, 12AWG, CRIMP CONTACT, SOCKET, 12 AWG, CRIMP Contact;Socket;Crimp;12AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 20 A, 12 AWG, 1971779-1, TE Connectivity TE Connectivity Power Triple Lock 系列母压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 12 AWG

¥0.2060

详情

1971237-1

TE Connectivity/AMP Brand

Receptacle contact, 2X20 Awg Headers & Wire Housings 2X20 Awg Receptacle contact RECEPTACLE CONTACT, 2X20 AWG Crimp contact, 6 A, 20 AWG, 1971237-1, TE Connectivity TE Connectivity Power Triple Lock 系列母压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 2X20 AWG

¥0.2924

详情

1971779-2

TE Connectivity/AMP Brand

Receptacle contact, 12 Awg Headers & Wire Housings 12 Awg Receptacle contact RECEPTACLE CONTACT, 12 AWG Power Triple Lock Tin Plated 12 AWG Crimp Socket Receptacle Contact Crimp contact, 20 A, 12 AWG, 1971779-2, TE Connectivity TE Connectivity Power Triple Lock 系列母压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 12 AWG

¥0.2842

详情

1971781-2

TE Connectivity/AMP Brand

Receptacle contact, 14 Awg Headers & Wire Housings 14 Awg Receptacle contact RECEPTACLE CONTACT, 14 AWG Power Triple Lock Tin Plated 14 AWG Crimp Socket Receptacle Crimp contact, 15 A, 14 AWG, 1971781-2, TE Connectivity TE Connectivity Power Triple Lock 系列母压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 14 AWG

¥0.2652

详情

1971783-2

TE Connectivity/AMP Brand

Receptacle contact, 16 20 Awg Headers & Wire Housings 16 20 Awg Receptacle contact RECEPTACLE CONTACT, 16 20 AWG Power Triple Lock Tin Plated 16 - 20 AWG Crimp Socket Receptacle Crimp contact, 15 A, 16...20 AWG, 1971783-2, TE Connectivity TE Connectivity Power Triple Lock 系列母压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 16-19 AWG, 2X22

¥0.2659

详情

1971785-2

TE Connectivity/AMP Brand

Receptacle contact, 22 Awg Headers & Wire Housings 22 Awg Receptacle contact RECEPTACLE CONTACT 22 AWG Power Triple Lock Tin Plated 20 - 22 AWG Crimp Socket Receptacle Crimp contact, 5 A, 22 AWG, 1971785-2, TE Connectivity TE Connectivity Power Triple Lock 系列母压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 20 - 22 AWG

¥0.2856

详情

1971787-1

TE Connectivity/AMP Brand

Receptacle contact, 2X18 Awg Headers & Wire Housings 2X18 Awg Receptacle contact RECEPTACLE CONTACT, 2X18 AWG Crimp contact, 8 A, 18 AWG, 1971787-1, TE Connectivity TE Connectivity Power Triple Lock 系列母压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 2X18 AWG

¥0.2618

详情
