点击放大查看

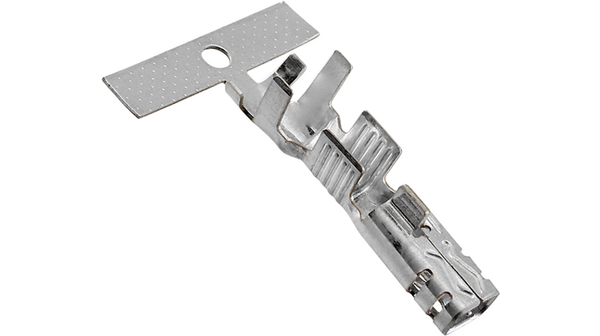

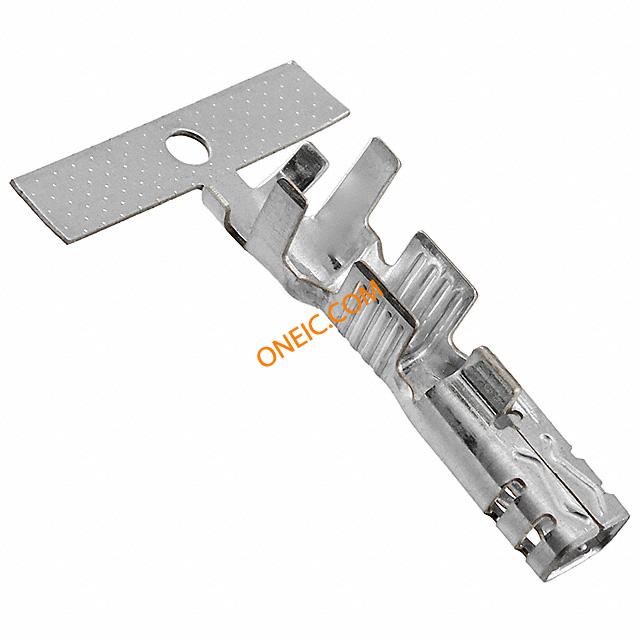

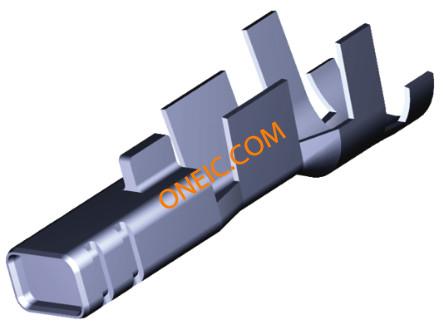

1971781-1
| 制造商 | |
| 描述 | CONN CONT RCPT 14AWG Triple Lock receptacle Contact 14 AWG 1971781-1 Contact SKT Crimp ST Cable Mount CONTACT, SOCKET, 14AWG, CRIMP CONTACT, SOCKET, 14 AWG, CRIMP Contact;Socket;Crimp;14AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 12 A, 14 AWG, 1971781-1, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接触点, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 14 AWG |
| 分类 |
商业参数
| 其他名称 | A115824TR | 标准包装数量 | 4,000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHS/ELV |
| 海关税号 | 85366910 | ||
电气参数
| 最大持续工作电压（MCOV） | 600VAC/VDC | ||
机械参数
| 重量 | 0 | 包装方式 | Tape & Reel (TR) |
| 导线线规 | 14 AWG | 端接方式 | Crimp |
| 插针或插孔 | Socket | 接触镀层 | Tin |
| 触头材料 | Copper Alloy | 主要材料 | Rectangular |
| 第一触头极性 | :Socket | 接触件端接 | Crimp |
| 中心触点表面处理 | 6.00(0.236) | ||
产品信息
| 类型 | Contact,Socket | 连接器性别 | Female |
| 系列 | :Power Triple Lock | 制造商全称 | PowerTripleLock |
| 应用细节 | Wire-to-Wire | 适用产品/相关产品 | Wire to Wire Connector |
环境参数
| 工作温度 | +105°C | ||
