5-2232265-2

制造商	TE Connectivity Ltd.
描述	CONN PLUG HOUSING 2POS 6MM PTL 1X2 PLUG HSG GLW WIRE KEY A DGR
分类	连接器解决方案压接与焊接端子/接头片形压接端子

对参数有疑问？问 AI 助手

商业参数

其他名称

A118773

标准包装数量

3,500

合规参数

UL等级	获得认可	零件状态	E28476
标准编号	UL, VDE	UL阻燃等级	UL 94V-0

电气参数

供电电压	600	中心频率	带有
连接器阻抗	压接

机械参数

颜色	Gray	间距	0.236" (6.00mm)
包装方式	Bulk	壳体颜色	灰色
触头类型	Female Blade Socket	安装类型	Free Hanging (In-Line)
连接器类型	Plug	接触镀层	Without
紧固类型	Latch Holder	引脚数	2
排数	1	外壳材料（壳体）	插头
壳体材料	尼龙 GF	面板安装类型	不带
端接样式	母端	接触件端接	Crimp
位数	2	兼容外壳尺寸（如TM-700等）	CPA, 母端外壳, 母端（插座）端子, 端子锁定片
典型触点布局	直插式

产品信息

备注	Contacts Not Provided	钥匙类型	A
产品子类型	护套	输出配置	直式
应用细节	Power

环境参数

工作范围	不密封	测试温度	根据 IEC 60335-1 版本 06/2001 为 GWT 750°C（无火焰）
工作温度	-55 – 105 °C [ -67 – 221 °F ]

相关型号

1971783-1

TE Connectivity

CONN CONT RCPT 20-16AWG Triple Lock receptacle Contact 16-20 AWG Headers & Wire Housings 16-20 AWG PhsBr Rcpt Contact Terminal 1971783-1 Contact SKT Crimp ST Cable Mount CONTACT, SOCKET, 20-16AWG, CRIMP CONTACT, SOCKET, 20-16 AWG, CRIMP Contact;Socket;Crimp;20-16AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 12 A, 16...20 AWG, 1971783-1, TE Connectivity TE Connectivity Power Triple Lock 系列母压接触点, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 16-19 AWG, 2X22

¥0.1700

详情

1971785-1

TE Connectivity

CONN CONT RCPT 22AWG Headers & Wire Housings 22 AWG PhosBr Rcpt Contact Terminal 1971785-1 Contact SKT Crimp ST Cable Mount CONTACT, SOCKET, 22AWG, CRIMP CONTACT, SOCKET, 22 AWG, CRIMP Contact;Socket;Crimp;22AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 5 A, 22 AWG, 1971785-1, TE Connectivity TE Connectivity Power Triple Lock 系列母压接触点, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 20 - 22 AWG

¥0.2040

详情

1971781-1

TE Connectivity

CONN CONT RCPT 14AWG Triple Lock receptacle Contact 14 AWG 1971781-1 Contact SKT Crimp ST Cable Mount CONTACT, SOCKET, 14AWG, CRIMP CONTACT, SOCKET, 14 AWG, CRIMP Contact;Socket;Crimp;14AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 12 A, 14 AWG, 1971781-1, TE Connectivity TE Connectivity Power Triple Lock 系列母压接触点, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 14 AWG

¥0.3634

详情

1971779-1

TE Connectivity

CONN CONT RCPT 12AWG Triple Lock receptacle Contact 12 AWG Headers & Wire Housings 12 AWG C Iron Rctp Contact Terminal 1971779-1 Contact SKT Crimp ST Cable Mount CONTACT, SOCKET, 12AWG, CRIMP CONTACT, SOCKET, 12 AWG, CRIMP Contact;Socket;Crimp;12AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 20 A, 12 AWG, 1971779-1, TE Connectivity TE Connectivity Power Triple Lock 系列母压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 12 AWG

¥0.2060

详情

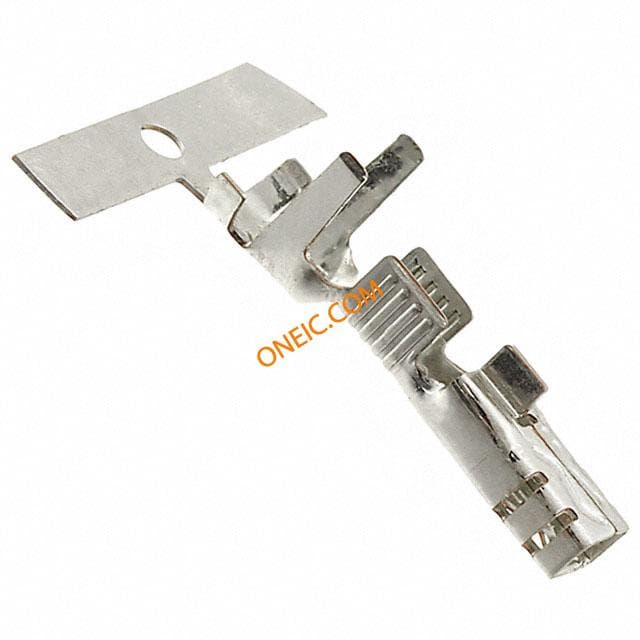

1971237-1

TE Connectivity/AMP Brand

Receptacle contact, 2X20 Awg Headers & Wire Housings 2X20 Awg Receptacle contact RECEPTACLE CONTACT, 2X20 AWG Crimp contact, 6 A, 20 AWG, 1971237-1, TE Connectivity TE Connectivity Power Triple Lock 系列母压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 2X20 AWG

¥0.2924

详情

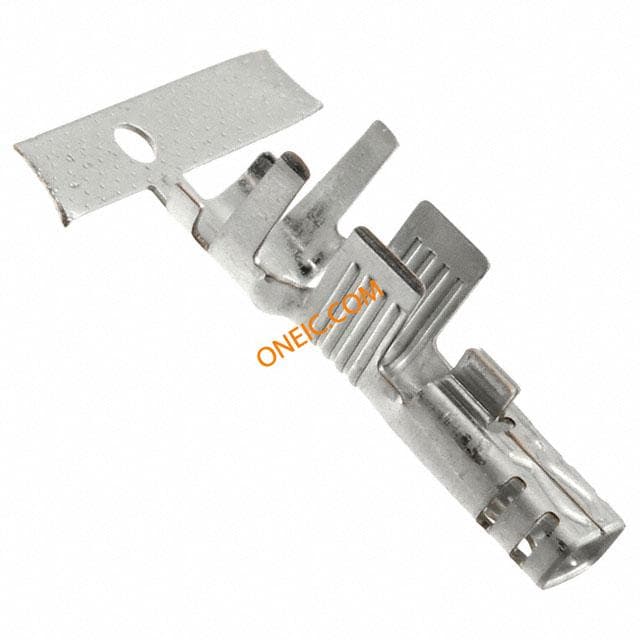

1971779-2

TE Connectivity/AMP Brand

Receptacle contact, 12 Awg Headers & Wire Housings 12 Awg Receptacle contact RECEPTACLE CONTACT, 12 AWG Power Triple Lock Tin Plated 12 AWG Crimp Socket Receptacle Contact Crimp contact, 20 A, 12 AWG, 1971779-2, TE Connectivity TE Connectivity Power Triple Lock 系列母压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 12 AWG

¥0.2842

详情

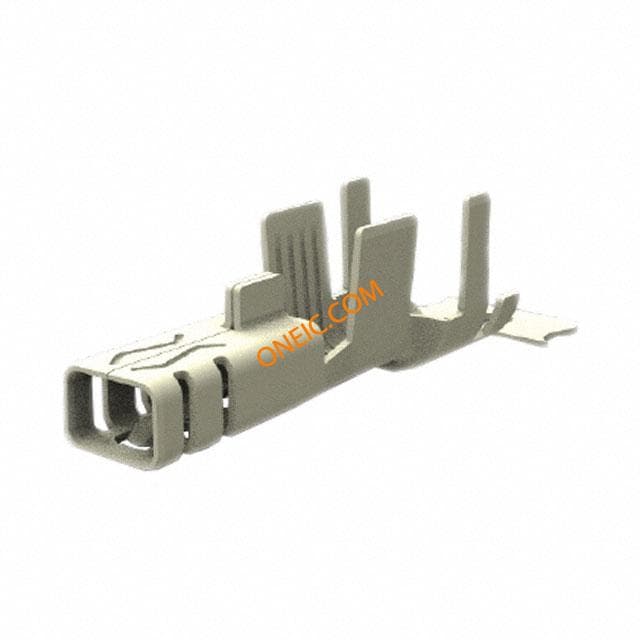

1971781-2

TE Connectivity/AMP Brand

Receptacle contact, 14 Awg Headers & Wire Housings 14 Awg Receptacle contact RECEPTACLE CONTACT, 14 AWG Power Triple Lock Tin Plated 14 AWG Crimp Socket Receptacle Crimp contact, 15 A, 14 AWG, 1971781-2, TE Connectivity TE Connectivity Power Triple Lock 系列母压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 14 AWG

¥0.2652

详情

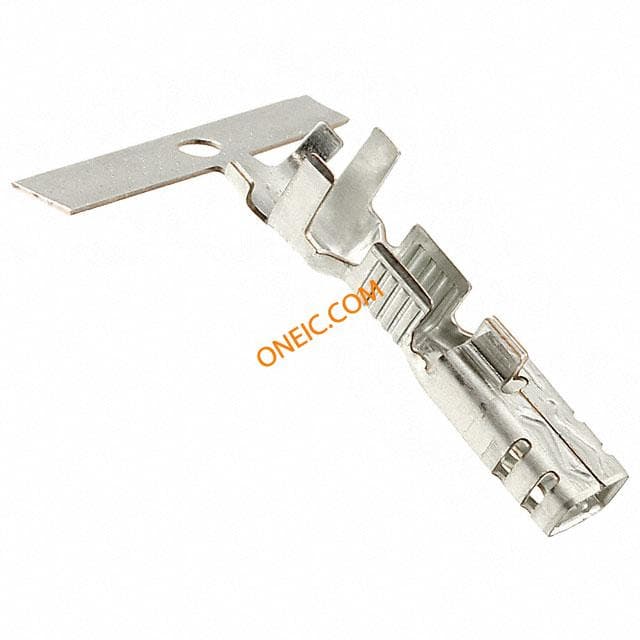

1971783-2

TE Connectivity/AMP Brand

Receptacle contact, 16 20 Awg Headers & Wire Housings 16 20 Awg Receptacle contact RECEPTACLE CONTACT, 16 20 AWG Power Triple Lock Tin Plated 16 - 20 AWG Crimp Socket Receptacle Crimp contact, 15 A, 16...20 AWG, 1971783-2, TE Connectivity TE Connectivity Power Triple Lock 系列母压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 16-19 AWG, 2X22

¥0.2659

详情

1971785-2

TE Connectivity/AMP Brand

Receptacle contact, 22 Awg Headers & Wire Housings 22 Awg Receptacle contact RECEPTACLE CONTACT 22 AWG Power Triple Lock Tin Plated 20 - 22 AWG Crimp Socket Receptacle Crimp contact, 5 A, 22 AWG, 1971785-2, TE Connectivity TE Connectivity Power Triple Lock 系列母压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 20 - 22 AWG

¥0.2856

详情

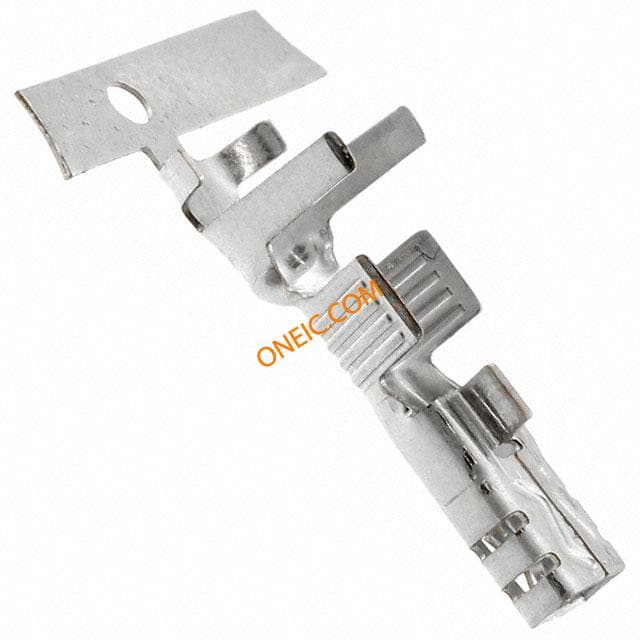

1971787-1

TE Connectivity/AMP Brand

Receptacle contact, 2X18 Awg Headers & Wire Housings 2X18 Awg Receptacle contact RECEPTACLE CONTACT, 2X18 AWG Crimp contact, 8 A, 18 AWG, 1971787-1, TE Connectivity TE Connectivity Power Triple Lock 系列母压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 2X18 AWG

¥0.2618

详情

5-2232358-2

TE Connectivity

CONN RCPT HOUSING 2POS 6MM PTL 1X2 CAP FREE HANG GLW WIRE KEY A DGR

¥2.3203

详情

5-2232263-2

TE Connectivity

CONN RCPT HOUSING 2POS 6MM PTL 1X2 CAP PANEL MT GLW WIRE KEY A DGR

¥1.8632

详情
