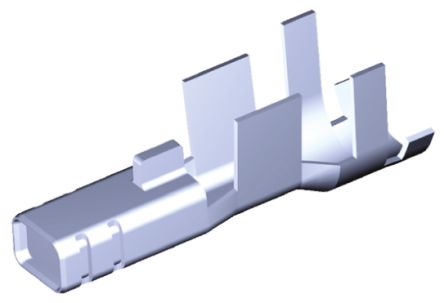

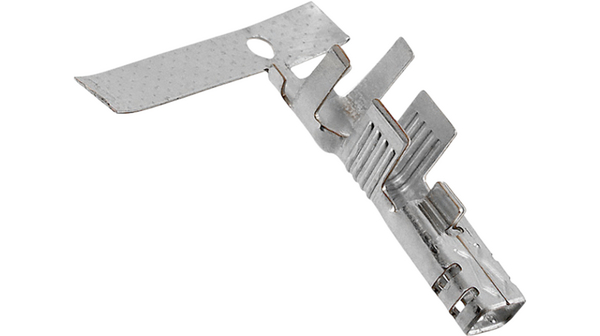

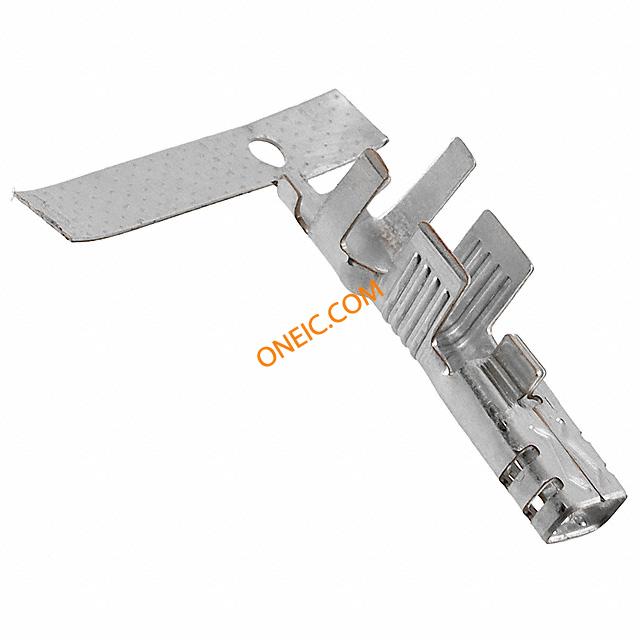

1971779-1

制造商	TE Connectivity Ltd.
描述	CONN CONT RCPT 12AWG Triple Lock receptacle Contact 12 AWG Headers & Wire Housings 12 AWG C Iron Rctp Contact Terminal 1971779-1 Contact SKT Crimp ST Cable Mount CONTACT, SOCKET, 12AWG, CRIMP CONTACT, SOCKET, 12 AWG, CRIMP Contact;Socket;Crimp;12AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 20 A, 12 AWG, 1971779-1, TE Connectivity TE Connectivity Power Triple Lock 系列母压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 12 AWG
分类	连接器解决方案接触件接触件（通用）

对参数有疑问？问 AI 助手

商业参数

其他名称

A115822TR

标准包装数量

2,500

合规参数

RoHS	Lead free / RoHS Compliant	标准	RoHS/ELV
海关税号	85366910

电气参数

额定电压	600 V	最大额定电流	20 A
最大持续工作电压（MCOV）	600VAC/VDC

机械参数

重量	0	包装方式	Tape & Reel (TR)
导线线规	12 AWG	端接方式	Crimp
插针或插孔	Socket	接触镀层	Tin
触头材料	Copper Alloy	主要材料	Rectangular
端接样式	Crimp	第一触头极性	Socket (Female)
接触件端接	Crimp	中心触点表面处理	6.00(0.236)

产品信息

类型	Contact,Socket	连接器性别	Female
系列	Power Triple Lock	制造商全称	PowerTripleLock
产品子类型	Contacts	应用细节	Wire-to-Wire
适用产品/相关产品	Wire to Wire Connector

环境参数

工作温度

+105°C
