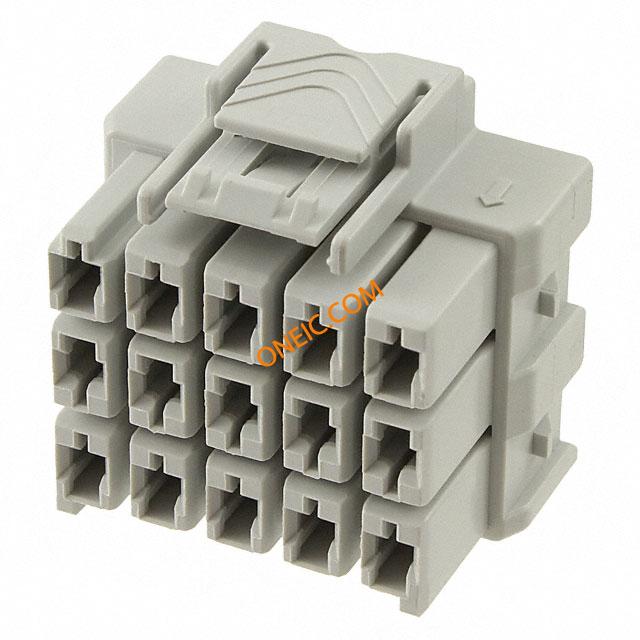

点击放大查看

5-1971876-7

制造商	TE Connectivity Ltd.
描述	Headers & Wire Housings 3x5 plug housing lgr Key A CONN PLUG HOUSING 15POS 6MM PTL 3X5 PLUG HSG HIGH TEMP KEY A LGR
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

其他名称

A118830

标准包装数量

850

合规参数

RoHS	RoHS Compliant	UL等级	获得认可
零件状态	E28476	标准编号	UL
UL阻燃等级	UL 94V-0	材料阻燃等级	UL 94V-0

电气参数

额定电压	600 VAC, 600 VDC	供电电压	600
中心频率	带有	连接器阻抗	压接
最大额定电流	20 A

机械参数

颜色	Natural	间距	6 mm
包装方式	Bulk	壳体颜色	灰色
排间距	8.1 mm	触头类型	Female Blade Socket
安装类型	Free Hanging (In-Line)	连接器类型	Plug
接触镀层	Tin	紧固类型	Latch Holder
安装样式	Panel	引脚数	15
排数	3	外壳材料（壳体）	插头
触头材料	Copper Alloy	壳体材料	Polybutylene Terephthalate (PBT)
面板安装类型	不带	端接样式	母端
触点数	15	接触件端接	Crimp
位数	15	兼容外壳尺寸（如TM-700等）	CPA, 母端外壳, 母端（插座）端子, 端子锁定片
典型触点布局	矩阵

产品信息

备注	Contacts Not Provided	系列	Power Triple Lock
钥匙类型	A	产品子类型	Wire Housings
输出配置	直式	应用细节	Wire-to-Board

环境参数

工作范围	不密封	测试温度	高温部件 - 非灼热丝
工作温度	- 55 C to + 150 C
