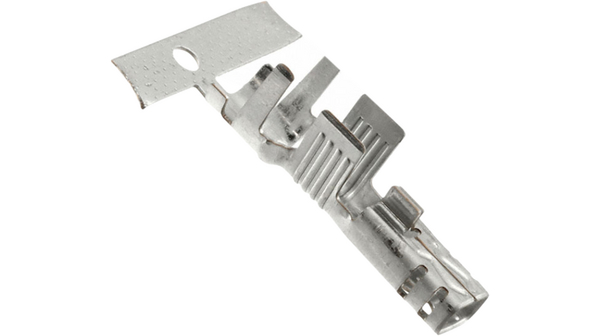

1971779-2
| 制造商 | |
| 描述 | Receptacle contact, 12 Awg Headers & Wire Housings 12 Awg Receptacle contact RECEPTACLE CONTACT, 12 AWG Power Triple Lock Tin Plated 12 AWG Crimp Socket Receptacle Contact Crimp contact, 20 A, 12 AWG, 1971779-2, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 12 AWG |
| 分类 |
商业参数
| 其他名称 | A117917TR | 标准包装规格 | 2,500 |
| 标准包装数量 | 10,000 | ||
合规参数
| RoHS | RoHS Compliant | 标准编号 | UL |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 8 A | ||
机械参数
| 镀层 | 预镀锡 | 包装方式 | Tape & Reel (TR) |
| 电缆类型 | 分离式导线 | 导线线规 | 12 |
| 触头类型 | Tab | 触点形状 | 直式 |
| 插针或插孔 | Female Blade Sockets | 电缆直径 | 3.85 |
| 连接器类型 | 母座 | 接触镀层 | Tin |
| 插入件材料 | 铜合金 | 触头材料 | Copper Alloy |
| 壳体材料 | 不带 | 端接排数 | 压接 |
| 绝缘高度 | 带有 | 端接样式 | 插座, 母端 |
| 第一触头极性 | Pin (Male) | 接触件端接 | Crimp |
| 横截面形状 | 3.3 mm² | 绝缘直径 | 3.85 – 4.25 mm [ .151 – .167 in ] |
| 第一连接器极性 | Female | 兼容外壳尺寸（如TM-700等） | 插头护套 |
| 接触件表面处理 - 配合 | 预镀锡 | 线规或范围 - AWG | 12 AWG |
| 外管直径（最大） | 4.25 | ||
产品信息
| 系列 | Power Triple Lock | 产品子类型 | Contacts |
| 连接方式 | Wire-Wire | 基础产品编号 | 1971779 |
| 其他规格 | 否 | 应用细节 | Wire-to-Wire |
| 适用产品/相关产品 | 三重锁扣式电源连接器 | ||
环境参数
| 工作温度 | - 55 C to + 105 C | ||
文档与媒体
相关型号
1-1971876-3
TE Connectivity
CONN HOUSING PLUG 9POS 6MM Headers & Wire Housings 3 x 3 PBT-A Plug Hsg 1-1971876-3 Conn Housing PL 9 POS 6mm Crimp ST Cable Mount CONNECTOR, HOUSING, PLUG, 9POS, 3ROW, 6MM CONNECTOR, HOUSING, PLUG, 9 WAY, PBT Conn;Rect;Plug;9Pos;3Row;PowerTripleLock;W-to-W;3X3;PBT;KeyA Male Housing Pitch6 mm Poles 3 x 3 Multi row / Free hanging/cable mount Power Triple Lock, 1-1971876-3, TE Connectivity TE Connectivity Power Triple Lock 系列 3 行 6mm 节距 9 路 直 公 电缆安装 压接连接器外壳 PTL 3X3 PLUG HSG STD TEMP KEY A NAT
1-1971876-4
TE Connectivity
CONN HOUSING PLUG 12POS 6MM Headers & Wire Housings 3 x 4 PBT-A Plug Hsg 1-1971876-4 Conn Housing PL 12 POS 6mm Crimp ST Cable Mount CONNECTOR, HOUSING, PLUG, 12POS, 3ROW, 6MM CONNECTOR, HOUSING, PLUG, 12 WAY, PBT Conn;Rect;Plug;12Pos;3Row;PowerTripleLock;W-to-W;3X4;PBT;KeyA Male Housing Pitch6 mm Poles 3 x 4 Multi row / Free hanging/cable mount Power Triple Lock, 1-1971876-4, TE Connectivity TE Connectivity Power Triple Lock 系列 3 行 6mm 节距 12 路 直 公 电缆安装 压接连接器外壳 PTL 3X4 PLUG HSG STD TEMP KEY A NAT
1-1971876-7
TE Connectivity
CONN HOUSING PLUG 15POS 6MM Headers & Wire Housings 3 x 5 PBT-A Plug Hsg 1-1971876-7 Conn Housing PL 15 POS 6mm Crimp ST Cable Mount CONNECTOR, HOUSING, PLUG, 15POS, 3ROW, 6MM CONNECTOR, HOUSING, PLUG, 15 WAY, PBT Conn;Rect;Plug;15Pos;3Row;PowerTripleLock;W-to-W;3X5;PBT;KeyA Male Housing Pitch6 mm Poles 3 x 5 Multi row / Free hanging/cable mount Power Triple Lock, 1-1971876-7, TE Connectivity TE Connectivity Power Triple Lock 系列 3 行 6mm 节距 15 路 直 公 电缆安装 压接连接器外壳 PTL 3X5 PLUG HSG STD TEMP KEY A NAT

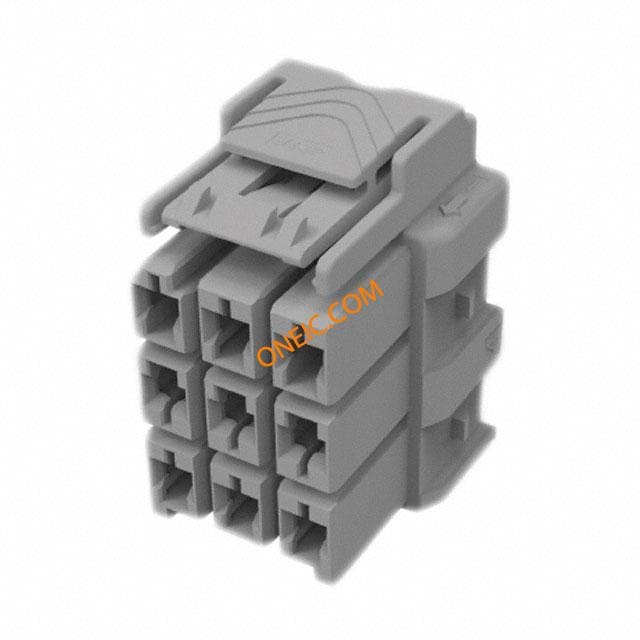

5-1971876-3
TE Connectivity
Headers & Wire Housings 3x3 plug housing lgr Key A CONN PLUG HOUSING 9POS 6MM PTL 3X3 PLUG HSG HIGH TEMP KEY A LGR

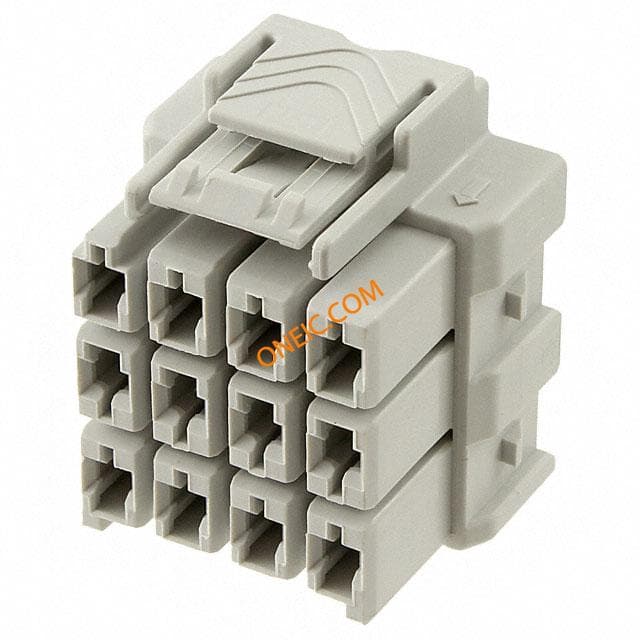

5-1971876-4
TE Connectivity
Headers & Wire Housings 3x4 plug housing lgr Key A CONN PLUG HOUSING 12POS 6MM PTL 3X4 PLUG HSG HIGH TEMP KEY A LGR

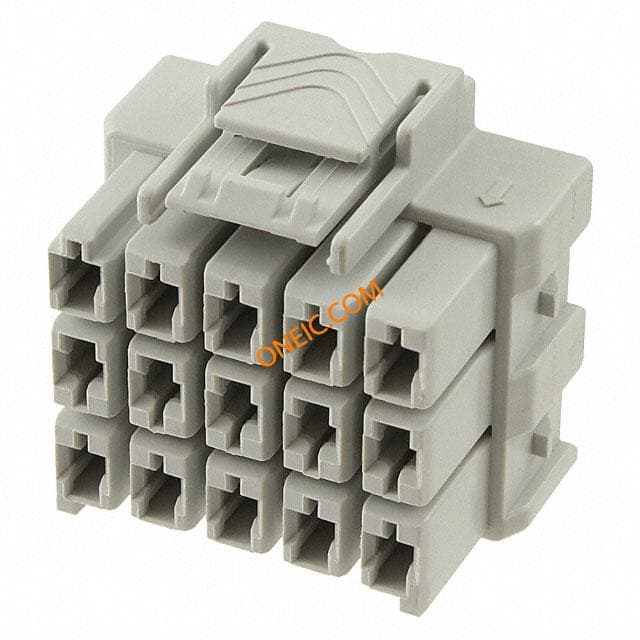

5-1971876-7
TE Connectivity
Headers & Wire Housings 3x5 plug housing lgr Key A CONN PLUG HOUSING 15POS 6MM PTL 3X5 PLUG HSG HIGH TEMP KEY A LGR
5-2232266-5
TE Connectivity
Headers & Wire Housings 2x5 plug dgr housing Key A CONN PLUG HOUSING 10POS 6MM PTL 2X5 PLUG HSG GLW WIRE KEY A DGR

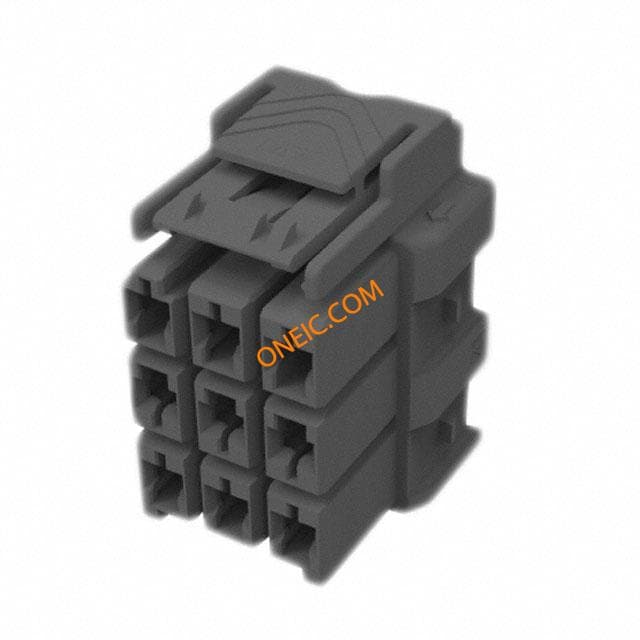

5-2232357-3
TE Connectivity
CONN PLUG HOUSING 9POS 6MM PTL 3X3 PLUG HSG GLW WIRE KEY A DGR

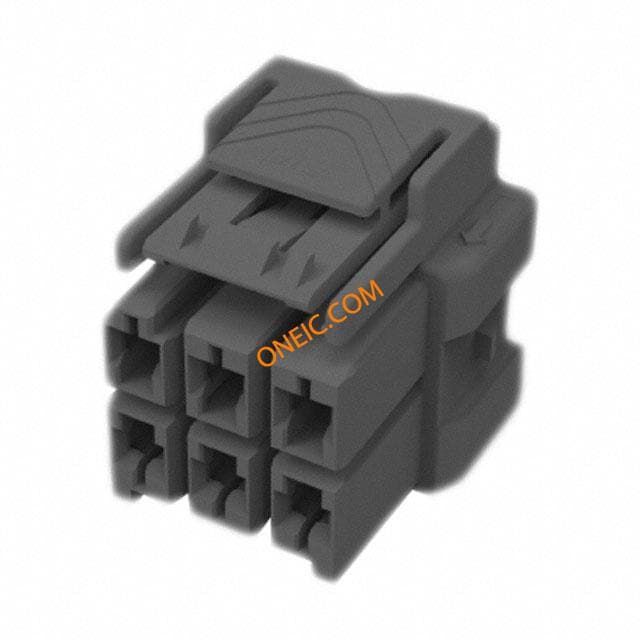

5-2232266-3
TE Connectivity
CONN PLUG HOUSING 6POS 6MM PTL 2X3 PLUG HSG GLW WIRE KEY A DGR

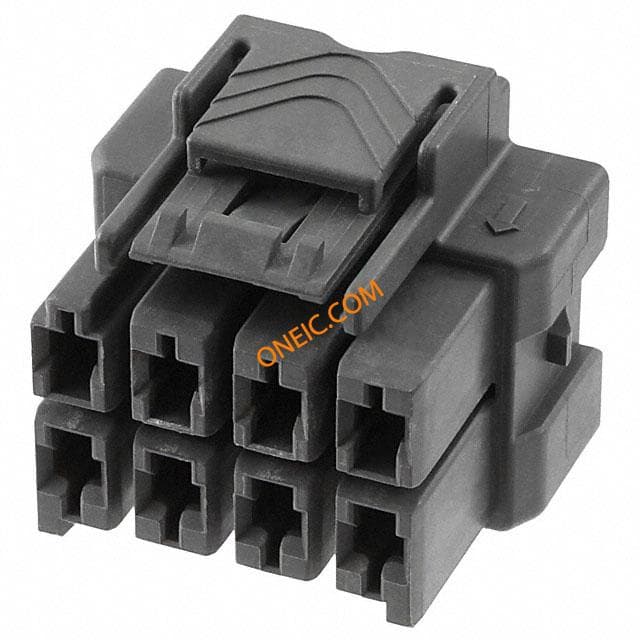

5-2232266-4
TE Connectivity
CONN PLUG HOUSING 8POS 6MM PTL 2X4 PLUG HSG GLW WIRE KEY A DGR
5-2232265-2
TE Connectivity
CONN PLUG HOUSING 2POS 6MM PTL 1X2 PLUG HSG GLW WIRE KEY A DGR

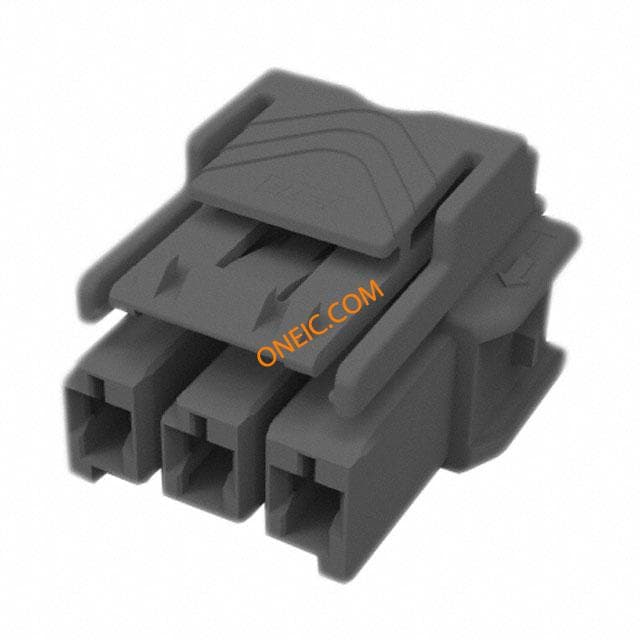

5-2232265-3
TE Connectivity
CONN PLUG HOUSING 3POS 6MM PTL 1X3 PLUG HSG GLW WIRE KEY A DGR
5-2232265-4
TE Connectivity
CONN PLUG HOUSING 4POS 6MM PTL 1X4 PLUG HSG GLW WIRE KEY A DGR
5-2232265-7
TE Connectivity
CONN PLUG HOUSING 5POS 6MM PTL 1X5 PLUG HSG GLW WIRE KEY A DGR

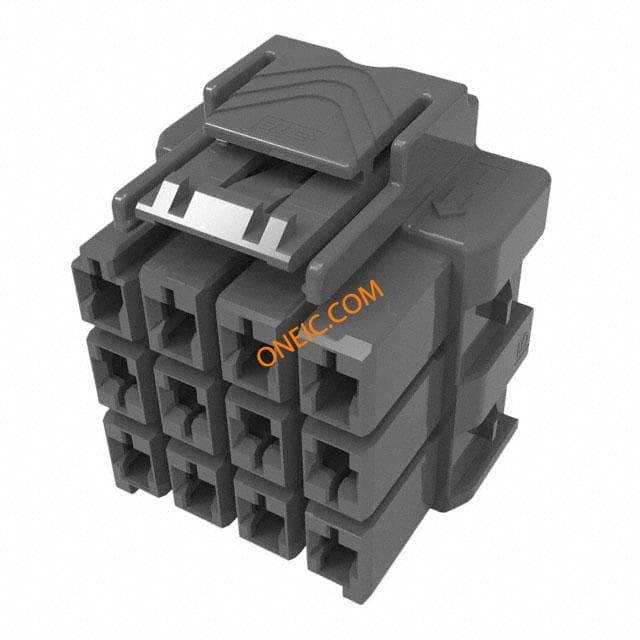

5-2232357-4
TE Connectivity
CONN PLUG HOUSING 12POS 6MM PTL 3X4 PLUG HSG GLW WIRE KEY A DGR

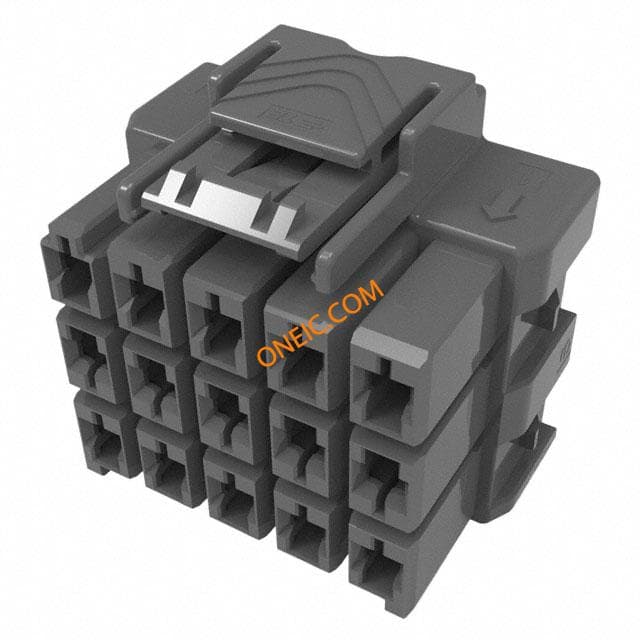

5-2232357-7
TE Connectivity
CONN PLUG HOUSING 15POS 6MM PTL 3X5 PLUG HSG GLW WIRE KEY A DGR

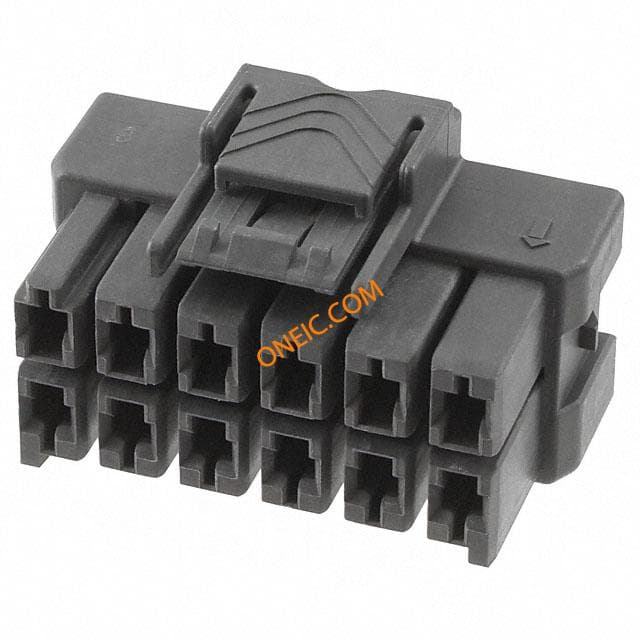

5-2232266-6
