点击放大查看

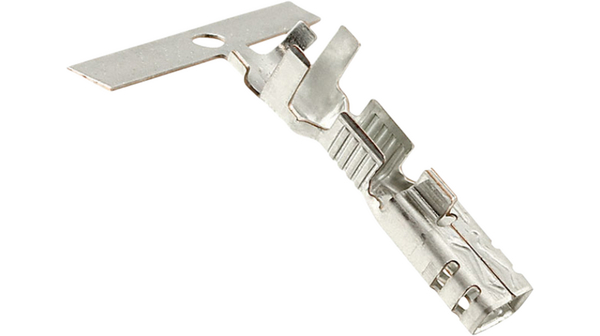

1971783-2

制造商	TE Connectivity Ltd.
描述	Receptacle contact, 16 20 Awg Headers & Wire Housings 16 20 Awg Receptacle contact RECEPTACLE CONTACT, 16 20 AWG Power Triple Lock Tin Plated 16 - 20 AWG Crimp Socket Receptacle Crimp contact, 15 A, 16...20 AWG, 1971783-2, TE Connectivity TE Connectivity Power Triple Lock 系列母压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 16-19 AWG, 2X22
分类	分立半导体元件大功率分立半导体模块IGBT模块

对参数有疑问？问 AI 助手

商业参数

其他名称	A117921TR	标准包装规格	4,000
标准包装数量	18,500

合规参数

RoHS	RoHS Compliant	标准编号	UL
材料阻燃等级	UL 94V-0

电气参数

额定电压	600 V	极数	1 x 2
供电电压	600	最大额定电流	8 A

机械参数

镀层	预镀锡	腔体A	9
包装方式	Tape & Reel (TR)	电缆类型	分离式导线
导线线规	14	触头类型	Tab
触点形状	直式	插针或插孔	Female Blade Sockets
电缆直径	2.0	连接器类型	母座
接触镀层	Tin	插入件材料	铜合金
触头材料	Copper Alloy	壳体材料	不带
端接排数	压接	绝缘高度	带有
端接样式	插座, 母端	线规 - 端部	16
第一触头极性	Pin (Male)	接触件端接	Crimp
横截面形状	0.56...1.27 mm²	绝缘直径	2 – 3.3 mm [ .079 – .13 in ]
第一连接器极性	Female	兼容外壳尺寸（如TM-700等）	插头护套
接触件表面处理 - 配合	预镀锡	线规或范围 - AWG	16...20 AWG
外管直径（最大）	3.3

产品信息

系列	Power Triple Lock	产品子类型	Contacts
连接方式	Wire-Wire	基础产品编号	1971783
其他规格	否	应用细节	Wire-to-Wire
适用产品/相关产品	三重锁扣式电源连接器

环境参数

工作温度

- 55 C to + 105 C

文档与媒体

PDF 文档

ENG_DS_9-1773465-1PTLQRG_0413.pdf
