点击放大查看

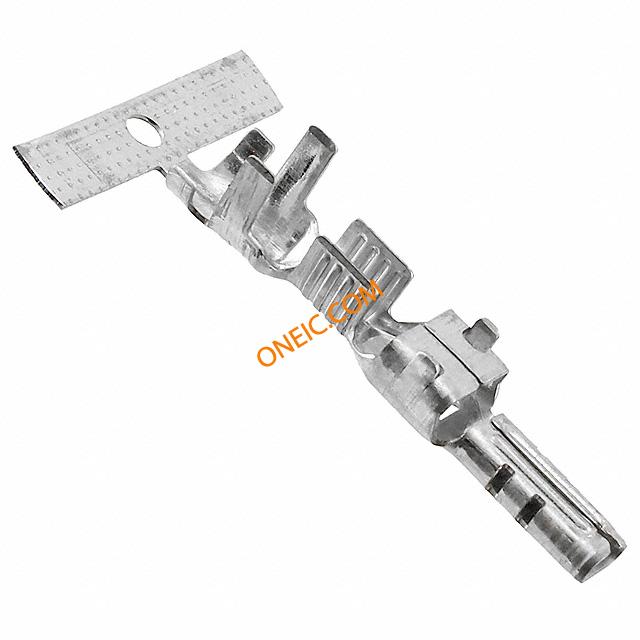

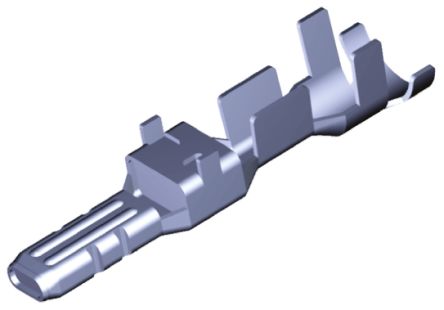

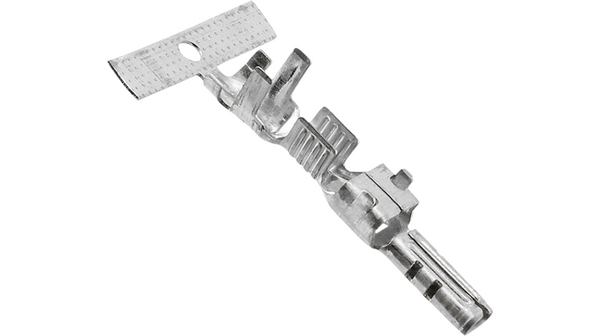

1971784-1

制造商	TE Connectivity Ltd.
描述	CONN TAB 20-16AWG Triple Lock tab Contact 16-20 AWG Headers & Wire Housings 16-20 AWG Brass Pin Contact Terminal 1971784-1 Contact SKT Crimp ST Cable Mount CONTACT, PIN, 20-16AWG, CRIMP CONTACT, PIN, 20-16 AWG, CRIMP Contact;Pin;Crimp;20-16AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 12 A, 16...20 AWG, 1971784-1, TE Connectivity TE Connectivity Power Triple Lock 系列公压接触点, 压接, 镀锡触点 PTL TAB CONTACT, 16-19 AWG, 2X22 AWG
分类	连接器解决方案接触件接触件（通用）

对参数有疑问？问 AI 助手

商业参数

其他名称

A115827TR

标准包装数量

3,700

合规参数

RoHS	Lead free / RoHS Compliant	标准	RoHS/ELV
海关税号	85366910

电气参数

额定电压	600 V	最大额定电流	10 A
最大持续工作电压（MCOV）	600VAC/VDC

机械参数

重量	0	包装方式	Tape & Reel (TR)
导线线规	16-20 AWG	端接方式	Crimp
插针或插孔	Tab	接触镀层	Tin
触头材料	Copper Alloy	主要材料	Rectangular
端接样式	Crimp	第一触头极性	Pin (Male)
接触件端接	Crimp	中心触点表面处理	6.00(0.236)
线规或范围 - AWG	:20AWG

产品信息

类型	Contact,Pin	连接器性别	Male
系列	Power Triple Lock	制造商全称	PowerTripleLock
产品子类型	Contacts	应用细节	Wire-to-Wire
适用产品/相关产品	Wire to Wire Connector

环境参数

工作温度

+105°C
