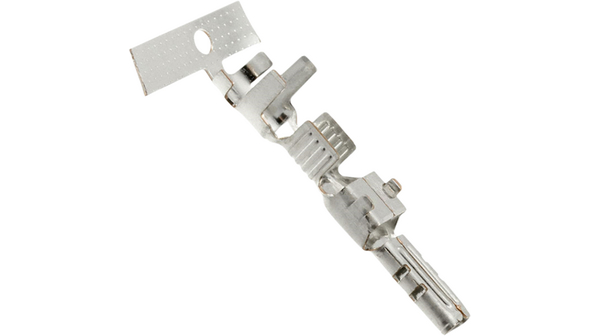

1971784-2

制造商	TE Connectivity Ltd.
描述	Tab contact, 16 20 Awg Headers & Wire Housings 16 20 Awg Tab contact TAB CONTACT, 16 20 AWG Crimp contact, 15 A, 16...20 AWG, 1971784-2, TE Connectivity TE Connectivity Power Triple Lock 系列公压接接线端子, 压接, 镀锡触点 PTL TAB CONTACT, 16-19 AWG, 2X22 AWG
分类	分立半导体元件大功率分立半导体模块IGBT模块

对参数有疑问？问 AI 助手

商业参数

其他名称	A117922TR	标准包装规格	4,000
标准包装数量	18,500

合规参数

RoHS	RoHS Compliant	标准编号	UL
材料阻燃等级	UL 94V-0

电气参数

额定电压	600 V	极数	1 x 2
供电电压	600	最大额定电流	8 A

机械参数

镀层	预镀锡	腔体A	9
包装方式	Tape & Reel (TR)	电缆类型	分离式导线
导线线规	16-20	触头类型	Tab
触点形状	直式	插针或插孔	Tab
电缆直径	2.0	连接器类型	公插
接触镀层	Tin	插入件材料	铜合金
触头材料	Copper Alloy	壳体材料	不带
端接排数	压接	绝缘高度	带有
端接样式	公端, 插针	线规 - 端部	16
第一触头极性	Pin (Male)	接触件端接	Crimp
横截面形状	0.56...1.27 mm²	绝缘直径	2 – 3.3 mm [ .079 – .13 in ]
第一连接器极性	Male	兼容外壳尺寸（如TM-700等）	帽护套
接触件表面处理 - 配合	预镀锡	线规或范围 - AWG	16...20 AWG
外管直径（最大）	3.3

产品信息

系列	Power Triple Lock	产品子类型	Contacts
连接方式	Wire-Wire	基础产品编号	1971784
其他规格	否	应用细节	Wire-to-Wire
适用产品/相关产品	三重锁扣式电源连接器

环境参数

工作温度

- 55 C to + 105 C

文档与媒体

PDF 文档

ENG_DS_9-1773465-1PTLQRG_0413.pdf
