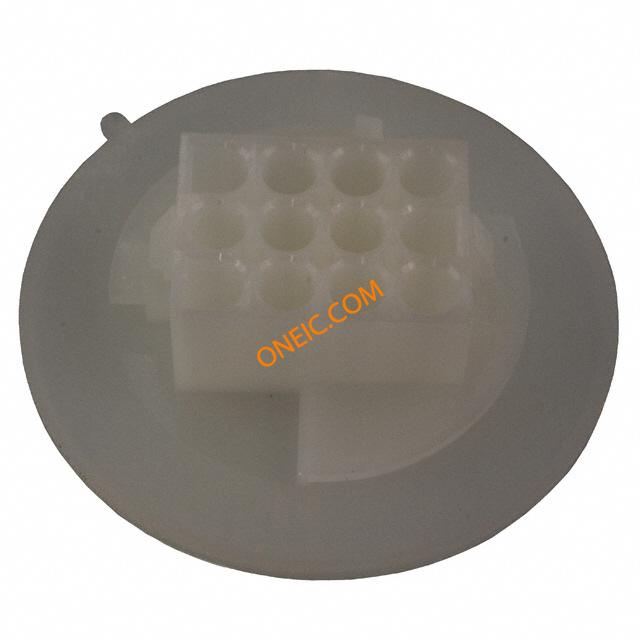

794716-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 12 POS 6.35mm Crimp ST Panel Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP RCPT 12POS UMNL FLANGE Power to the Board FLANGED CAP HSG 12P UL94V-2 Housing;UniversalMATE-N-LOK;12;19;600;Receptacle(Cap);Nylon;Natural 12P UMNL CAP HSG NATL,PAN MNT |
| 分类 |
商业参数
| 其他名称 | A30560 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 零件状态 | E28476 | UL阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 输出数量 | 12 | 最大额定电流 | 19 A |
| 连接器类型 - 电压输入 | UniversalMATE-N-LOK | ||
机械参数
| 颜色 | Natural | 间距 | 6.35 mm |
| 密封型 | Not Sealed | 锁定类型 | TwistandLock |
| 包装方式 | Bulk | 导线线规 | 10-30 AWG |
| 排间距 | 0.250" (6.35mm) | 外壳样式 | Receptacle(Cap) |
| 本体尺寸 | .76 – 2.29 mm [ .03 – .09 in ] | 触头类型 | Male or Female |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | Without | 紧固类型 | Locking Ramp |
| 安装样式 | Panel Mount, Free Hanging | 排数 | 4 |
| 封装形式 | Receptacle | 壳体材料 | Polyamide (PA) |
| 包装数量 | 1 | 面板安装类型 | 带有 |
| 主要材料 | Interconnect | 端接样式 | Quick Connect |
| 第一触头极性 | Socket (Female) | 触点数 | 12 |
| 接触件端接 | Crimp | 位数 | 12 |
| 兼容外壳尺寸（如TM-700等） | 通用 MATE-N-LOK 插头 | 典型触点布局 | 矩阵 |
| 第一连接器安装类型 | Panel | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 制造商全称 | MATE-N-LOK |
| 产品子类型 | Housings | 装配配置 | Without |
| 矩阵（列×行） | 0.250in.x0.250in. | ||
