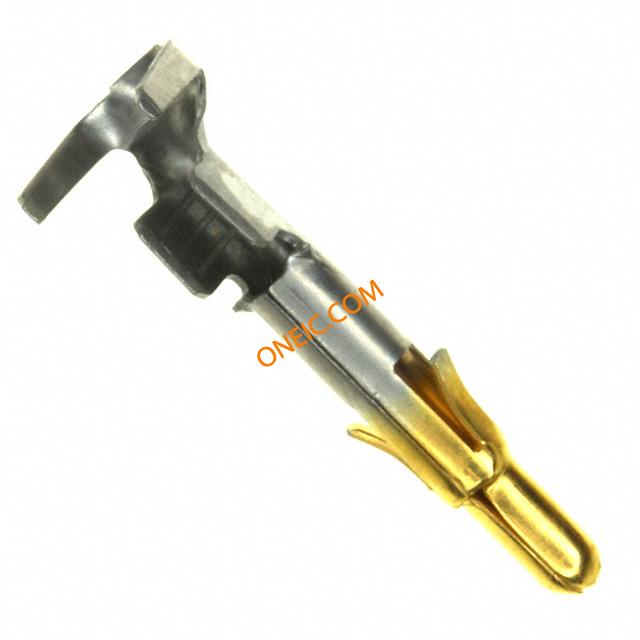

350552-6

点击放大查看

350552-6

制造商
TE Connectivity Ltd.
描述Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Mate-n-Lok,Contact,pin,0.50-2.00mm² Pin & Socket Connectors PIN 20-14 AWG AU/PHBZ L/P Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Mate-n-Lok,Contact,pin,0.50-2.00mm² TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀金镀镍触点 UMNL PIN 20-14 AU/PHBZ L/P
分类
连接器解决方案接触件接触件（通用）

商业参数

产品类别Pin & Socket Connectors标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
UL档案号E28476CSA档案号LR 16455
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-0认证机构标志是

电气参数

供电电压600接触电阻3.5mΩ
最大额定电流19连接器类型 - 电压输入实芯

机械参数

镀层金包装方式Bulk
电缆类型分离式导线导线线规14-20 AWG
端接方式Crimp触头类型Power
插针或插孔Pin电缆直径2mm²
连接器类型Connector Power接触镀层Gold Over Nickel
壳体镀层Nickel插入件材料磷青铜
触头材料Brass包装数量1000
端接排数压接端接样式插针
适用端子尺寸No接触件端接Crimp
绝缘直径3.3 – 5.08 mm [ .13 – .2 in ]兼容外壳尺寸（如TM-700等）通用 MATE-N-LOK 插头或插座护套
触点镀层镀金接触件表面处理 - 配合金
法兰上方插针尺寸2.13 mm [ .084 in ]接触镀层厚度30µin (0.76µm)
线规或范围 - AWG14AWG护套（绝缘）厚度1.27 µm [ 50 µin ]

产品信息

连接器性别PIN系列MATE-N-LOK
产品子类型Receptacle Housings应用细节Power
适用产品/相关产品Power-to-Board

环境参数

测试温度标准件 - 非灼热丝工作温度-55 – 105 °C [ -67 – 221 °F ]
可用温度范围-55to+105°C结工作温度105°C
