点击放大查看
1-480702-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Power to the Board PLUG HOUSE 4 POS BLUE UL94V-2 .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 4POS UNIV-M-N-L BLUE .250" Centerline, 600 V, 19 - 36 A max Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 04P UMNL PLUG HSG BLU |
| 分类 |
商业参数
| 标准包装规格 | 1 | 产品类别 | Power to the Board |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-2 | 认证机构标志 | 是 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 19 A | ||
机械参数
| 颜色 | Blue | 间距 | 0.250" (6.35mm) |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 壳体颜色 | 蓝色 | 触头类型 | Male or Female |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug |
| 接触镀层 | Without | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 排数 | 1 |
| 封装形式 | Plug | 壳体材料 | Polyamide (PA) |
| 包装数量 | 1 | 端接样式 | Wire |
| 第一触头极性 | Pin (Male) | 触点数 | 4 |
| 接触件端接 | Crimp | 位数 | 4 |
| 兼容外壳尺寸（如TM-700等） | 适当的通用 MATE-N-LOK 母端或公端 | 典型触点布局 | 直插式 |
产品信息
| 备注 | Contacts Not Provided | 产品子类型 | Housings |
| 装配配置 | Without | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 125 °C [ -67 – 257 °F ] |
相关型号

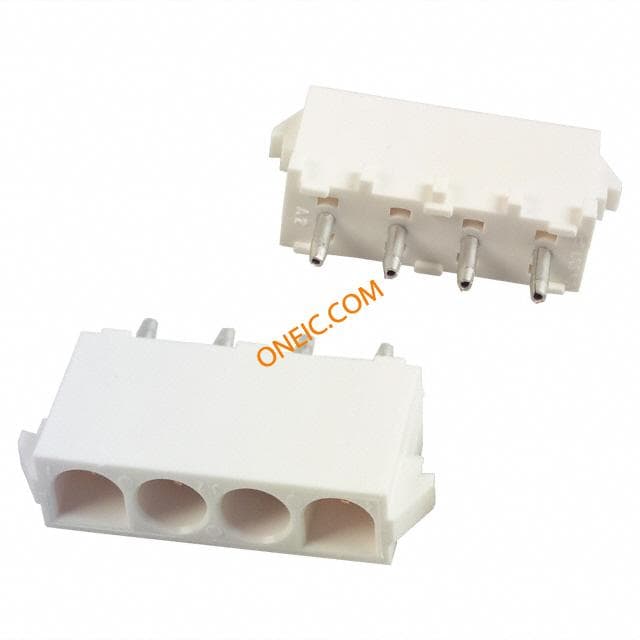

350761-3
te connectivity / amp
Conn Power SKT 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 4POS VERT .250 AU Conn Power SKT 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP

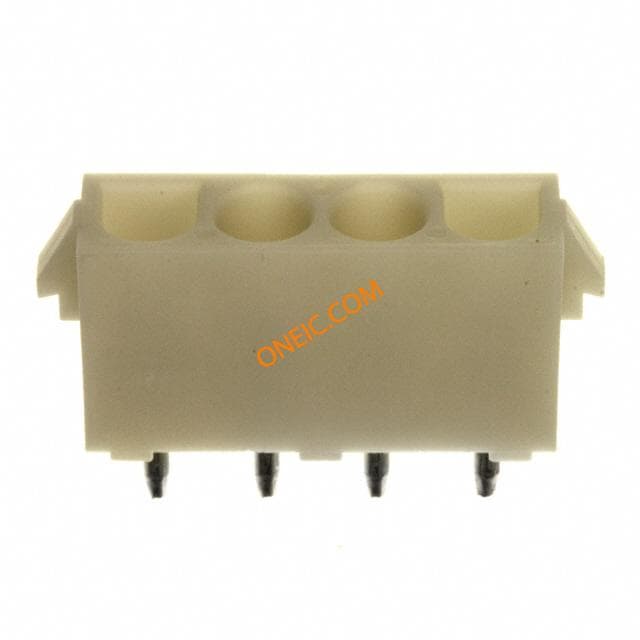

350833-4
te connectivity / amp
Conn Power SKT 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 4POS VERT .250 GOLD Pin & Socket Connectors 4P HDR ASSY PC 94V0 Conn Power SKT 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 04P UMNL HDR ASSY PC 94VO LF
350792-2
te connectivity / amp
Conn Power HDR 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 4POS VERT .250 AU Pin & Socket Connectors HEADER 4 POS Conn Power HDR 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADERVERT4WAYPIN TE Connectivity MATE-N-LOK 系列 白色 4P 工业电源 插头 , 19A额定电流, 600 V 交流
2-480703-0
te connectivity / amp
04P UMNL CAP HSG NATL Power to the Board 04P CAP HSG NAT CONN CAP 4POS UNIV-M-N-L NATURAL
350988-4
te connectivity / amp
Conn Power SKT 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 4POS VERT .250 TIN Power to the Board PCB SOCKET HDR 4P Conn Power SKT 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Universal MATE-N-LOK 4 Position Through-Hole Single Row Straight Header 04P UMNL HDR ASSY LNG/TL
350792-1
te connectivity / amp
Conn Power HDR 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 4POS VERT .250 TIN MATE-N-LOK 4 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors 4 POS STD TAIL PIN Conn Power HDR 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, VERTICAL, SINGLE ROW, 4 WAY HEADERASSEMBLY,PIN,UNIVERSALMATE-N-LOK,4POSITION,PCB,POSITIVELOCK Socket; wire-wire/PCB; male; 6.35mm; PIN:4; 19A; UL94V-0; THT TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 4路 直 PCB 针座, 焊接端接, 19A , 通孔 04P UMML PIN HDR ASSY 94VO

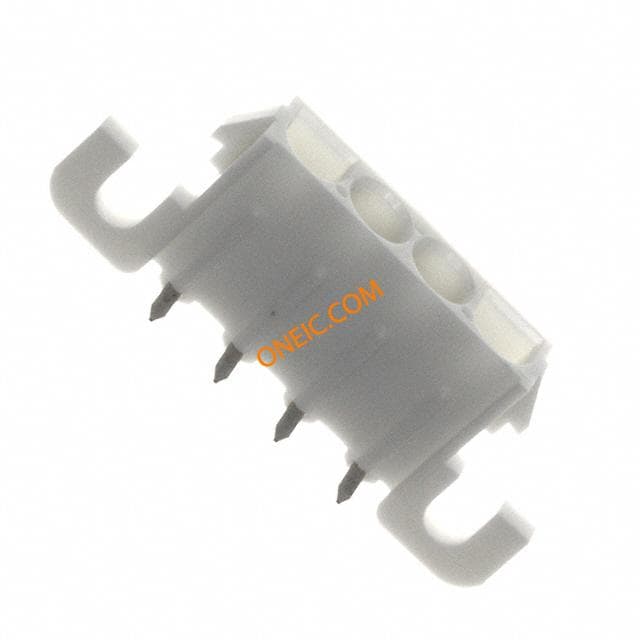

3-643230-0
